PLC-30-27

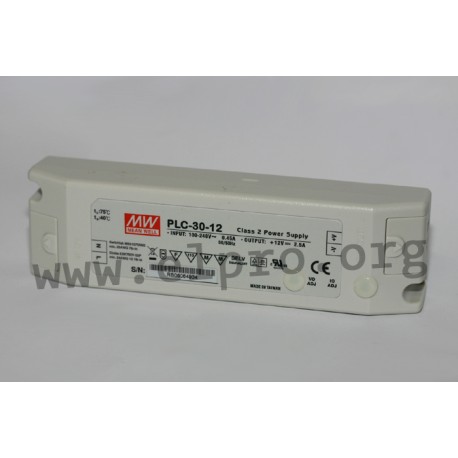

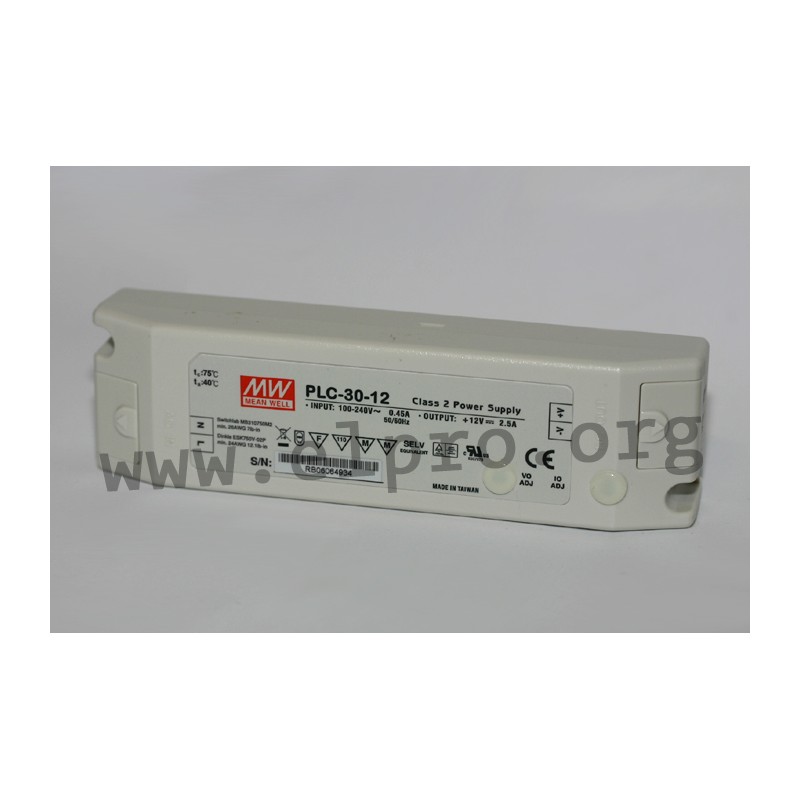

Mean Well LED driver series PLC-30

LED drivers in a plastic housing with a screw terminal, a universal input and 30W. These devices are not dimmable, have a built-in active PFC function and comply with EN61000-3-2 Class C, EN55015, EN61347-1 as well as EN61347-2-13. They are protected against overload (auto recovery), short circuit as well as overvoltage and are suitable for LED lighting applications. We offer the following types of this Mean Well series: PLC-30-9, PLC-30-12, PLC-30-15, PLC-30-20, PLC-30-24, PLC-30-27, PLC-30-36 and PLC-30-48.

  • single output
  • output: 29,7 to 30,24W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 35A
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -30 to +50°C

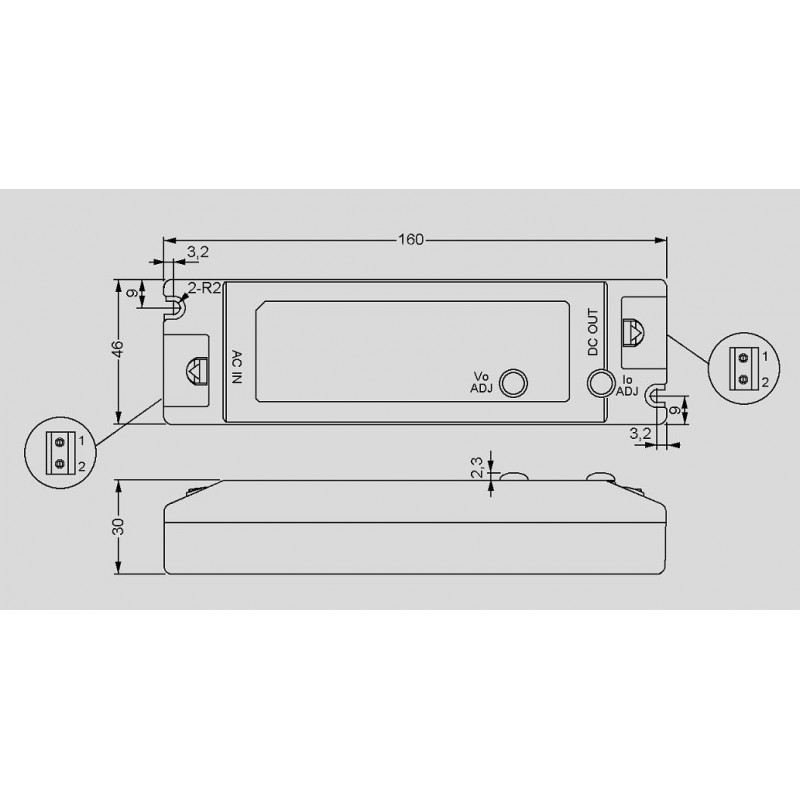

  • dimensions: 160x46x30mm
  • weight: 200g
PLC-30-27

PLC-30-27

35419 PLC-30-27 PLC-30-27 4711287460253 Mean Well LED driver series PLC-30. LED drivers in a plastic housing with a screw terminal, a universal input and 30W. These devices are not dimmable, have a built-in active PFC function and comply with EN61000-3-2 Class C, EN55015, EN61347-1 as well as EN61347-2-13. They are protected against overload (auto recovery), short circuit as well as overvoltage and are suitable for LED lighting applications. We offer the following types of this Mean Well series: PLC-30-9, PLC-30-12, PLC-30-15, PLC-30-20, PLC-30-24, PLC-30-27, PLC-30-36 and PLC-30-48. single output output: 29,7 to 30,24W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 35A withstand voltage I/P-O/P: 3750V AC operating temperature: -30 to +50°C dimensions: 160x46x30mm weight: 200g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name PLC-30-27
GTIN 4711287460253
Output voltage [V] 27
Phase 2 phase
Output current adjustment [A] 0,84...1,1536
Ripple [Vp-p] 2,3
Efficiency [%] 84,5
Output voltage tolerance: [%] 10
Output power [W] 30,24
Output voltage adjustment [V] 25,65...29,7
Data Sheet

Unit price

25,69 €

Stock: 32
