PLC-100-48

Mean Well LED driver series PLC-100

LED drivers in a plastic housing with a universal input, 100W and a constant current / constant voltage (mixed mode). These devices are suitable for LED lighting applications and comply with UL1310 class 2, EN61000-3-2 class C, EN55015, EN61347-1 as well as EN61347-2-13. They are protected against overload (auto recovery), overvoltage as well as short circuit and have a built-in active PFC function. We offer the following types of this Mean Well series: PLC-100-12, PLC-100-15, PLC-100-20, PLC-100-24, PLC-100-27, PLC-100-36 and PLC-100-48.

  • single output
  • output: 60 to 96W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 40A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +50°C

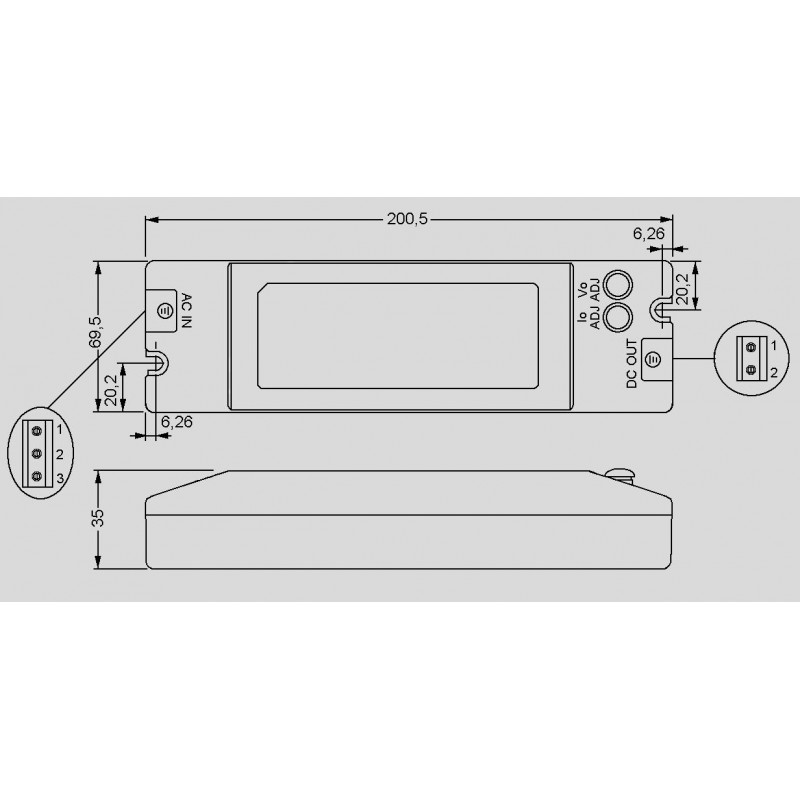

  • dimensions: 200,5x69,5x35mm
  • weight: 520g
Meanwell PLC-100 series

PLC-100-48

35444 PLC-100-48 PLC-100-48 4711287460482 Mean Well LED driver series PLC-100. LED drivers in a plastic housing with a universal input, 100W and a constant current / constant voltage (mixed mode). These devices are suitable for LED lighting applications and comply with UL1310 class 2, EN61000-3-2 class C, EN55015, EN61347-1 as well as EN61347-2-13. They are protected against overload (auto recovery), overvoltage as well as short circuit and have a built-in active PFC function. We offer the following types of this Mean Well series: PLC-100-12, PLC-100-15, PLC-100-20, PLC-100-24, PLC-100-27, PLC-100-36 and PLC-100-48. single output output: 60 to 96W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 40A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +50°C dimensions: 200,5x69,5x35mm weight: 520g

Specifications

manufacturer
Manufacturer's name PLC-100-48
GTIN 4711287460482
Output voltage [V] 48
Phase 2 phase
Output current adjustment [A] 1,5...2
Efficiency [%] 88,5
Output voltage tolerance: [%] 2
Output power [W] 96
Output voltage adjustment [V] 40,8...48
Ripple [mV] 200
Data Sheet

Unit price

35,89 €

Volume discounts

Quantity Unit price
50 + 34,69 €

Stock: 33
Further delivery:
CW 16/2025
