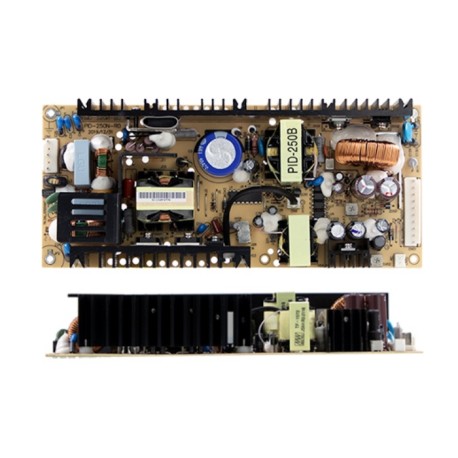

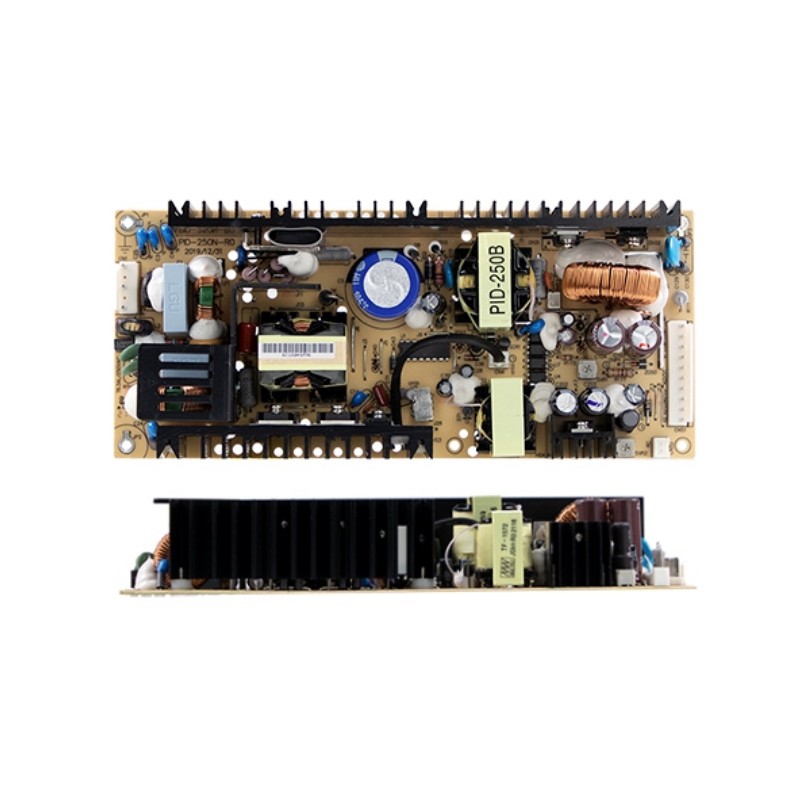

PID-250B

Mean Well power supply series PID-250

Open frame switching power supplies with 250W, two output channels, a universal input and pin strips. These devices have a built-in active PFC function and are protected against overload (auto recovery), short circuit as well as overvoltage. They have a fanless design and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: PID-250B, PID-250C and PID-250D.

  • dual output
  • output: 205 to 251,8W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 58A
  • leakage current: <3,5mA
  • overload protection: 105 to 170% (CH1) / 101 to 150% (CH2)
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -20 to +70°C
  • weight: 740g
PID-250B, Mean Well switching power supplies, 250W, dual output, open frame (PCB), PID-250 series

PID-250B

244983 PID-250B PID-250B 4711287426181 Mean Well power supply series PID-250. Open frame switching power supplies with 250W, two output channels, a universal input and pin strips. These devices have a built-in active PFC function and are protected against overload (auto recovery), short circuit as well as overvoltage. They have a fanless design and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: PID-250B, PID-250C and PID-250D. dual output output: 205 to 251,8W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 58A leakage current: &lt;3,5mA overload protection: 105 to 170% (CH1) / 101 to 150% (CH2) withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -20 to +70°C weight: 740g

Specifications

manufacturer
Manufacturer's name PID-250B
GTIN 4711287426181
Output voltage [V] 24/5
Efficiency [%] 86
Output current [A] 9,4/5
Output voltage tolerance: [%] 2
Output power [W] 250,6
Ripple [mVp-p] 150/50
Data Sheet

Unit price

56,59 €

Stock: 0
Further delivery:
CW 12/2025
