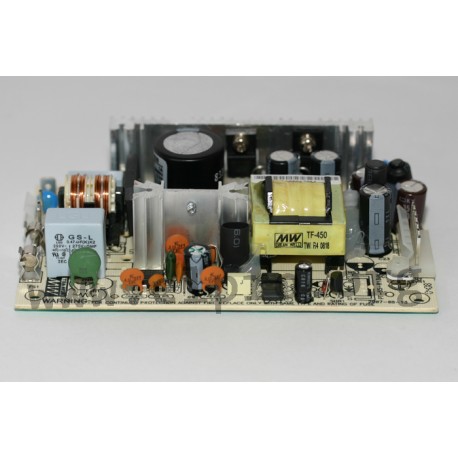

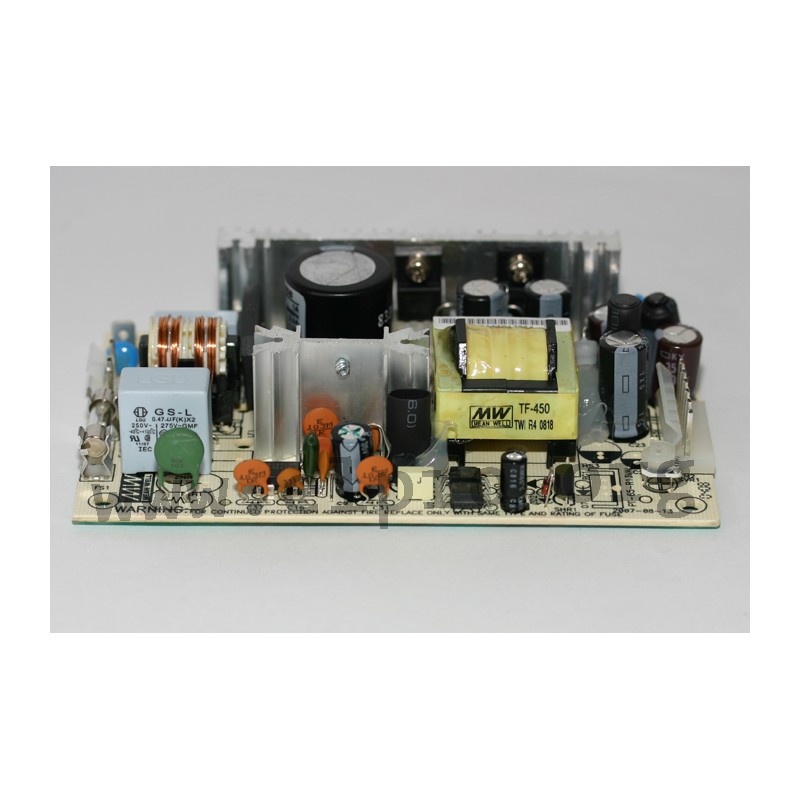

PSAI 45W 5V 24V

Mean Well power supply series PD-45

Open frame type switching power supplies with 45W and a universal input. These devices have a pin strip connection for nylon-crimp terminals and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fixed switching frequency and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: PD-45A and PD-45B.

  • dual output
  • output: 40 to 44,8W
  • input voltage: 90 to 264V AC (47 to 440Hz), 127 to 370V DC
  • maximal input inrush current: 30A
  • leakage current: <0,75mA
  • output voltage adjustment channel 1: 4,75 to 5,5V
  • overload protection: 53 to 75W
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -10 to +60°C
  • weight: 200g
Meanwell PD-45 series

PSAI 45W 5V 24V

26670 PSAI 45W 5V 24V PD-45B PD-45B Mean Well power supply series PD-45. Open frame type switching power supplies with 45W and a universal input. These devices have a pin strip connection for nylon-crimp terminals and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fixed switching frequency and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: PD-45A and PD-45B. dual output output: 40 to 44,8W input voltage: 90 to 264V AC (47 to 440Hz), 127 to 370V DC maximal input inrush current: 30A leakage current: &lt;0,75mA output voltage adjustment channel 1: 4,75 to 5,5V overload protection: 53 to 75W withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -10 to +60°C weight: 200g

Specifications

manufacturer
Manufacturer's name PD-45B
Output voltage [V] 5/24
Phase 2 phase
Efficiency [%] 78
Output current range [A] 0,4...5/0,2...1,8
Output voltage tolerance: [%] ±4/±7
Output rated current [A] 3,2/1,2
Output power [W] 44,8
Output voltage adjustment [V] 4,75...5,5
Ripple [mV] 50/150
Data Sheet

Unit price

13,09 €

Volume discounts

Quantity Unit price
50 + 12,19 €

Stock: 129
Further delivery:
CW 16/2025
