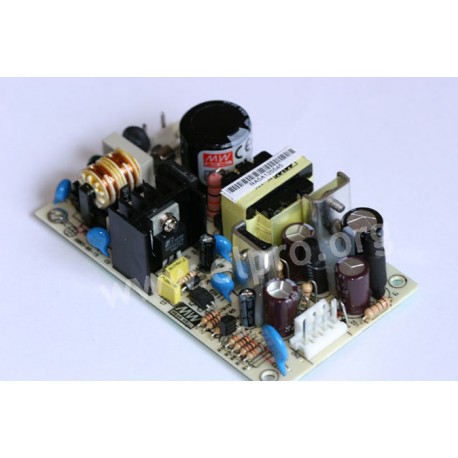

PSAI 24W +15V -15V

Mean Well power supply series PD-25

Open frame type switching power supplies with 25W, a universal input and a contact pin for nylon-crimp terminals. These devices have a fanless design and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a high reliability and comply with EN60950-1 as well as EN55022 class B. We offer the following types of this Mean Well series: PD-25A, PD-25B, PD-2505, PD-2512 and PD-2515.

  • dual output
  • output: 24 to 25,2W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 32A
  • leakage current: <0,5mA
  • overload protection: >105%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -10 to +60°C
  • weight: 130g
PSAI 24W +15V -15V

PSAI 24W +15V -15V

17872 PSAI 24W +15V -15V PD-2515 PD-2515 Mean Well power supply series PD-25. Open frame type switching power supplies with 25W, a universal input and a contact pin for nylon-crimp terminals. These devices have a fanless design and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a high reliability and comply with EN60950-1 as well as EN55022 class B. We offer the following types of this Mean Well series: PD-25A, PD-25B, PD-2505, PD-2512 and PD-2515. dual output output: 24 to 25,2W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 32A leakage current: &lt;0,5mA overload protection: &gt;105% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -10 to +60°C weight: 130g

Specifications

manufacturer
Manufacturer's name PD-2515
Output voltage [V] 15/-15
Phase 2 phase
Efficiency [%] 75
Output current range [A] 0,1...1/0,1...1
Output voltage tolerance: [%] ±4/± 4
Output rated current [A] 0,8/0,8
Output power [W] 24
Ripple [mV] 50/50
Data Sheet
