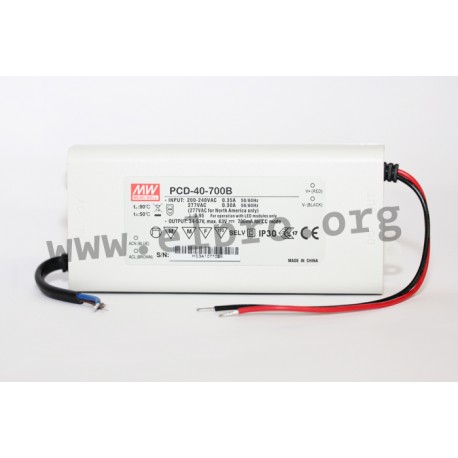

PCD-40-1750B

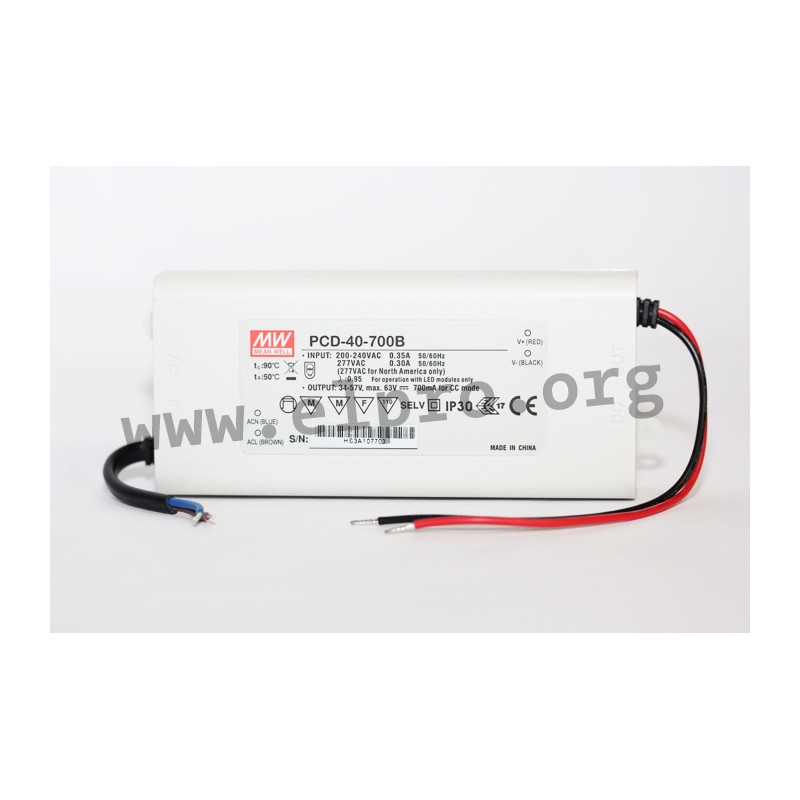

Mean Well LED driver series PCD-40

LED drivers in a plastic housing (IP42) with AC dimming, 40W and a stranded wire connection. These devices are suitable for phase control dimmers / reverse phase control dimmers as well as for LED lighting applications and comply with EN61000-3-2, class C, EN55015, EN61347-1 as well as EN61347-2-13. They are protected against overvoltage, short circuit as well as overheat and have a built-in active PFC function. We offer the following types of this Mean Well series: PCD-40-350B, PCD-40-500B, PCD-40-700B, PCD-40-1050B, PCD-40-1400B and PCD-40-1750B.

  • single output
  • output: 37,8 to 40,6W
  • input voltage: 180 to 295V AC (47 to 63Hz)
  • maximal input inrush current: 11A
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -30 to +50°C

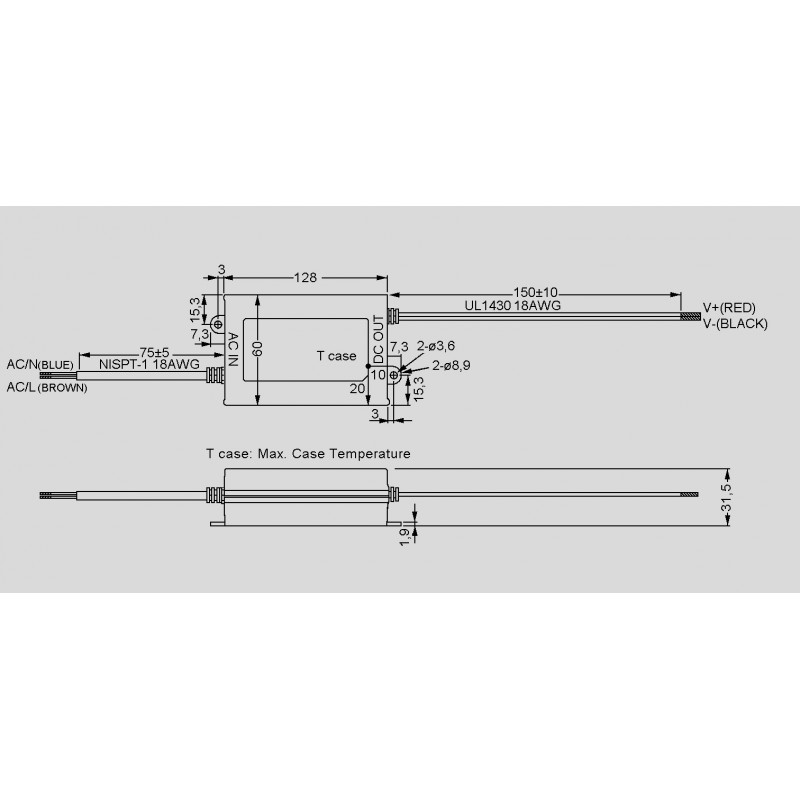

  • dimensions: 128x60x31,5mm
  • weight: 230g
PCD-40-1750B

PCD-40-1750B

41279 PCD-40-1750B PCD-40-1750B 4711287458250 Mean Well LED driver series PCD-40. LED drivers in a plastic housing (IP42) with AC dimming, 40W and a stranded wire connection. These devices are suitable for phase control dimmers / reverse phase control dimmers as well as for LED lighting applications and comply with EN61000-3-2, class C, EN55015, EN61347-1 as well as EN61347-2-13. They are protected against overvoltage, short circuit as well as overheat and have a built-in active PFC function. We offer the following types of this Mean Well series: PCD-40-350B, PCD-40-500B, PCD-40-700B, PCD-40-1050B, PCD-40-1400B and PCD-40-1750B. single output output: 37,8 to 40,6W input voltage: 180 to 295V AC (47 to 63Hz) maximal input inrush current: 11A withstand voltage I/P-O/P: 3750V AC operating temperature: -30 to +50°C dimensions: 128x60x31,5mm weight: 230g

Specifications

manufacturer
Manufacturer's name PCD-40-1750B
GTIN 4711287458250
Output voltage [V] 13...23
Phase 2 phase
Output current range [mA] 1750
Ripple [Vp-p] 2,4
Efficiency [%] 85
Output power [W] 40,25
Data Sheet

Unit price

17,79 €

Volume discounts

Quantity Unit price
50 + 16,59 €

Stock: 170
Further delivery:
CW 16/2025
