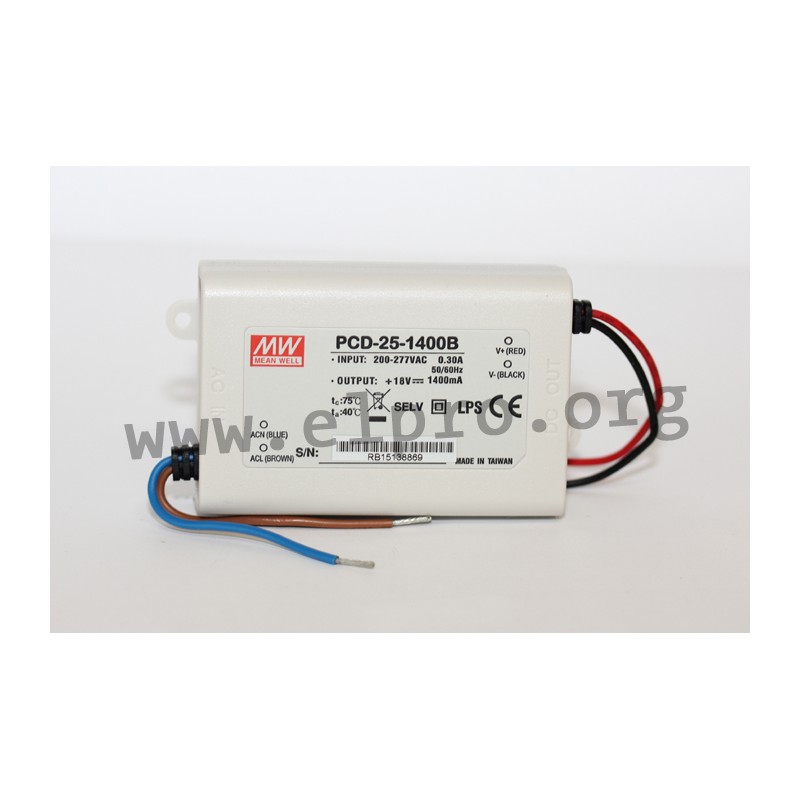

PCD-25-1400B

Mean Well LED driver series PCD-25

LED drivers in a plastic housing (IP42) with a constant current, 25W and a stranded wire connection. These devices are protected against overload (auto recovery), short circuit as well as overvoltage and comply with EN61000-3-2, class C, EN55015, EN61347-1 as well as EN61347-2-13. They have a built-in active PFC function, are suitable for LED lighting applications and are suitable for phase angle as well as phase cut dimmers. We offer the following types of this Mean Well series: PCD-25-350B, PCD-25-700B, PCD-25-1050B and PCD-25-1400B.

  • single output
  • output: 20,3 to 25,2W
  • input voltage: 180 to 295V AC (47 to 63Hz)
  • maximal input inrush current: 10A
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -30 to +60°C

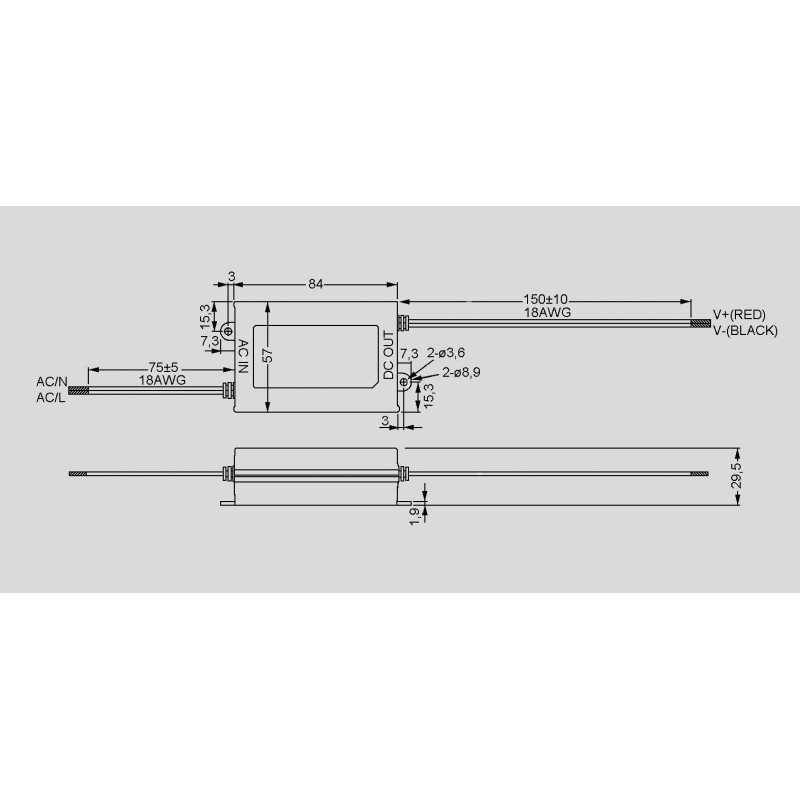

  • dimensions: 84x57x29,5mm
  • weight: 190g

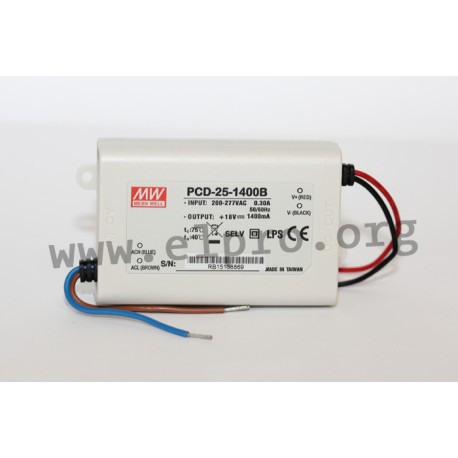

Meanwell PCD-25 series

PCD-25-1400B

36041 PCD-25-1400B PCD-25-1400B 4711287439952 Mean Well LED driver series PCD-25. LED drivers in a plastic housing (IP42) with a constant current, 25W and a stranded wire connection. These devices are protected against overload (auto recovery), short circuit as well as overvoltage and comply with EN61000-3-2, class C, EN55015, EN61347-1 as well as EN61347-2-13. They have a built-in active PFC function, are suitable for LED lighting applications and are suitable for phase angle as well as phase cut dimmers. We offer the following types of this Mean Well series: PCD-25-350B, PCD-25-700B, PCD-25-1050B and PCD-25-1400B. single output output: 20,3 to 25,2W input voltage: 180 to 295V AC (47 to 63Hz) maximal input inrush current: 10A withstand voltage I/P-O/P: 3750V AC operating temperature: -30 to +60°C dimensions: 84x57x29,5mm weight: 190g

Specifications

manufacturer
Manufacturer's name PCD-25-1400B
GTIN 4711287439952
Output voltage [V] 12...18
Phase 2 phase
Ripple [Vp-p] 2
Efficiency [%] 80
Output current range [A] 0...1,4
Output power [W] 25,2
Data Sheet

Unit price

14,19 €

Volume discounts

Quantity Unit price
50 + 13,29 €

Stock: 20
