PCD-25-700B

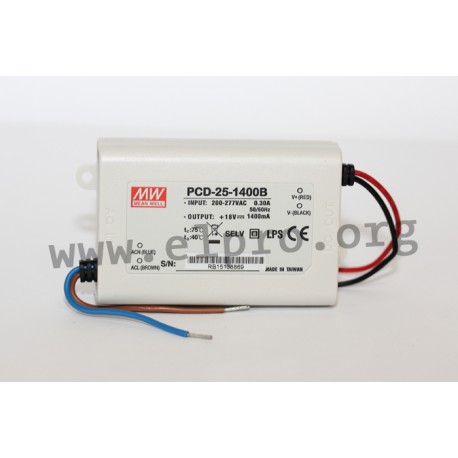

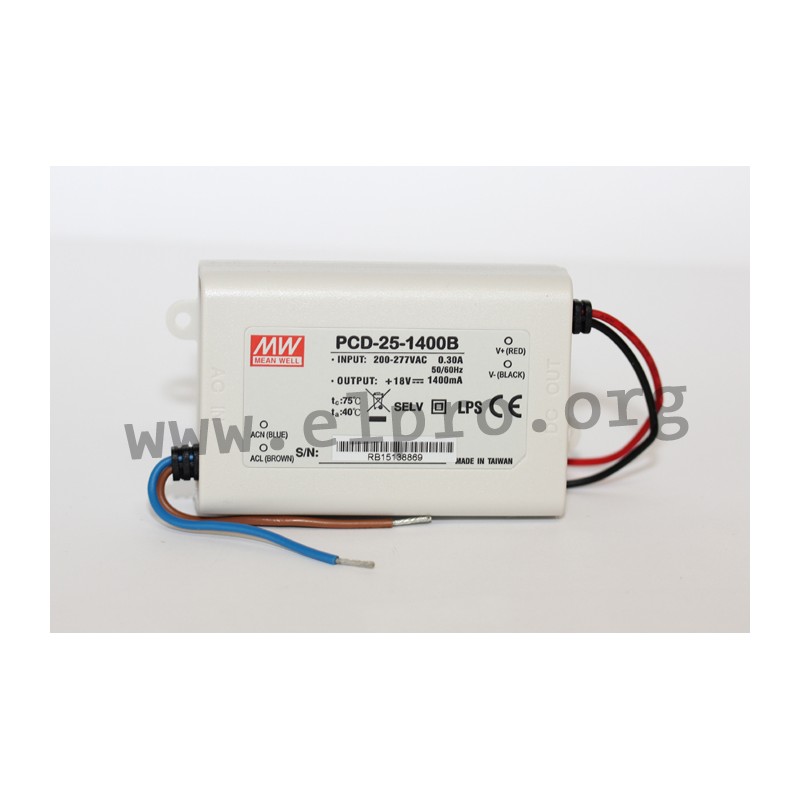

Mean Well LED driver series PCD-25

LED drivers in a plastic housing (IP42) with a constant current, 25W and a stranded wire connection. These devices are protected against overload (auto recovery), short circuit as well as overvoltage and comply with EN61000-3-2, class C, EN55015, EN61347-1 as well as EN61347-2-13. They have a built-in active PFC function, are suitable for LED lighting applications and are suitable for phase angle as well as phase cut dimmers. We offer the following types of this Mean Well series: PCD-25-350B, PCD-25-700B, PCD-25-1050B and PCD-25-1400B.

  • single output
  • output: 20,3 to 25,2W
  • input voltage: 180 to 295V AC (47 to 63Hz)
  • maximal input inrush current: 10A
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -30 to +60°C

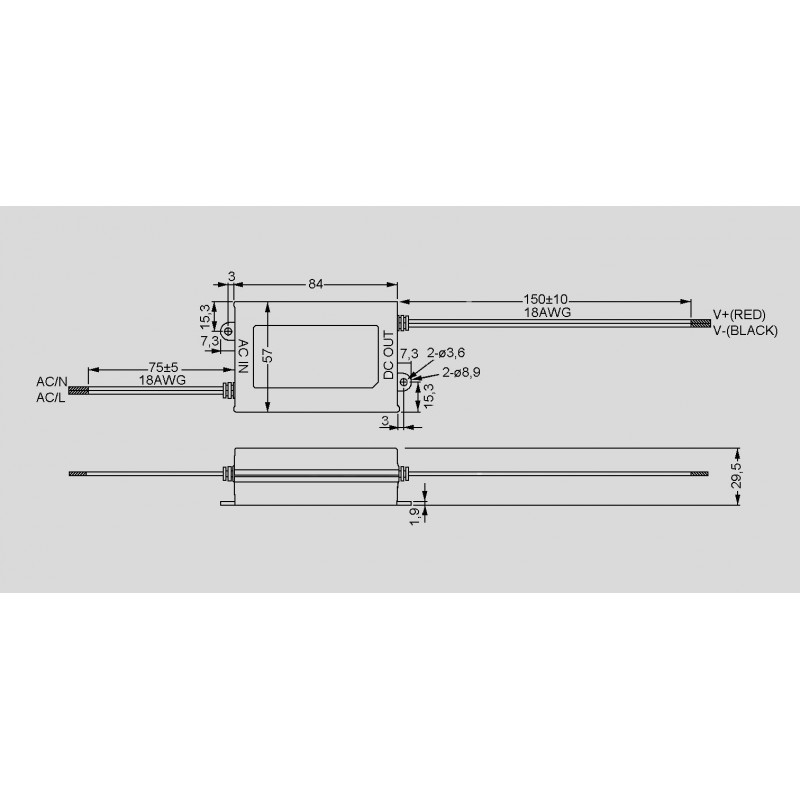

  • dimensions: 84x57x29,5mm
  • weight: 190g
PCD-25-700B

PCD-25-700B

36039 PCD-25-700B PCD-25-700B 4711287439990 Mean Well LED driver series PCD-25. LED drivers in a plastic housing (IP42) with a constant current, 25W and a stranded wire connection. These devices are protected against overload (auto recovery), short circuit as well as overvoltage and comply with EN61000-3-2, class C, EN55015, EN61347-1 as well as EN61347-2-13. They have a built-in active PFC function, are suitable for LED lighting applications and are suitable for phase angle as well as phase cut dimmers. We offer the following types of this Mean Well series: PCD-25-350B, PCD-25-700B, PCD-25-1050B and PCD-25-1400B. single output output: 20,3 to 25,2W input voltage: 180 to 295V AC (47 to 63Hz) maximal input inrush current: 10A withstand voltage I/P-O/P: 3750V AC operating temperature: -30 to +60°C dimensions: 84x57x29,5mm weight: 190g

Specifications

manufacturer
Manufacturer's name PCD-25-700B
GTIN 4711287439990
Output voltage [V] 24...36
Phase 2 phase
Ripple [Vp-p] 2,7
Efficiency [%] 81
Output current range [A] 0...0,7
Output power [W] 25,2
Data Sheet

Unit price

14,19 €

Volume discounts

Quantity Unit price
50 + 13,29 €

Stock: 36
Next incoming goods:
CW 09/2025
144 units

Further delivery:
CW 16/2025
