PCD-16-350B

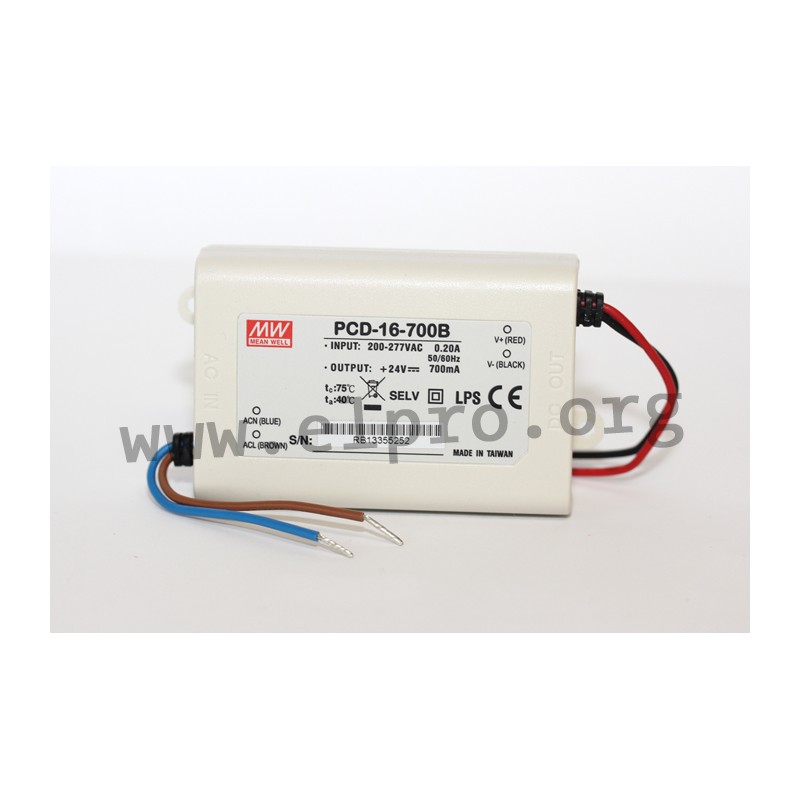

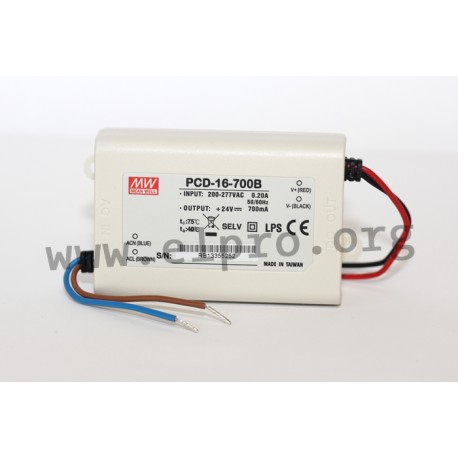

Mean Well LED driver series PCD-16

LED drivers in a plastic housing (IP42) with AC dimming, a constant current, a stranded wire connection and 16W. These devices are protected against overtemperature, overload (auto recovery) as well as short circuit and comply with EN61000-3-2, Class C, EN55015, EN61347-1 as well as EN61347-2-13. They have a built-in active PFC function and are suitable for phase-cut and phase-angle dimmers as well as for LED lighting applications. We offer the following types of this Mean Well series: PCD-16-350B, PCD-16-700B, PCD-16-1050B and PCD-16-1400B.

  • single output
  • output: 16,8W
  • input voltage: 180 to 295V AC (47 to 63Hz)
  • maximal input inrush current: 10A
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -30 to +60°C

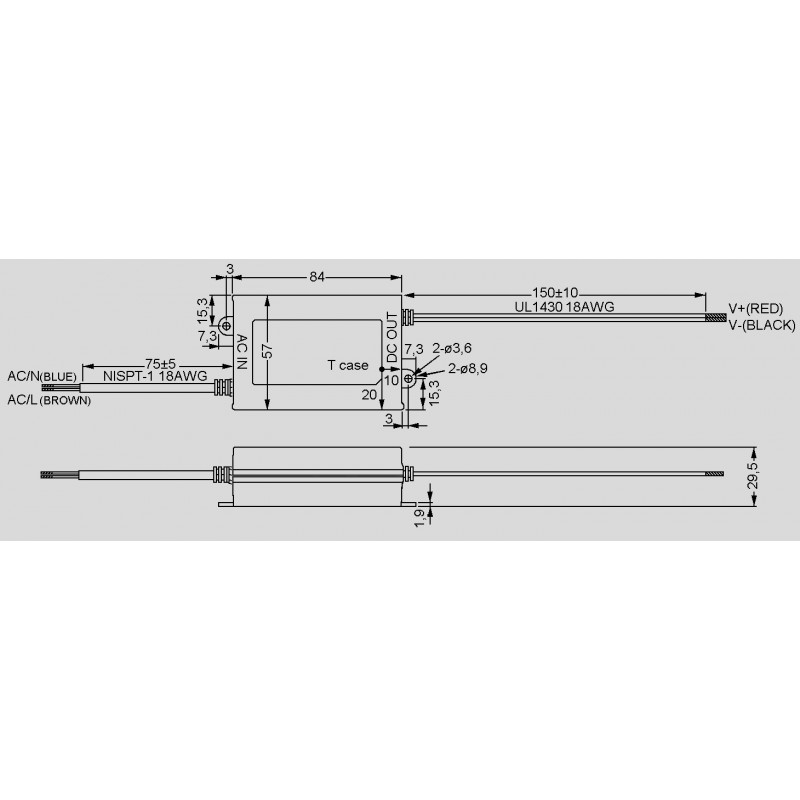

  • dimensions: 58x57x29,5mm
  • weight: 190g
PCD-16-350B

PCD-16-350B

36037 PCD-16-350B PCD-16-350B 4711287439679 Mean Well LED driver series PCD-16. LED drivers in a plastic housing (IP42) with AC dimming, a constant current, a stranded wire connection and 16W. These devices are protected against overtemperature, overload (auto recovery) as well as short circuit and comply with EN61000-3-2, Class C, EN55015, EN61347-1 as well as EN61347-2-13. They have a built-in active PFC function and are suitable for phase-cut and phase-angle dimmers as well as for LED lighting applications. We offer the following types of this Mean Well series: PCD-16-350B, PCD-16-700B, PCD-16-1050B and PCD-16-1400B. single output output: 16,8W input voltage: 180 to 295V AC (47 to 63Hz) maximal input inrush current: 10A withstand voltage I/P-O/P: 3750V AC operating temperature: -30 to +60°C dimensions: 58x57x29,5mm weight: 190g

Specifications

manufacturer
Manufacturer's name PCD-16-350B
GTIN 4711287439679
Output voltage [V] 24...48
Phase 2 phase
Ripple [Vp-p] 4,6
Efficiency [%] 82
Output current range [A] 0...0,35
Output power [W] 16,8
Data Sheet

Unit price

11,79 €

Volume discounts

Quantity Unit price
50 + 11,09 €

Stock: 485
Further delivery:
CW 16/2025
