PB-600-12

Mean Well charger series PB-600

Battery chargers with 600W, a universal input, a 2/3/8 stage charging curve (selectable by switch), a built-in remote ON/OFF control, a fan and a tricoloured LED indicator. These devices are suitable for lead-acid as well as Li-ion batteries and comply with EN60335-1, EN60335-2-29, EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. They have a built-in active PFC function, a built-in temperature compensation function and are protected against overvoltage, overtemperature, short circuit as well as reverse current. We offer the following types of this Mean Well series: PB-600-12, PB-600-24 and PB-600-48.

  • single output
  • output: 600W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 50A
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -20 to +60°C

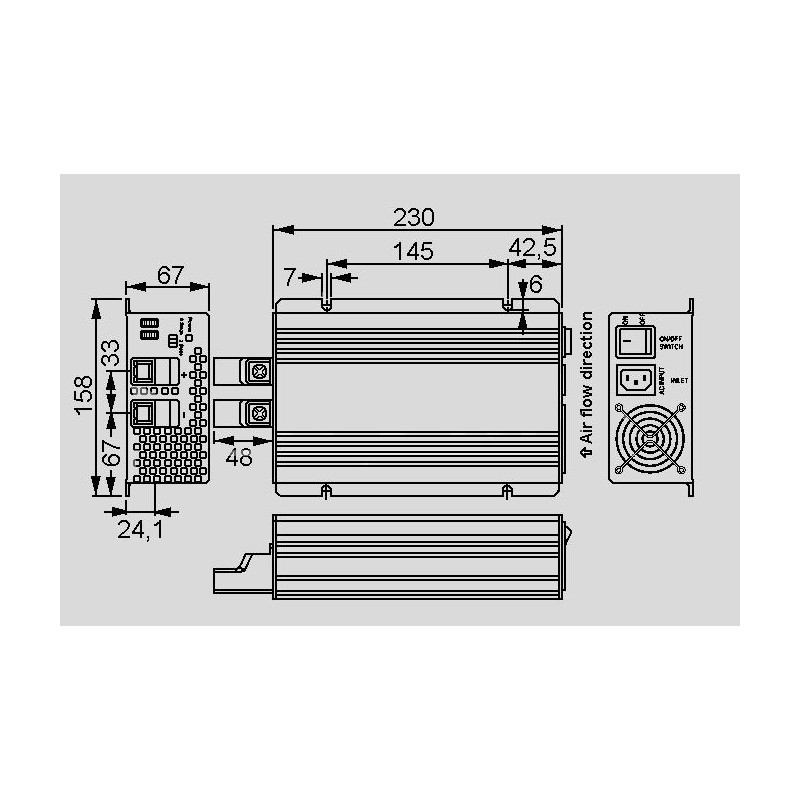

  • dimensions: 230x158x67mm
  • weight: 2200g

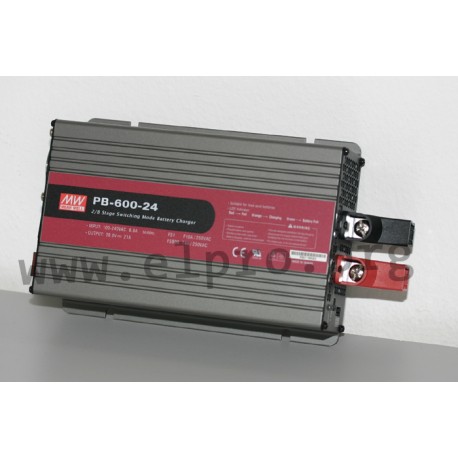

Meanwell PB-600 series

PB-600-12

35256 PB-600-12 PB-600-12 4711287420370 Mean Well charger series PB-600. Battery chargers with 600W, a universal input, a 2/3/8 stage charging curve (selectable by switch), a built-in remote ON/OFF control, a fan and a tricoloured LED indicator. These devices are suitable for lead-acid as well as Li-ion batteries and comply with EN60335-1, EN60335-2-29, EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. They have a built-in active PFC function, a built-in temperature compensation function and are protected against overvoltage, overtemperature, short circuit as well as reverse current. We offer the following types of this Mean Well series: PB-600-12, PB-600-24 and PB-600-48. single output output: 600W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 50A withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -20 to +60°C dimensions: 230x158x67mm weight: 2200g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name PB-600-12
GTIN 4711287420370
Charging voltage [V] 14,4
Float charge voltage [V] 13,6
Phase 2 phase
Recommended accu capacity [Ah] 135...400
Efficiency [%] 86
Output current [A] 40
Data Sheet

Unit price

129,09 €

Stock: 14
