PB-1000-48

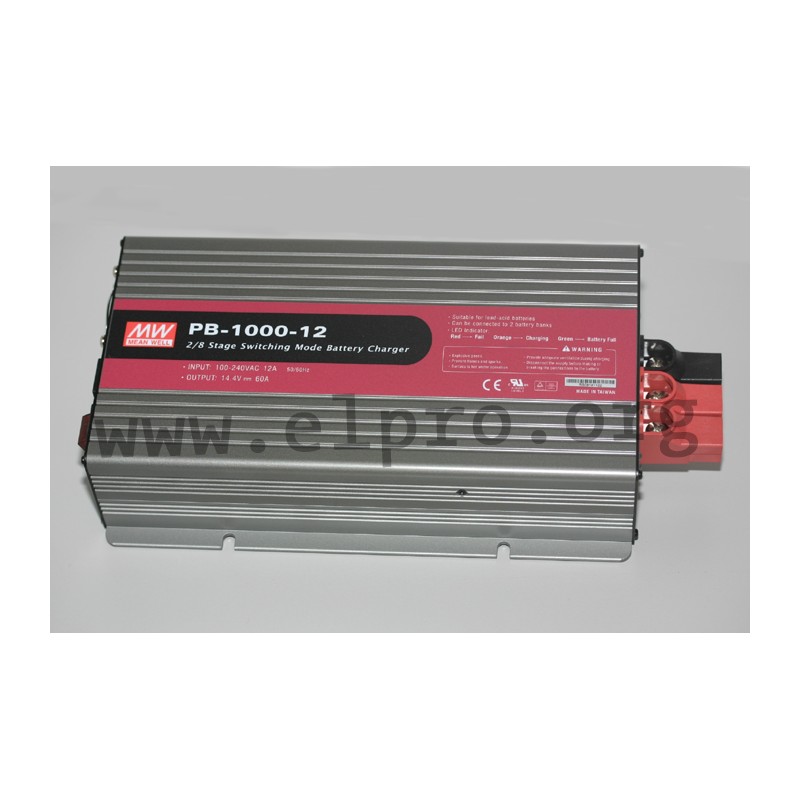

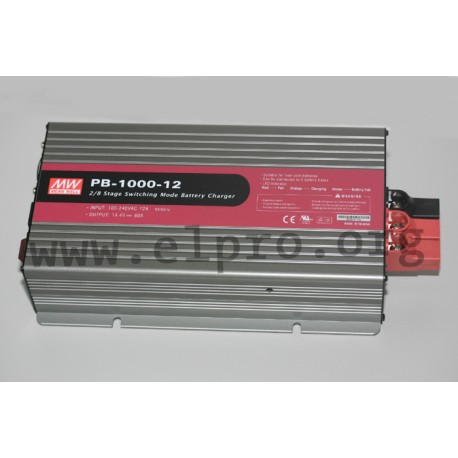

Mean Well charger series PB-1000

Battery chargers with 1000W, a three-coloured LED indicator, a built-in temperature compensation function, a universal input, a built-in remote ON/OFF control, a 2/3/8 stage charging curve (selectable by switch) and a fan. These devices are suitable for Li-ion/lead-acid batteries and comply with EN62368-1, EN55032, EN61000-3-2 as well as EN61000-3-3. They have a built-in active PFC function and are protected against short circuit, reverse current, overtemperature as well as overvoltage. We offer the following types of this Mean Well series: PB-1000-12, PB-1000-24 and PB-1000-48.

  • single output
  • output: 1000W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 50A
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -20 to +60°C

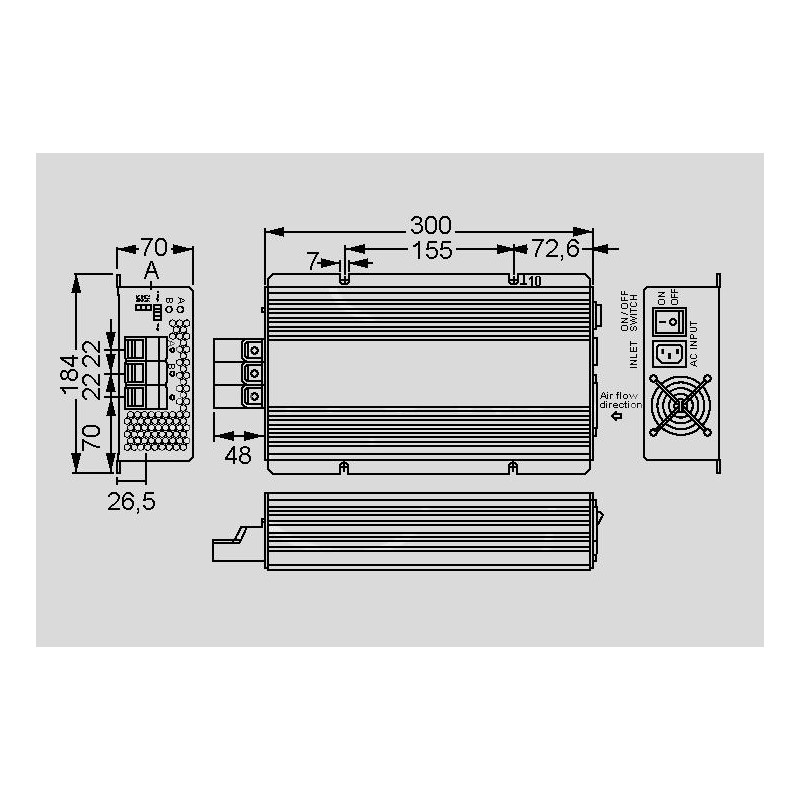

  • dimensions: 300x184x70mm
  • weight: 3500g
PB-1000-48

PB-1000-48

35764 PB-1000-48 PB-1000-48 4711287420455 Mean Well charger series PB-1000. Battery chargers with 1000W, a three-coloured LED indicator, a built-in temperature compensation function, a universal input, a built-in remote ON/OFF control, a 2/3/8 stage charging curve (selectable by switch) and a fan. These devices are suitable for Li-ion/lead-acid batteries and comply with EN62368-1, EN55032, EN61000-3-2 as well as EN61000-3-3. They have a built-in active PFC function and are protected against short circuit, reverse current, overtemperature as well as overvoltage. We offer the following types of this Mean Well series: PB-1000-12, PB-1000-24 and PB-1000-48. single output output: 1000W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 50A withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -20 to +60°C dimensions: 300x184x70mm weight: 3500g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name PB-1000-48
GTIN 4711287420455
Charging voltage [V] 57,6
Float charge voltage [V] 55,2
Phase 2 phase
Recommended accu capacity [Ah] 60...175
Efficiency [%] 89
Output current [A] 17,4
Data Sheet

Unit price

204,99 €

Stock: 25
