OWA-90E-42

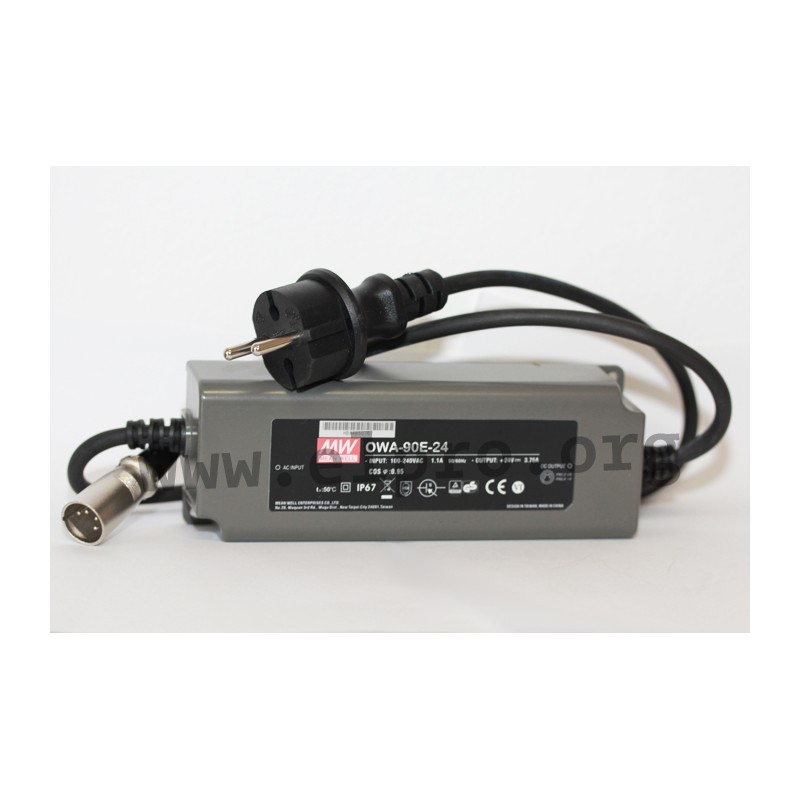

Mean Well desktop power supply series OWA-90E

Desktop switching power supplies in a plastic housing (IP67) with 90W, a low no-load power, energy efficiency Level VI, insulation class II and a universal input. These devices have a built-in active PFC function and are protected against overload, overtemperature, overvoltage as well as short circuit. They have a fanless design and comply with EN61558-1, EN61558-2-16, EN60335-1, EN55032 class B, EN55014-1, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: OWA-90E-12, OWA-90E-15, OWA-90E-20, OWA-90E-24, OWA-90E-30, OWA-90E-36, OWA-90E-42, OWA-90E-48 and OWA-90E-54.

  • single output
  • output: 90 to 90,3W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 60A
  • no-load power: <0,15W
  • cable length: 1,5m
  • input plug: schuko plug (no PE)
  • output plug: XLR 4P
  • operating temperature: -40 to +70°C
  • weight: 920g

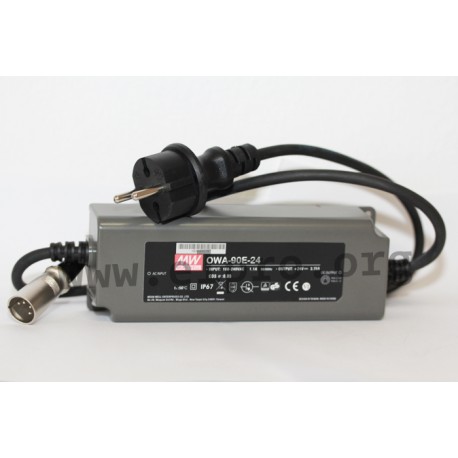

Meanwell OWA-90E series

OWA-90E-42

44971 OWA-90E-42 OWA-90E-42 4711287432168 Mean Well desktop power supply series OWA-90E. Desktop switching power&nbsp;supplies in a plastic&nbsp;housing (IP67) with 90W, a low no-load power,&nbsp;energy efficiency Level VI, insulation class II and a universal input. These devices have a&nbsp;built-in active PFC&nbsp;function and are protected against overload, overtemperature, overvoltage as well as short circuit. They have a fanless design and comply with&nbsp;EN61558-1, EN61558-2-16, EN60335-1, EN55032 class B, EN55014-1, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series:&nbsp;OWA-90E-12, OWA-90E-15, OWA-90E-20, OWA-90E-24, OWA-90E-30, OWA-90E-36, OWA-90E-42, OWA-90E-48 and OWA-90E-54. single output output: 90 to 90,3W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 60A no-load power: &lt;0,15W cable length: 1,5m input plug: schuko plug (no PE) output plug: XLR 4P operating temperature: -40 to +70&deg;C weight: 920g

Specifications

manufacturer
Manufacturer's name OWA-90E-42
GTIN 4711287432168
Output voltage [V] 42
Phase 2 phase
Efficiency [%] 91
Output current range [A] 2,15
Output voltage tolerance: [%] 1
Output power [W] 90,3
Ripple [mVp-p] 250
Data Sheet

Unit price

36,79 €

Volume discounts

Quantity Unit price
50 + 35,59 €

Stock: 29
Further delivery:
CW 12/2025
