OWA-60E-42

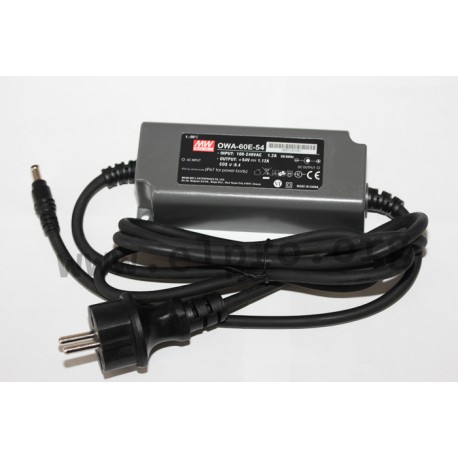

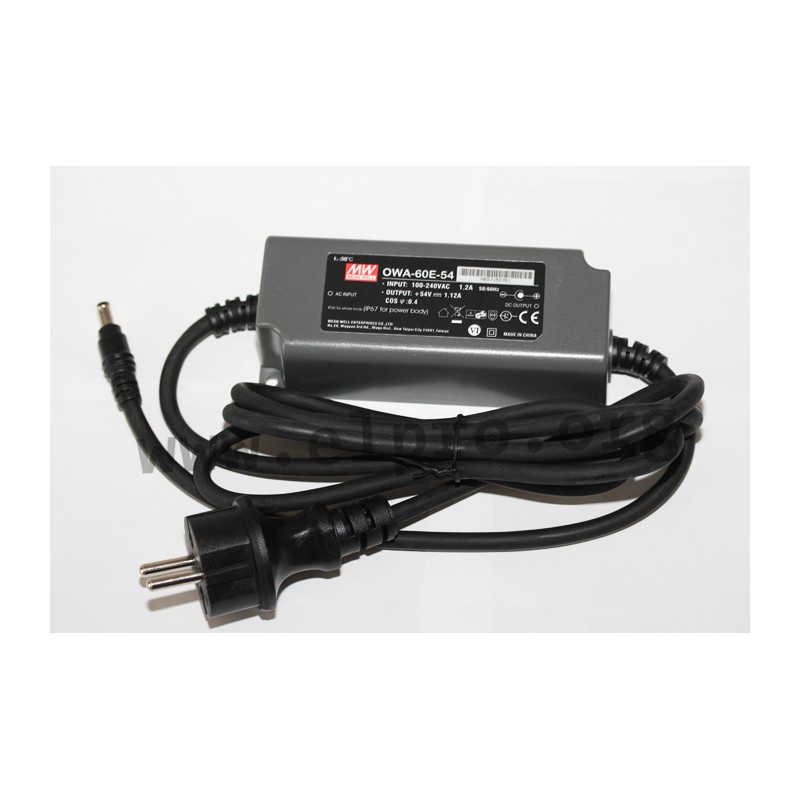

Mean Well desktop power supply series OWA-60E

Desktop switching power supplies in a plastic housing (IP67) with 60W, insulation class II, a low no-load power, energy efficiency Level VI and a universal input. These devices have a fanless design and are protected against overtemperature, short circuit, overvoltage as well as overload. They are very efficient and comply with EN61558-1, EN61558-2-16, EN55032 class B, EN55014-1 as well as EN61000-3-2 class A. We offer the following types of this Mean Well series: OWA-60E-12, OWA-60E-15, OWA-60E-20, OWA-60E-24, OWA-60E-30, OWA-60E-36, OWA-60E-42, OWA-60E-48 and OWA-60E-54.

  • single output
  • output: 60 to 63W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 65A
  • no-load power: <0,15W
  • cable length: 1,5m
  • input plug: schuko plug (no PE)
  • output plug: 2,1x5,5mm
  • operating temperature: -35 to +70°C
  • weight: 410g
Meanwell OWA-60E series

OWA-60E-42

46486 OWA-60E-42 OWA-60E-42 4711287429762 Mean Well desktop power supply series OWA-60E. Desktop switching power supplies in a plastic housing (IP67) with 60W,&nbsp;insulation class II, a low no-load power, energy efficiency Level VI and a universal input. These devices have a&nbsp;fanless design and are protected against overtemperature, short circuit, overvoltage as well as&nbsp;overload. They are very&nbsp;efficient and comply with&nbsp;EN61558-1, EN61558-2-16, EN55032 class B, EN55014-1 as well as EN61000-3-2 class A. We offer the&nbsp;following types of this Mean Well series:&nbsp;OWA-60E-12, OWA-60E-15, OWA-60E-20, OWA-60E-24, OWA-60E-30, OWA-60E-36, OWA-60E-42, OWA-60E-48 and OWA-60E-54. single output output: 60 to 63W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 65A no-load power: &lt;0,15W cable length: 1,5m input plug: schuko plug (no PE) output plug: 2,1x5,5mm operating temperature: -35 to +70&deg;C weight: 410g

Specifications

manufacturer
Manufacturer's name OWA-60E-42
GTIN 4711287429762
Output voltage [V] 42
Efficiency [%] 90
Output current range [A] 1,5
Output voltage tolerance: [%] 1
Output power [W] 63
Ripple [mVp-p] 250
