OWA-200E-12

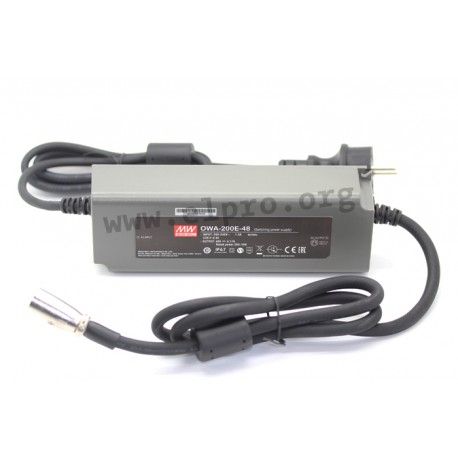

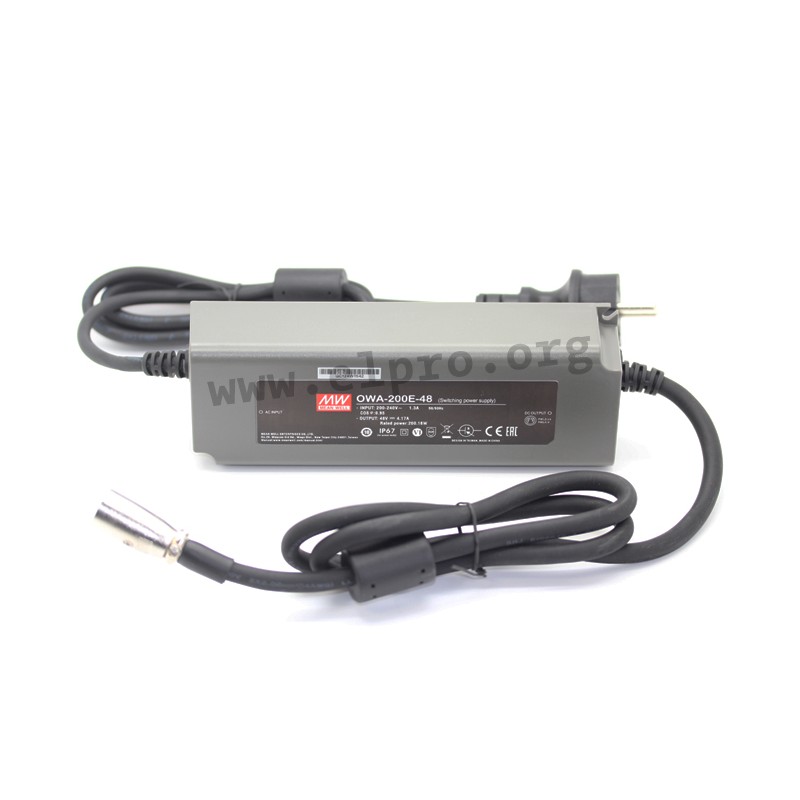

Mean Well desktop power supply series OWA-200E

Desktop switching power supplies in a plastic housing (IP67) with 200W, a low no-load power consumption, energy efficiency Level VI and protection class II. These devices have a built-in active PFC function and are protected against overvoltage, overload, overtemperature as well as short circuit. They comply with EN61558-2-16, EN61558-1, IEC61558-2-16, IEC61558-1, EN60335-1, EN55032 class B as well as EN55014. We offer the following types of this Mean Well series: OWA-200E-12, OWA-200E-20, OWA-200E-24, OWA-200E-36, OWA-200E-42, OWA-200E-48 and OWA-200E-54.

  • single output
  • output: 180 to 200W
  • input voltage: 180 to 264V AC (47 to 63Hz), 254 to 370V DC
  • input current: 1,1A
  • maximal input inrush current: 65A
  • no-load power consumption: <0,15W
  • input plug: CEE 7/7
  • output plug: XLR 4-pole
  • cable length: 100cm
  • operating temperature: -40 to +70°C
  • dimensions: 195x68x39,5mm
  • weight: 1320g
OWA-200E-12, Mean Well external switching power supplies, 200W, IP67, energy efficiency Level VI, OWA-200E series

OWA-200E-12

237662 OWA-200E-12 OWA-200E-12 4711287432281 Mean Well desktop power supply series OWA-200E. Desktop switching power supplies in a plastic housing (IP67) with 200W, a low no-load power consumption, energy efficiency Level VI and protection class II. These devices have a built-in active PFC function and are protected against overvoltage, overload, overtemperature as well as short circuit. They comply with EN61558-2-16, EN61558-1, IEC61558-2-16, IEC61558-1, EN60335-1, EN55032 class B as well as EN55014. We offer the following types of this Mean Well series: OWA-200E-12, OWA-200E-20, OWA-200E-24, OWA-200E-36, OWA-200E-42, OWA-200E-48 and OWA-200E-54. single output output: 180 to 200W input voltage: 180 to 264V AC (47 to 63Hz), 254 to 370V DC input current: 1,1A maximal input inrush current: 65A no-load power consumption: &lt;0,15W input plug: CEE 7/7 output plug: XLR 4-pole cable length: 100cm operating temperature: -40 to +70°C dimensions: 195x68x39,5mm weight: 1320g

Specifications

manufacturer
Manufacturer's name OWA-200E-12
GTIN 4711287432281
Output voltage [V] 12
Efficiency [%] 91
Output current [A] 15
Output voltage tolerance: [%] ±5
Output power [W] 180
Ripple [mVp-p] 150
