OWA-120E-15

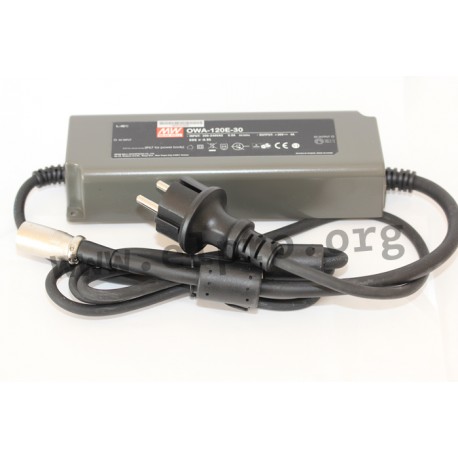

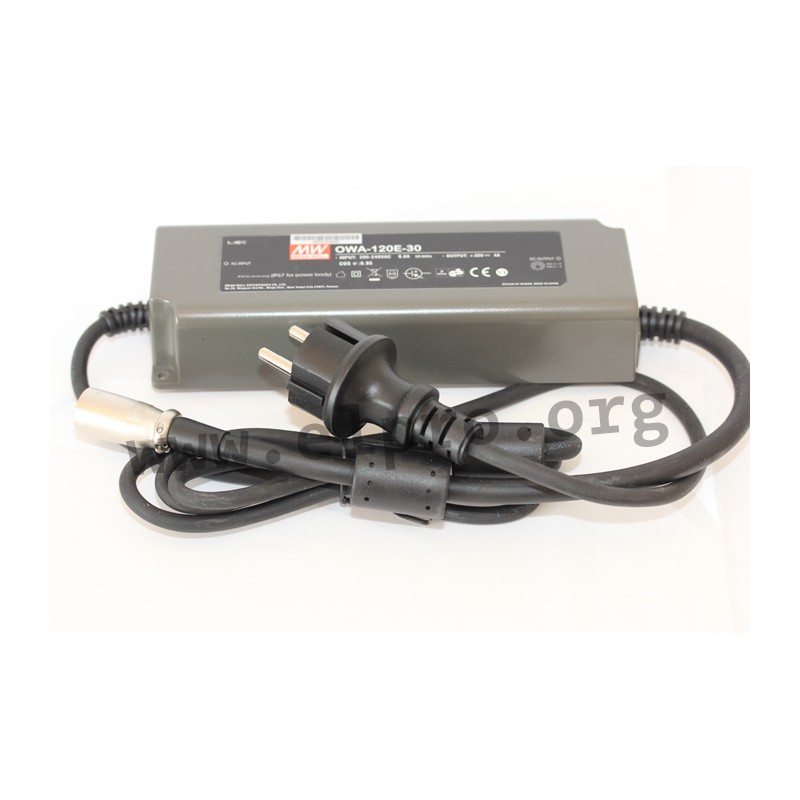

Mean Well desktop power supply series OWA-120E

Desktop switching power supplies in a plastic housing (IP67) with 120W, energy efficiency Level VI, insulation class II, a universal input and a low no-load power. These devices have a built-in active PFC function and are protected against overload, overtemperature, short circuit as well as overvoltage. They have a fanless design and comply with EN61558-1, EN61558-2-16, EN55032 class B, EN55014-1, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: OWA-120E-12, OWA-120E-15, OWA-120E-20, OWA-120E-24, OWA-120E-30, OWA-120E-36, OWA-120E-42, OWA-120E-48 and OWA-120E-54.

  • single output
  • output: 115,2 to 124,2W
  • input voltage: 180 to 264V AC (47 to 63Hz), 254 to 370V DC
  • maximal input inrush current: 60A
  • no-load power: <0,15W
  • cable length: 1,5m
  • input plug: schuko plug (no PE)
  • output plug: XLR 4P
  • operating temperature: -40 to +70°C
  • weight: 1150g
OWA-120E series

OWA-120E-15

104859 OWA-120E-15 OWA-120E-15 4711287432205 Mean Well desktop power supply series OWA-120E. Desktop switching power supplies in a plastic housing (IP67) with 120W, energy efficiency Level VI, insulation class II, a universal input and a low no-load power. These devices have a built-in active PFC function and are protected against overload, overtemperature, short circuit as well as&nbsp;overvoltage. They have a fanless design and&nbsp;comply with&nbsp;EN61558-1, EN61558-2-16, EN55032 class&nbsp;B, EN55014-1, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series:&nbsp;OWA-120E-12, OWA-120E-15, OWA-120E-20, OWA-120E-24, OWA-120E-30, OWA-120E-36, OWA-120E-42, OWA-120E-48 and OWA-120E-54. single output output: 115,2 to 124,2W input voltage: 180 to 264V AC (47 to 63Hz), 254 to 370V DC maximal input inrush current: 60A no-load power: &lt;0,15W cable length: 1,5m input plug: schuko plug (no PE) output plug: XLR 4P operating temperature: -40 to +70&deg;C weight: 1150g

Specifications

manufacturer
Manufacturer's name OWA-120E-15
GTIN 4711287432205
Output voltage [V] 15
Efficiency [%] 89
Output current [A] 8
Output voltage tolerance: [%] 4
Output power [W] 120
Ripple [mVp-p] 150
Data Sheet

Unit price

46,99 €

Volume discounts

Quantity Unit price
50 + 45,49 €

Stock: 23
Further delivery:
CW 12/2025
