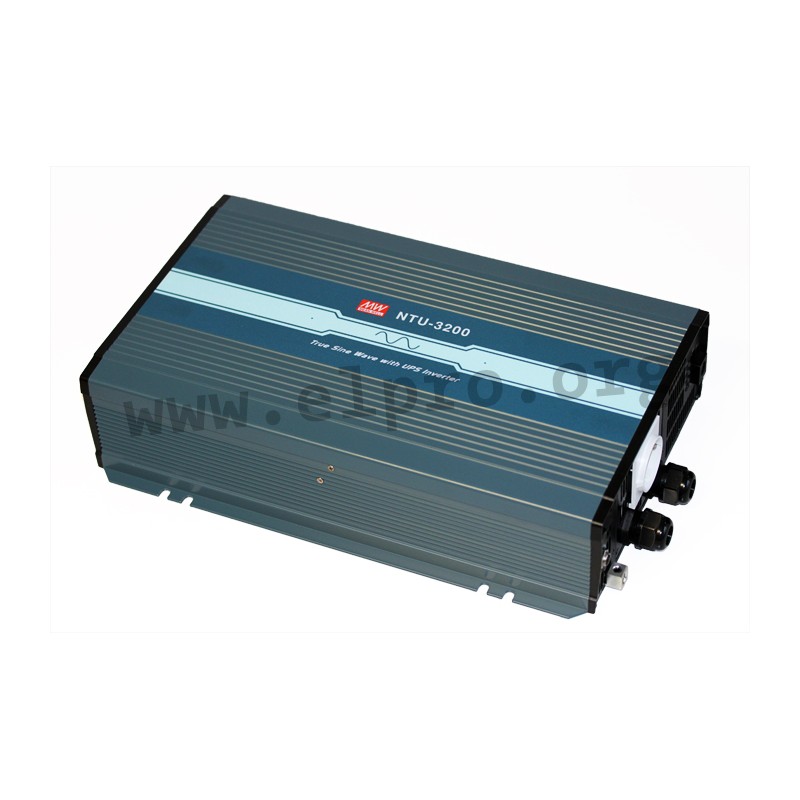

NTU-3200-224EU

Mean Well DC/AC converter series NTU-3200

Inverters in an enclosed housing with 3200W, a remote ON/OFF control, a built-in UPS function (AC by-pass), an adjustable output voltage and a fan. These devices have a pure sine wave output (THD<3%) and are protected against overload, overtemperature, short circuit as well as overvoltage. They are suitable for a peak power of 6400W, for Li-ion as well as lead-acid batteries and comply with EN62368-1 as well as EN55032 class A. We offer the following types of this Mean Well series: NTU-3200-212EU, NTU-3200-224EU and NTU-3200-248EU.

  • output: 3200W (peak power 6400W)
  • selectable output voltage: 200/220/230/240V AC
  • output voltage tolerance: ±3%
  • output frequency: 50/60Hz
  • output frequency tolerance: ±0,1Hz
  • waveform: pure sine wave
  • connection type: EU type F
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -25 to +70°C
  • dimensions: 420x270x98mm
  • weight: 8600g

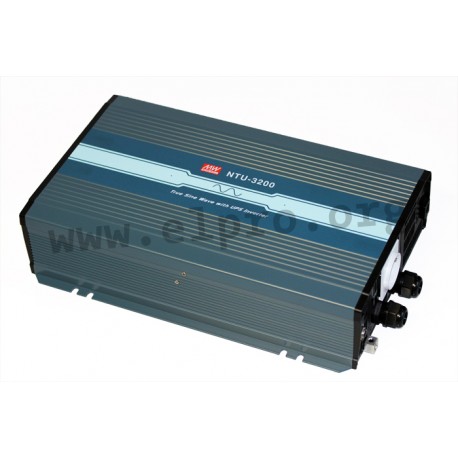

NTU-3200-224EU, Mean Well DC/AC converters, 3200W, pure sine wave, UPS function, NTU-3200 series

NTU-3200-224EU

241586 NTU-3200-224EU NTU-3200-224EU 4711287485980 Mean Well DC/AC converter series NTU-3200. Inverters in an enclosed housing with 3200W, a remote ON/OFF control, a built-in UPS function (AC by-pass), an adjustable output voltage and a fan. These devices have a pure sine wave output (THD&lt;3%) and are protected against overload, overtemperature, short circuit as well as overvoltage. They are suitable for a peak power of 6400W, for Li-ion as well as lead-acid&nbsp;batteries and comply with EN62368-1 as well as EN55032 class A. We offer the following types of this Mean Well series:&nbsp;NTU-3200-212EU,&nbsp;NTU-3200-224EU and&nbsp;NTU-3200-248EU. output: 3200W (peak power 6400W) selectable output voltage: 200/220/230/240V AC output voltage tolerance:&nbsp;&plusmn;3% output frequency: 50/60Hz output frequency tolerance:&nbsp;&plusmn;0,1Hz waveform:&nbsp;pure sine wave connection type: EU type F withstand voltage I/P-O/P: 3000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -25 to +70&deg;C dimensions: 420x270x98mm weight: 8600g

Specifications

manufacturer
Manufacturer's name NTU-3200-224EU
GTIN 4711287485980
Input voltage range [V] 20...33
Efficiency [%] 92
Nominal voltage [V] 24
Rated input current [A] 160
Data Sheet

Unit price

735,49 €

Stock: 10
Further delivery:
CW 12/2025
