NTU-2200-224EU

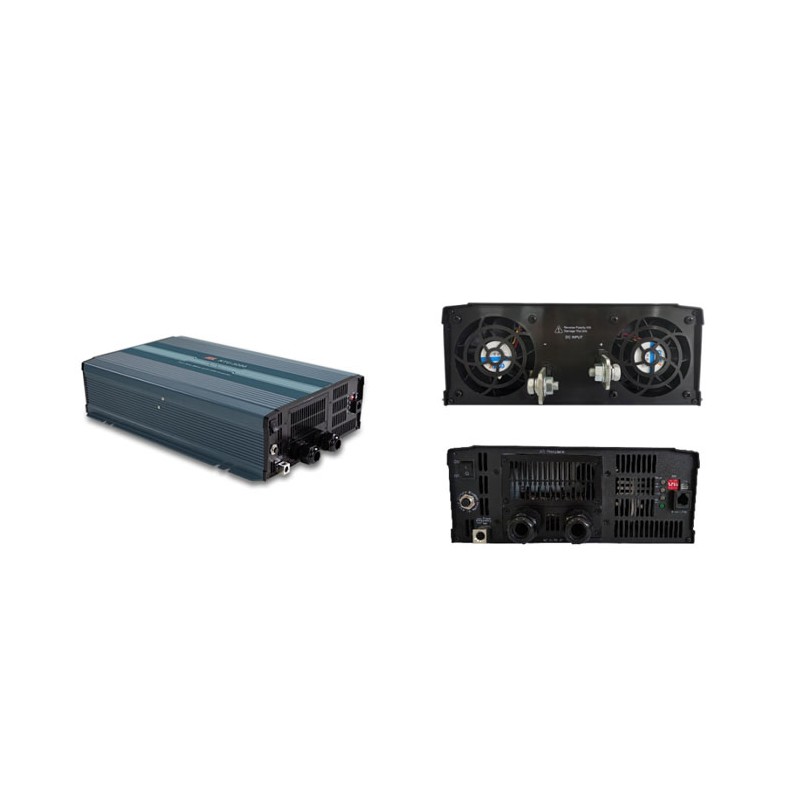

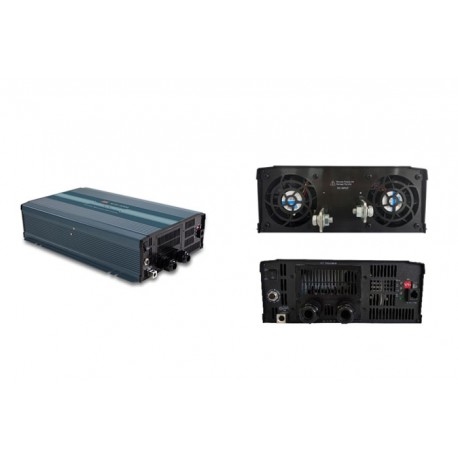

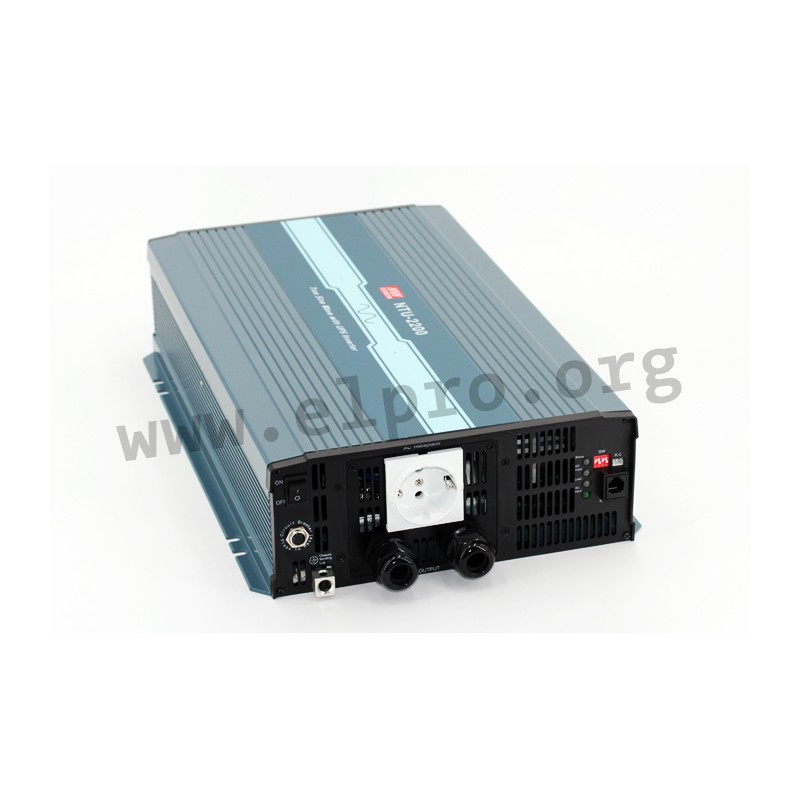

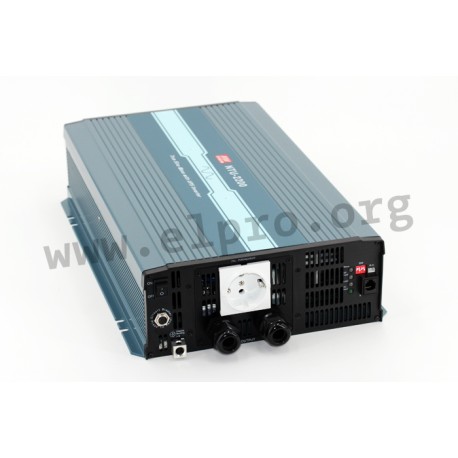

Mean Well DC/AC converter series NTU-2200

Inverters in an enclosed housing with 2200W, a built-in UPS function (AC by-pass), a remote ON/OFF control and an LED status indicator. These devices have a pure sine wave output (THD<3%), are suitable for lead-acid as well as Li-ion batteries and are protected against overload, overtemperature, short circuit as well as overvoltage. They are suitable for a peak power of up to 4400W, have an adjustable output voltage and comply with EN62368-1 as well as EN55032 class A. We offer the following types of this Mean Well series: NTU-2200-212EU, NTU-2200-224EU and NTU-2200-248EU.

  • output: 2200W (peak power 4400W)
  • selectable output voltage: 200/220/230/240V AC
  • output voltage tolerance: ±3%
  • output frequency: 50/60Hz
  • output frequency tolerance: ±0,1Hz
  • waveform: pure sine wave
  • connection type: EU type F
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -25 to +70°C
  • dimensions: 420x270x98mm
  • weight: 8600g
NTU-2200-224EU, Mean Well DC/AC converters, 2200W, pure sine wave, UPS function, NTU-2200 series

NTU-2200-224EU

241580 NTU-2200-224EU NTU-2200-224EU 4711287485775 Mean Well DC/AC converter series NTU-2200. Inverters in an enclosed housing with 2200W, a built-in UPS function (AC by-pass), a remote ON/OFF control and an LED status indicator. These devices have a pure sine wave output (THD&lt;3%), are suitable for lead-acid as well as Li-ion batteries and are protected against overload, overtemperature, short circuit as well as overvoltage. They are suitable for a peak power of up to 4400W, have an adjustable output voltage and comply with EN62368-1 as well as EN55032 class A. We offer the following types of this Mean Well series: NTU-2200-212EU, NTU-2200-224EU and NTU-2200-248EU. output: 2200W (peak power 4400W) selectable output voltage: 200/220/230/240V AC output voltage tolerance: ±3% output frequency: 50/60Hz output frequency tolerance: ±0,1Hz waveform: pure sine wave connection type: EU type F withstand voltage I/P-O/P: 3000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -25 to +70°C dimensions: 420x270x98mm weight: 8600g

Specifications

manufacturer
Manufacturer's name NTU-2200-224EU
GTIN 4711287485775
Input voltage range [V] 20...33
Efficiency [%] 92
Nominal voltage [V] 24
Rated input current [A] 120
Data Sheet
