> Power supplies>Voltage converters>DC/AC converter>Mean Well DC/AC converters, 1700W, pure sine wave, UPS function, NTU-1700 series>NTU-1700-224EU

Manufacturers

NTU-1700-224EU

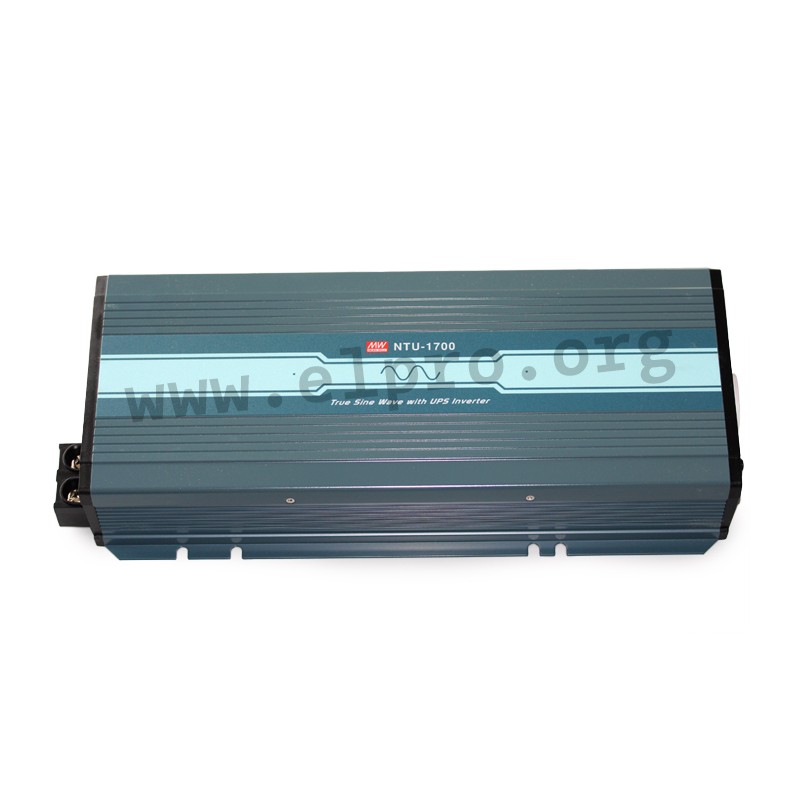

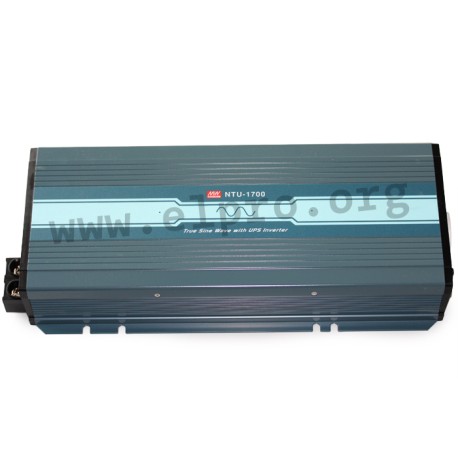

Mean Well DC/AC converter series NTU-1700

Inverters in an enclosed housing with 1700W, a built-in UPS function, a pure sine wave output (THD < 3%) and a remote ON/OFF control. These devices have a selectable output voltage and are protected against overload, overtemperature, short circuit as well as overvoltage. They are suitable for lead-acid as well as Li-ion batteries and comply with EN62368-1, IEC62368-1 as well as EN55032 class A. We offer the following types of this Mean Well series: NTU-1700-212EU, NTU-1700-224EU and NTU-1700-248EU.

  • output: 1700W (peak power 2550W)
  • selectable output voltage: 200/220/230/240V AC
  • output voltage tolerance: ±3%
  • output frequency: 50/60Hz
  • output frequency tolerance: ±1Hz
  • curve shape: pure sine wave
  • connection type: EU type F
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -25 to +70°C
  • dimensions: 400x184x70mm
  • weight: 4630g
NTU-1700-224EU, Mean Well DC/AC converters, 1700W, pure sine wave, UPS function, NTU-1700 series

NTU-1700-224EU

241412 NTU-1700-224EU NTU-1700-224EU 4711287484570 Mean Well DC/AC converter series NTU-1700. Inverters in an enclosed housing with 1700W, a built-in UPS function, a pure sine wave output (THD &lt; 3%) and a remote ON/OFF control. These devices have a selectable output voltage and are protected against overload, overtemperature, short circuit as well as overvoltage. They are suitable for lead-acid as well as Li-ion batteries and comply with EN62368-1, IEC62368-1 as well as EN55032 class A. We offer the following types of this Mean Well series: NTU-1700-212EU, NTU-1700-224EU and NTU-1700-248EU. output: 1700W (peak power 2550W) selectable output voltage: 200/220/230/240V AC output voltage tolerance: ±3% output frequency: 50/60Hz output frequency tolerance: ±1Hz curve shape: pure sine wave connection type: EU type F withstand voltage I/P-O/P: 3000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -25 to +70°C dimensions: 400x184x70mm weight: 4630g

Specifications

manufacturer
Manufacturer's name NTU-1700-224EU
GTIN 4711287484570
Input voltage range [V] 20...33
Efficiency [%] 92
Nominal voltage [V] 24
Rated input current [A] 85
Data Sheet

Unit price

371,39 €

Stock: 11
Further delivery:
CW 16/2025
