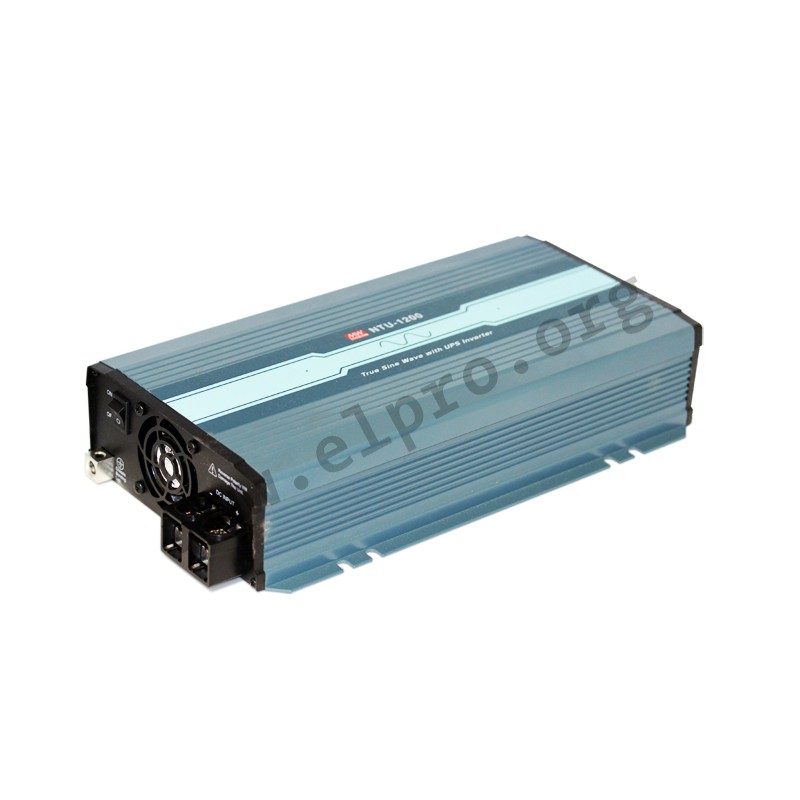

NTU-1200-212EU

Mean Well DC/AC converter series NTU-1200

Inverters with 1200W, a pure sine wave output (THD<3%), a built-in UPS function, an automatic shutdown in case of a deeply discharged battery and a remote ON/OFF function. These devices have an adjustable output voltage and are protected against overvoltage, short circuit as well as overtemperature. They trigger an alarm in case of a low battery voltage and comply with IEC62368-1, EN62368-1 as well as EN55032 class A. We offer the following types of this Mean Well series: NTU-1200-212EU, NTU-1200-224EU and NTU-1200-248EU.

  • output: 1200W
  • selectable output voltage: 200/220/230/240V AC
  • output voltage frequency: ±3%
  • output frequency: 50/60Hz
  • output frequency tolerance: ±0,1%
  • curve shape: pure sine wave (THD<3%)
  • connection type: EU type F
  • operating temperature: -25 to +70°C
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage O/P-FG: 1500V AC
  • dimensions: 333x184x70mm
  • weight: 3300g

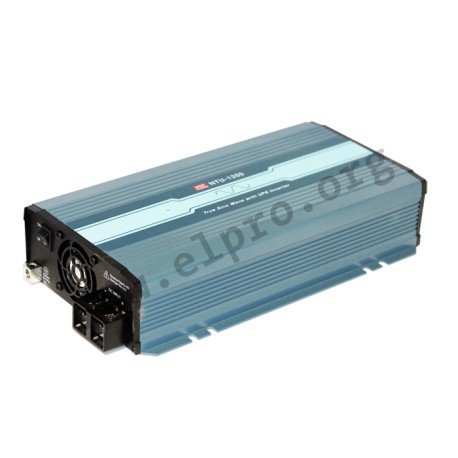

NTU-1200-212EU, Mean Well DC/AC converters, 1200W, pure sine wave, UPS function, NTU-1200 series

NTU-1200-212EU

237716 NTU-1200-212EU NTU-1200-212EU 4711287467436 Mean Well DC/AC converter series NTU-1200. Inverters with 1200W, a pure sine wave output (THD&lt;3%), a built-in UPS function, an automatic shutdown in case of a deeply discharged battery and a remote ON/OFF function. These devices have an adjustable output voltage and are protected against overvoltage, short circuit as well as overtemperature. They trigger an alarm in case of a low battery voltage and comply with IEC62368-1, EN62368-1 as well as EN55032 class A. We offer the following types of this Mean Well series: NTU-1200-212EU, NTU-1200-224EU and NTU-1200-248EU. output: 1200W selectable output voltage: 200/220/230/240V AC output voltage frequency: ±3% output frequency: 50/60Hz output frequency tolerance: ±0,1% curve shape: pure sine wave (THD&lt;3%) connection type: EU type F operating temperature: -25 to +70°C withstand voltage I/P-O/P: 3000V AC withstand voltage O/P-FG: 1500V AC dimensions: 333x184x70mm weight: 3300g

Specifications

manufacturer
Manufacturer's name NTU-1200-212EU
GTIN 4711287467436
Input voltage range [V] 10...16,5
Efficiency [%] 90
Nominal voltage [V] 12
Rated input current [A] 120
Data Sheet

Unit price

240,49 €

Volume discounts

Quantity Unit price
50 + 236,39 €

Stock: 6
Further delivery:
CW 16/2025
