NTS-750-212EU

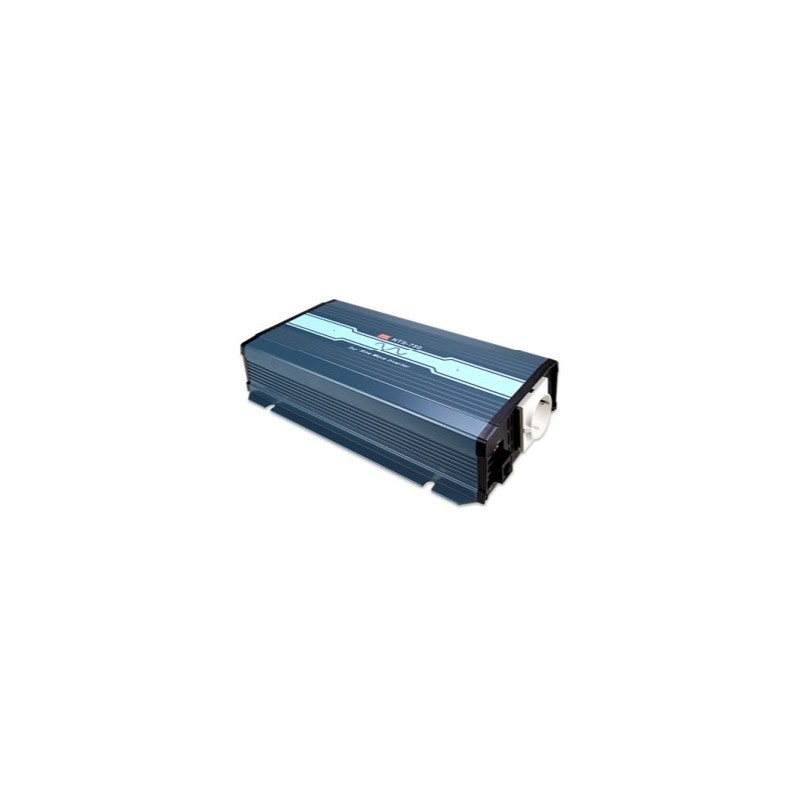

Mean Well DC/AC converter series NTS-750

Inverters with 750W, a pure sine wave output (THD<3%), a remote ON/OFF function and an automatic shutdown in case of a deeply discharged battery. These devices have an adjustable output voltage and are protected against overvoltage, short circuit as well as overtemperature. They trigger an alarm if the battery voltage is too low and comply with IEC62368-1, EN62368-1 as well as EN55032 class A. We offer the following types of this Mean Well series: NTS-750-212EU, NTS-750-224EU and NTS-750-248EU.

  • output: 750W
  • selectable output voltage: 200/220/230/240V AC
  • output voltage tolerance: ±3%
  • output frequency: 50/60Hz
  • output frequency tolerance: ±0,1%
  • curve shape: pure sine wave (THD<3%)
  • connection type: EU type F
  • operating temperature: -20 to +70°C
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage O/P-FG: 1500V AC
  • dimensions: 270x158x67mm
  • weight: 2300g

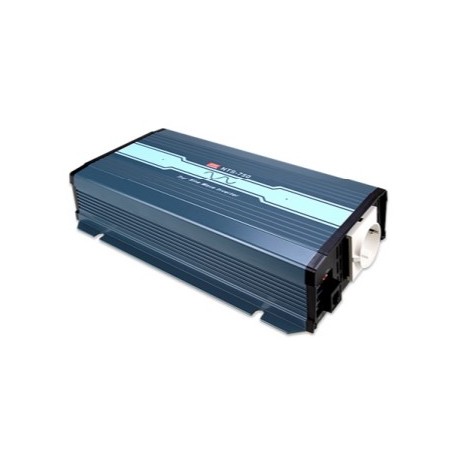

NTS-750-212EU, Mean Well DC/AC converters, 750W, pure sine wave, NTS-750 series

NTS-750-212EU

237710 NTS-750-212EU NTS-750-212EU 4711287467139 Mean Well DC/AC converter series NTS-750. Inverters with 750W, a pure sine wave output (THD&lt;3%), a remote ON/OFF function and an automatic shutdown in case of a deeply discharged battery. These devices have an adjustable output voltage and are protected against overvoltage, short circuit as well as overtemperature. They trigger an alarm if the battery voltage is too low and comply with IEC62368-1, EN62368-1 as well as EN55032 class A. We offer the following types of this Mean Well series: NTS-750-212EU, NTS-750-224EU and NTS-750-248EU. output: 750W selectable output voltage: 200/220/230/240V AC output voltage tolerance: ±3% output frequency: 50/60Hz output frequency tolerance: ±0,1% curve shape: pure sine wave (THD&lt;3%) connection type: EU type F operating temperature: -20 to +70°C withstand voltage I/P-O/P: 3000V AC withstand voltage O/P-FG: 1500V AC dimensions: 270x158x67mm weight: 2300g

Specifications

manufacturer
Manufacturer's name NTS-750-212EU
GTIN 4711287467139
Input voltage range [V] 10...16,5
Efficiency [%] 90
Nominal voltage [V] 12
Rated input current [A] 75
Data Sheet

Unit price

185,09 €

Volume discounts

Quantity Unit price
50 + 181,99 €

Stock: 11
Further delivery:
CW 12/2025
