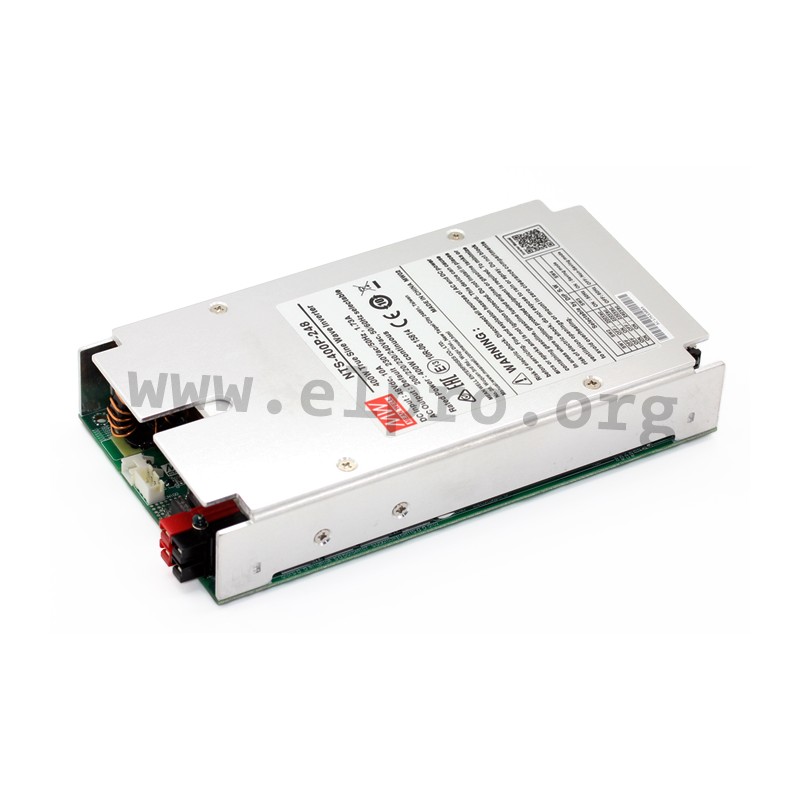

NTS-400P-248

Mean Well DC/AC converter series NTS-400P

Inverters with 400W, a pure sine wave output (THD<3%), a remote ON/OFF control and a low battery voltage alarm function. These devices have an adjustable output voltage and comply with IEC62368-1 as well as EN55032 class A. They switch off automatically in case of a deeply discharged battery and are protected against overvoltage, short circuit as well as overtemperature. We offer the following types of this Mean Well series: NTS-400P-212, NTS-400P-224 and NTS-400P-248.

  • output: 400W
  • selectable output voltage: 200/220/230/240V AC
  • output voltage tolerance: ±3%
  • output frequency: 50/60Hz
  • output frequency tolerance: ±0,1%
  • curve shape: pure sine wave, THD<3%
  • connection type: plug-in connector
  • operating temperature: -20 to +70°C
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage O/P-FG: 1500V AC
  • dimensions: 186x100,5x32mm
  • weight: 750g

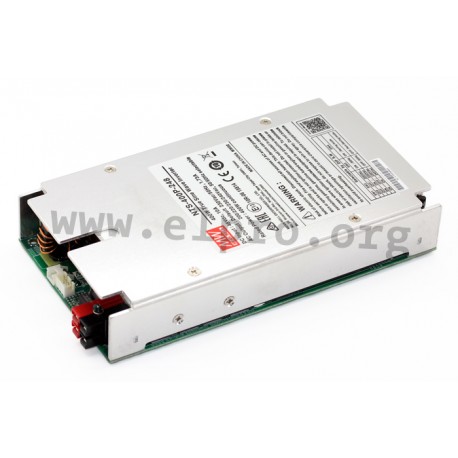

NTS-400P-248, Mean Well DC/AC converters, 400W, pure sine wave, NTS-400P series

NTS-400P-248

237706 NTS-400P-248 NTS-400P-248 4711287466750 Mean Well DC/AC converter series NTS-400P. Inverters with 400W, a pure sine wave output (THD&lt;3%), a remote ON/OFF control and a low battery voltage alarm function. These devices have an adjustable output voltage and comply with IEC62368-1 as well as EN55032 class A. They switch off automatically in case of a deeply discharged battery and are protected against overvoltage, short circuit as well as overtemperature. We offer the following types of this Mean Well series: NTS-400P-212, NTS-400P-224 and NTS-400P-248. output: 400W selectable output voltage: 200/220/230/240V AC output voltage tolerance: ±3% output frequency: 50/60Hz output frequency tolerance: ±0,1% curve shape: pure sine wave, THD&lt;3% connection type: plug-in connector operating temperature: -20 to +70°C withstand voltage I/P-O/P: 3000V AC withstand voltage O/P-FG: 1500V AC dimensions: 186x100,5x32mm weight: 750g

Specifications

manufacturer
Manufacturer's name NTS-400P-248
GTIN 4711287466750
Input voltage range [V] 40...66
Efficiency [%] 93
Nominal voltage [V] 48
Rated input current [A] 10
Data Sheet

Unit price

89,59 €

Volume discounts

Quantity Unit price
50 + 86,59 €

Stock: 11
Further delivery:
CW 12/2025
