NTS-2200-248EU

Mean Well DC/AC converter series NTS-2200

Inverters in an enclosed housing with 2200W, a remote ON/OFF control and an adjustable output voltage. These devices have a pure sine wave output (THD<3%) and are protected against overload, overvoltage, overtemperature as well as short circuit. They are suitable for Li-ion as well as lead-acid batteries, have a peak power of up to 4400W and comply with EN62368-1, EN55032 class A, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: NTS-2200-212EU, NTS-2200-224EU and NTS-2200-248EU.

  • output: 2200W (peak power 4400W)
  • selectable output voltage: 200/220/230/240V AC (50/60Hz)
  • output voltage tolerance: ±3%
  • output frequency tolerance: ±0,1Hz
  • curve shape: pure sine wave
  • connection type: EU Typ F
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -25 to +70°C
  • dimensions: 420x270x98mm
  • weight: 8600g

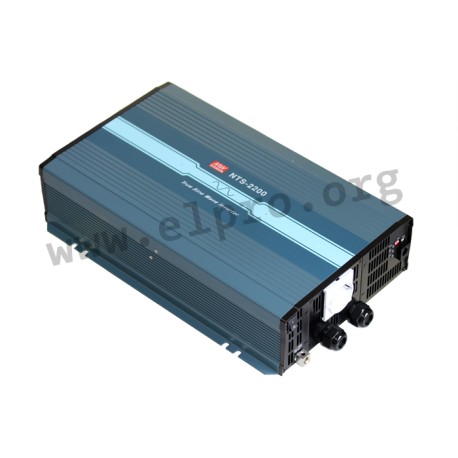

NTS-2200-248EU, Mean Well DC/AC converters, 2200W, pure sine wave, NTS-2200 series

NTS-2200-248EU

241578 NTS-2200-248EU NTS-2200-248EU 4711287485393 Mean Well DC/AC converter series NTS-2200. Inverters in an enclosed housing with 2200W, a remote ON/OFF control and an adjustable output voltage. These devices have a pure sine wave output (THD&lt;3%) and are protected against overload, overvoltage, overtemperature as well as short circuit. They are suitable for Li-ion as well as lead-acid batteries, have a peak power of up to 4400W and comply with EN62368-1, EN55032 class A, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: NTS-2200-212EU, NTS-2200-224EU and NTS-2200-248EU. output: 2200W (peak power 4400W) selectable output voltage: 200/220/230/240V AC (50/60Hz) output voltage tolerance: ±3% output frequency tolerance: ±0,1Hz curve shape: pure sine wave connection type: EU Typ F withstand voltage I/P-O/P: 3000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -25 to +70°C dimensions: 420x270x98mm weight: 8600g

Specifications

manufacturer
Manufacturer's name NTS-2200-248EU
GTIN 4711287485393
Input voltage range [V] 40...66
Efficiency [%] 93
Nominal voltage [V] 48
Rated input current [A] 60
Data Sheet

Unit price

592,49 €

Stock: 2
Further delivery:
CW 16/2025
