NTS-1700-224EU

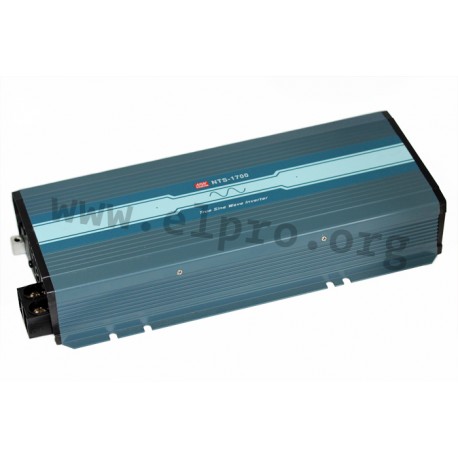

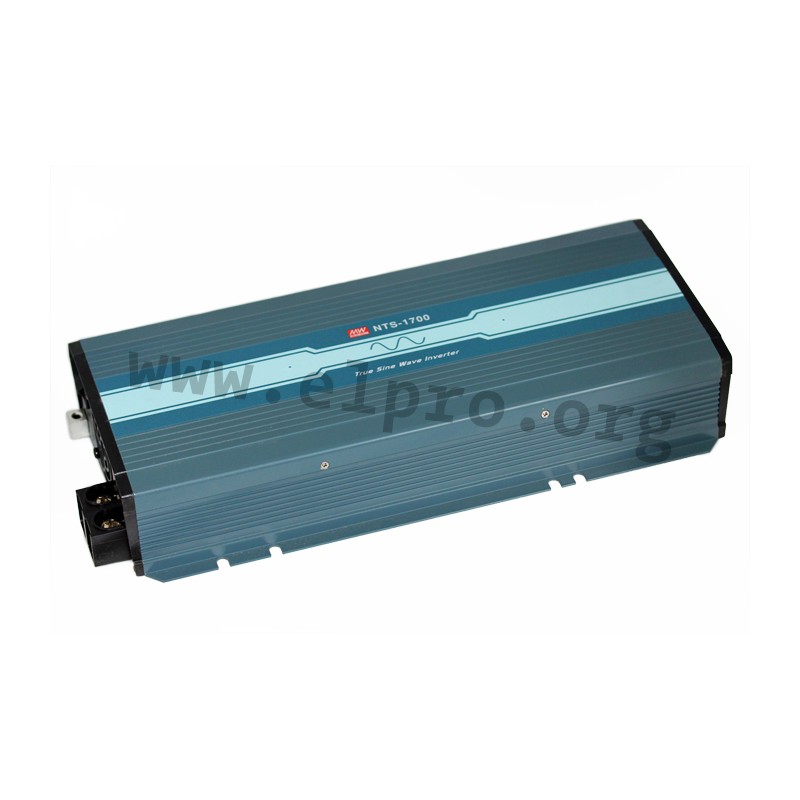

Mean Well DC/AC converter series NTS-1700

Inverters in an enclosed housing with 1700W, a pure sine wave output (THD<3%) and a remote ON/OFF control. These devices have a selectable output voltage and are protected against overload, overtemperature, overvoltage, short circuit as well as reverse polarity. They switch off when a battery is too deeply discharged and comply with EN62368-1, IEC62368-1 as well as EN55032 class A. We offer the following types of this Mean Well series: NTS-1700-212EU, NTS-1700-224EU and NTS-1700-248EU.

  • output: 1700W (up to 2550W for 10sec)
  • selectable output voltage: 200/220/230/240V AC
  • output voltage tolerance: ±3%
  • output frequency: 50/60Hz
  • output frequency tolerance: ±1Hz
  • curve shape: pure sine wave
  • connection type: EU type F
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -25 to +70°C
  • dimensions: 400x184x70mm
  • weight: 4630g
NTS-1700-224EU, Mean Well DC/AC converters, 1700W, pure sine wave, NTS-1700 series

NTS-1700-224EU

241409 NTS-1700-224EU NTS-1700-224EU 4711287484389 Mean Well DC/AC converter series NTS-1700. Inverters in an enclosed housing with 1700W, a pure sine wave output (THD&lt;3%) and a remote ON/OFF control. These devices have a selectable output voltage and are protected against overload, overtemperature, overvoltage, short circuit as well as reverse polarity. They switch off when a battery is too deeply discharged and comply with EN62368-1, IEC62368-1 as well as EN55032 class A. We offer the following types of this Mean Well series: NTS-1700-212EU, NTS-1700-224EU and NTS-1700-248EU. output: 1700W (up to 2550W for 10sec) selectable output voltage: 200/220/230/240V AC output voltage tolerance: ±3% output frequency: 50/60Hz output frequency tolerance: ±1Hz curve shape: pure sine wave connection type: EU type F withstand voltage I/P-O/P: 3000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -25 to +70°C dimensions: 400x184x70mm weight: 4630g

Specifications

manufacturer
Manufacturer's name NTS-1700-224EU
GTIN 4711287484389
Input voltage range [V] 20...33
Efficiency [%] 92
Nominal voltage [V] 24
Rated input current [A] 85
Data Sheet

Unit price

336,69 €

Stock: 20
Further delivery:
CW 16/2025
