NTS-1200-212EU

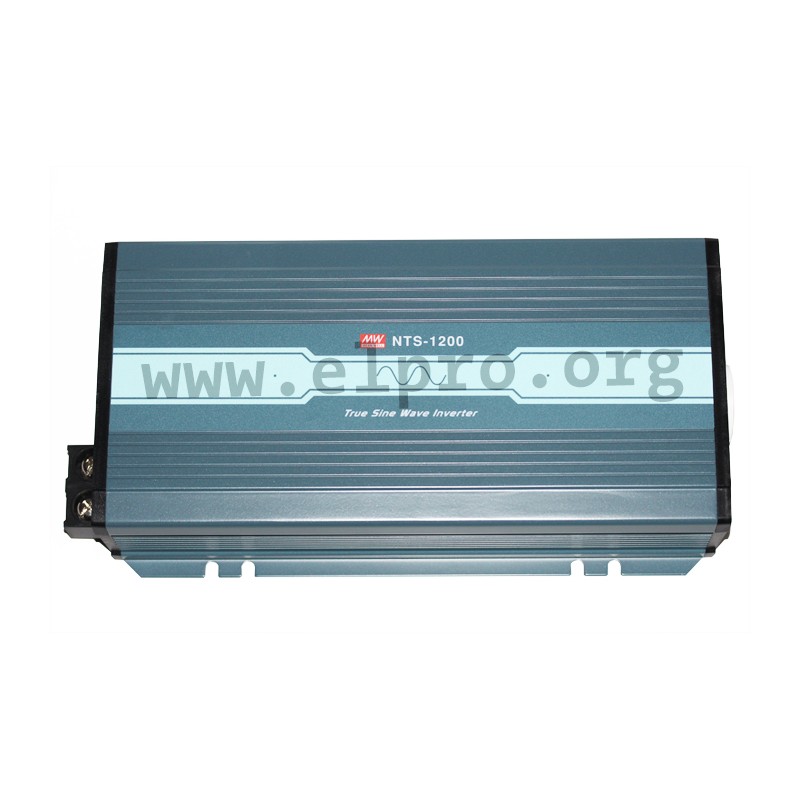

Mean Well DC/AC converter series NTS-1200

Inverters with 1200W, a pure sine wave output (THD<3%), a low battery voltage alarm function and a remote ON/OFF control. These devices have an automatic shutdown function in case of a deeply discharged battery and are protected against overvoltage, short circuit as well as overtemperature. They have an adjustable output voltage and comply with IEC62368-1, EN62368-1 as well as EN55032 class A. We offer the following types of this Mean Well series: NTS-1200-212EU, NTS-1200-224EU and NTS-1200-248EU.

  • output: 1200W
  • selectable output voltage: 200/220/230/240V AC
  • output voltage tolerance: ±3%
  • output frequency: 50/60Hz
  • output frequency tolerance: ±0,1%
  • curve shape: pure sine wave (THD<3%)
  • connection type: EU type F
  • operating temperature: -25 to +70°C
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage O/P-FG: 1500V AC
  • dimensions: 333x184x70mm
  • weight: 3300g

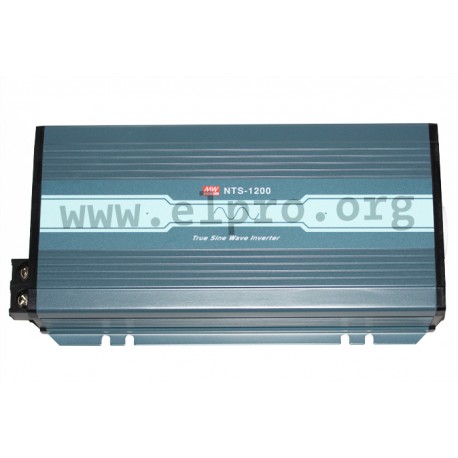

NTS-1200-212EU, Mean Well DC/AC converters, 1200W, pure sine wave, NTS-1200 series

NTS-1200-212EU

237713 NTS-1200-212EU NTS-1200-212EU 4711287467283 Mean Well DC/AC converter series NTS-1200. Inverters with 1200W, a pure sine wave output (THD&lt;3%), a low battery voltage alarm function and a remote ON/OFF control. These devices have an&nbsp;automatic shutdown function in case of a deeply&nbsp;discharged battery and are protected against overvoltage, short circuit as well as overtemperature. They have an adjustable&nbsp;output voltage and comply with IEC62368-1, EN62368-1 as well as EN55032 class A. We&nbsp;offer the following types of this Mean Well series:&nbsp;NTS-1200-212EU,&nbsp;NTS-1200-224EU and&nbsp;NTS-1200-248EU. output: 1200W selectable output voltage: 200/220/230/240V AC output voltage tolerance:&nbsp;&plusmn;3% output frequency: 50/60Hz output frequency tolerance:&nbsp;&plusmn;0,1% curve shape: pure sine wave (THD&lt;3%) connection type: EU type F operating temperature: -25 to +70&deg;C withstand voltage I/P-O/P: 3000V AC withstand voltage O/P-FG: 1500V AC dimensions: 333x184x70mm weight: 3300g

Specifications

manufacturer
Manufacturer's name NTS-1200-212EU
GTIN 4711287467283
Input voltage range [V] 10...16,5
Efficiency [%] 90
Nominal voltage [V] 12
Rated input current [A] 120
Data Sheet

Unit price

217,19 €

Volume discounts

Quantity Unit price
50 + 213,49 €

Stock: 30
Further delivery:
CW 12/2025
