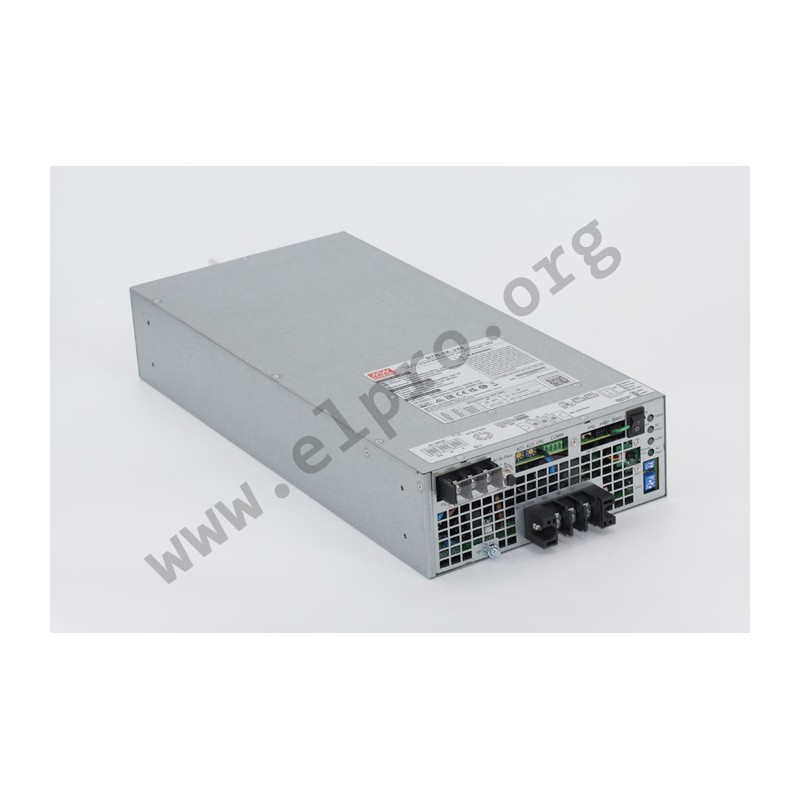

NTN-5K-248

Mean Well DC/AC converter series NTN-5K

Inverters with 5000W, a true sine wave output (THD<3%), a built-in UPS function, an automatic shutdown in case of a deeply discharged battery and an teamperature regulated fan. These devices have an adjustable output voltage and are protected against overvoltage, short circuit as well as overtemperature. They trigger an alarm in case of a low battery voltage and support MODBus-RTU (RS-485) communication, as well as they are suitable for parallel synchronized operation for up to 30KW. We offer the following types of this Mean Well series: NTN-5K-224, NTN-5K-248, and NTN-5K-2380.

  • output: 5000W
  • selectable output voltage: 200/220/230/240V AC
  • output voltage frequency: ±3%
  • output frequency: 50/60Hz
  • output frequency tolerance: ±0,1Hz
  • curve shape: true sine wave
  • connection type: screw type terminal
  • operating temperature: -30 to +70°C
  • withstand voltage I/P-FG: 500V AC
  • withstand voltage O/P-FG: 1500V AC
  • dimensions: 460x211x83,5mm
  • weight: 10500g

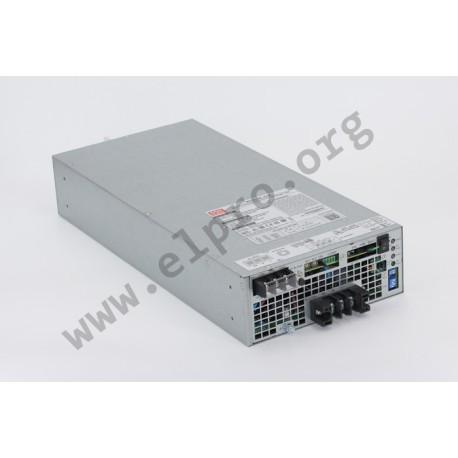

NTN-5K-248, Mean Well DC/AC converters, 5000W, true sine wave, NTN-5K series

NTN-5K-248

246836 NTN-5K-248 NTN-5K-248 Mean Well DC/AC converter series NTN-5K. Inverters with 5000W, a true sine wave output (THD&lt;3%), a built-in UPS function, an automatic shutdown in case of a deeply discharged battery and an teamperature regulated fan. These devices have an adjustable output voltage and are protected against overvoltage, short circuit as well as overtemperature. They trigger an alarm in case of a low battery voltage and support MODBus-RTU (RS-485) communication, as well as they are suitable for parallel synchronized operation for up to 30KW. We offer the following types of this Mean Well series: NTN-5K-224, NTN-5K-248, and NTN-5K-2380. output: 5000W selectable output voltage: 200/220/230/240V AC output voltage frequency: ±3% output frequency: 50/60Hz output frequency tolerance: ±0,1Hz curve shape: true sine wave  connection type: screw type terminal operating temperature: -30 to +70°C withstand voltage I/P-FG: 500V AC withstand voltage O/P-FG: 1500V AC dimensions: 460x211x83,5mm weight: 10500g

Specifications

manufacturer
Manufacturer's name NTN-5K-248
Starting rated current [A] 120
Input voltage range [V] 40...66
Efficiency [%] 93
Nominal voltage [V] 48
Data Sheet

Unit price

1.623,59 €

Stock: 4
Further delivery:
CW 16/2025
