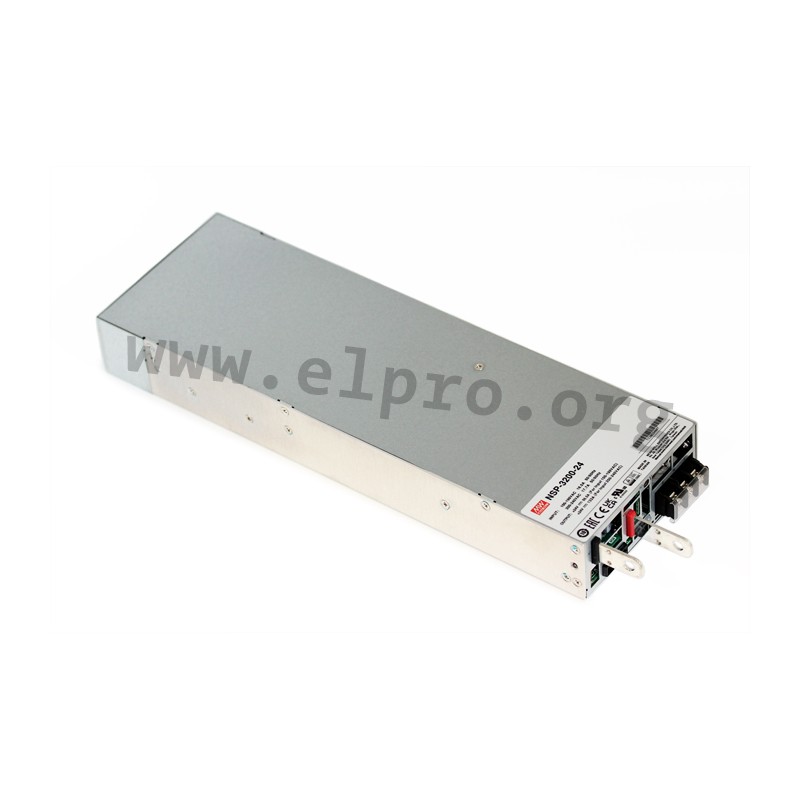

NSP-3200-24

Mean Well power supply series NSP-3200

Switching power supplies in an enclosed housing with 3200W, a universal input, a remote ON/OFF control, an auxiliary power, a fan and a DC-OK signal. These devices have a built-in active PFC function and are protected against overload, overtemperature, overvoltage as well as short circuit. They have a programmable output voltage and comply with EN55032 class B, EN55032 class A, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: NSP-3200-24 and NSP-3200-48.

  • single output
  • output: 3192 to 3216W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 400V DC
  • maximal input inrush current: 55A
  • leakage current: <2mA
  • overload protection: 105 to 115%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -20 to +70°C
  • weight: 2240g

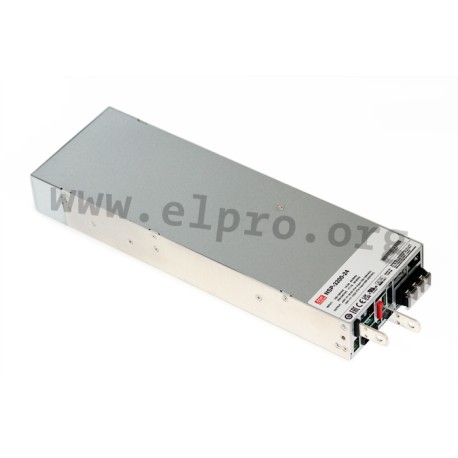

NSP-3200-24, Mean Well switching power supplies, 3200W, NSP-3200 series

NSP-3200-24

241565 NSP-3200-24 NSP-3200-24 4711287485201 Mean Well power supply series NSP-3200. Switching power supplies in an enclosed housing with 3200W, a universal input, a remote ON/OFF control, an auxiliary power, a fan and a DC-OK signal. These devices have a built-in active PFC function and are protected against overload, overtemperature, overvoltage as well as short circuit. They have a programmable output voltage and comply with EN55032 class B, EN55032 class A, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: NSP-3200-24 and NSP-3200-48. single output output: 3192 to 3216W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 400V DC maximal input inrush current: 55A leakage current: &lt;2mA overload protection: 105 to 115% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -20 to +70°C weight: 2240g

Specifications

manufacturer
Manufacturer's name NSP-3200-24
GTIN 4711287485201
Output voltage [V] 24
Efficiency [%] 93,5
Output current range [A] 0...133
Output voltage tolerance: [%] 1
Output power [W] 3192
Ripple [mVp-p] 300
Data Sheet

Unit price

470,29 €

Stock: 83
Further delivery:
CW 16/2025
