NSP-1600-48

Mean Well power supply series NSP-1600

Switching power supplies in an enclosed housing with 1600W, a universal input, a remote ON/OFF control, a fan, an auxiliary power and a DC-OK signal. These devices have a built-in active PFC function and are protected against overload, overtemperature, overvoltage as well as short circuit. They have a programmable output voltage and comply with EN62368-1, EN55032 class B, EN55032 class A, EN61000-3-2 class A as well as EN61000-3-3. We offer the following types of this Mean Well series: NSP-1600-12, NSP-1600-24, NSP-1600-36 and NSP-1600-48.

  • single output
  • output: 1500 to 1608W
  • input voltage: 90 to 26V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 35A
  • leakage current: <2mA
  • overload protection: 105 to 115%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -20 to +70°C
  • weight: 1800g

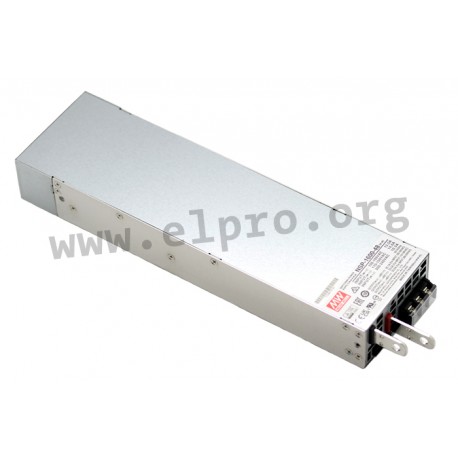

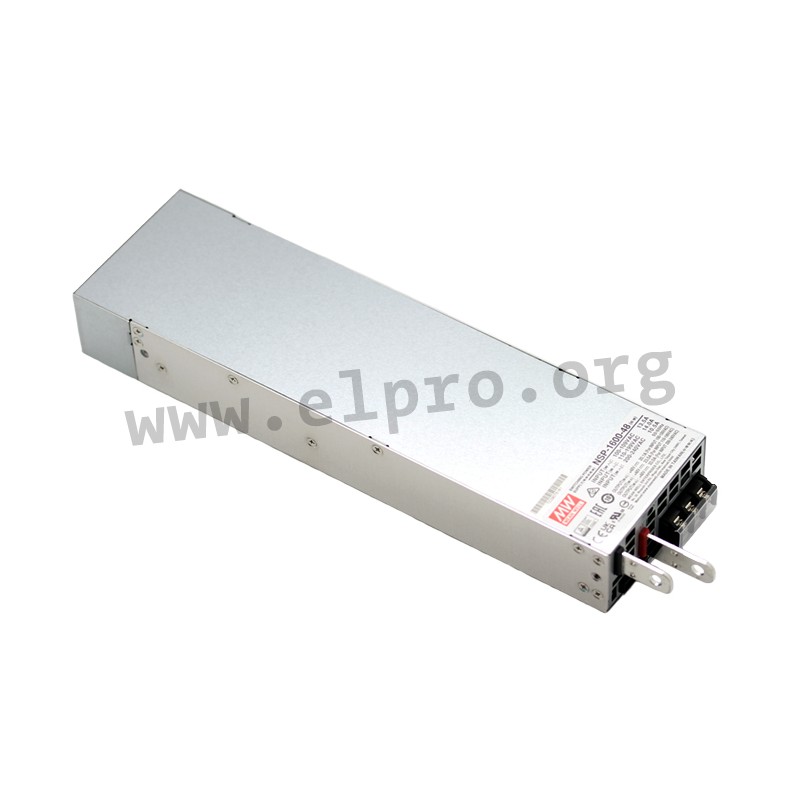

NSP-1600-48, Mean Well switching power supplies, 1600W, NSP-1600 series

NSP-1600-48

241556 NSP-1600-48 NSP-1600-48 4711287485195 Mean Well power supply series NSP-1600. Switching power supplies in an enclosed housing with 1600W, a universal input, a remote ON/OFF control, a fan, an auxiliary power and a DC-OK signal. These devices have a built-in active PFC function and are protected against overload, overtemperature, overvoltage as well as short circuit. They have a programmable output voltage and comply with EN62368-1, EN55032 class B, EN55032 class A, EN61000-3-2 class A as well as EN61000-3-3. We offer the following types of this Mean Well series: NSP-1600-12, NSP-1600-24, NSP-1600-36 and NSP-1600-48. single output output: 1500 to 1608W input voltage: 90 to 26V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 35A leakage current: &lt;2mA overload protection: 105 to 115% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -20 to +70°C weight: 1800g

Specifications

manufacturer
Manufacturer's name NSP-1600-48
GTIN 4711287485195
Output voltage [V] 48
Efficiency [%] 92,5
Output current range [A] 0...33,5
Output voltage tolerance: [%] 1
Output power [W] 1608
Ripple [mVp-p] 300
Data Sheet

Unit price

341,59 €

Stock: 32
Further delivery:
CW 16/2025
