NSD15-12D15

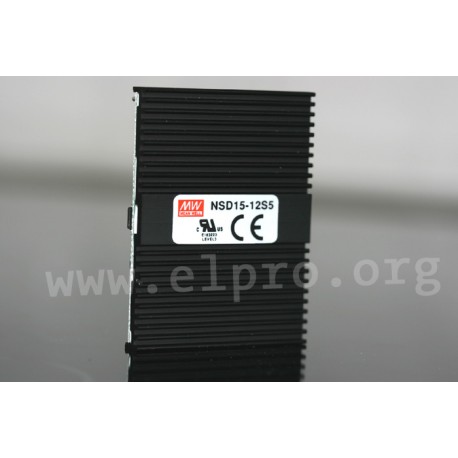

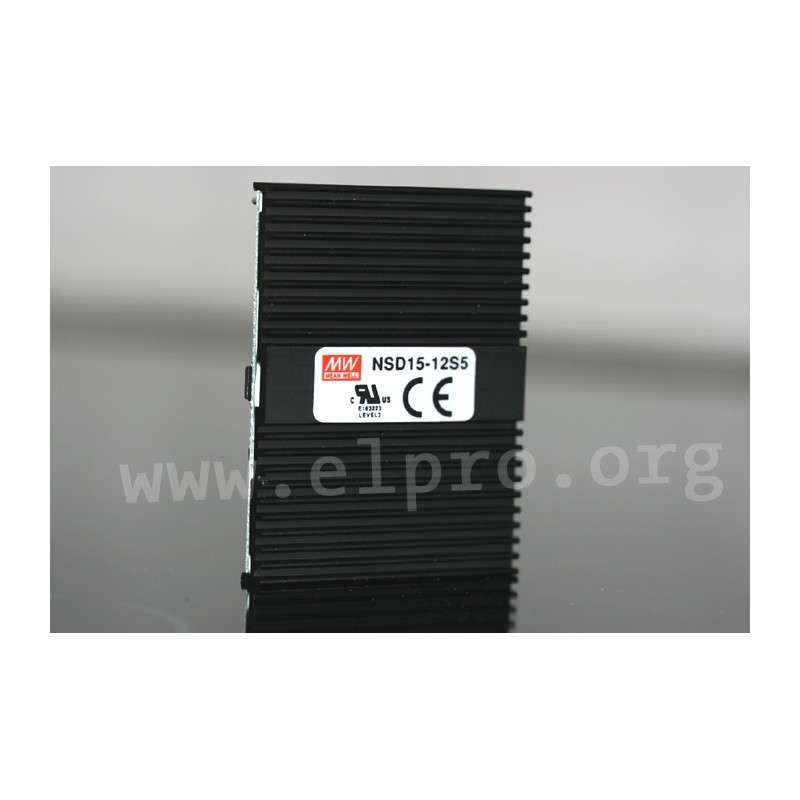

Mean Well DC/DC converter series NSD15

DC/DC converters with an integrated heatsink, a remote ON/OFF control, a built-in EMI filter, a regulated output voltage and an input voltage ratio of 4:1. These devices are suitable for PCB mounting and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a galvanic isolation of input/output and comply with EN55032 class B as well as EN55024. We offer the following types of this Mean Well series: NSD15-12S3, NSD15-12S5, NSD15-12S12, NSD15-12S15, NSD15-48S3, NSD15-48S5, NSD15-48S12, NSD15-48S15, NSD15-12D5, NSD15-12D12, NSD15-12D15, NSD15-48D5, NSD15-48D12 and NSD15-48D15.

  • single (NSD15-_S_) or dual output (NSD15-_D_)
  • output: 12 to 15W
  • overload protection: >105%
  • withstand voltage: 1500V DC
  • operating temperature: -25 to +70°C
  • weight: 30g

NSD15-12D15

32300 NSD15-12D15 NSD15-12D15 4711287466323 Mean Well DC/DC converter series NSD15. DC/DC converters with an integrated heatsink, a remote ON/OFF control, a built-in EMI filter, a regulated output voltage and an input voltage ratio of 4:1. These devices are suitable for PCB mounting and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a galvanic isolation of input/output and comply with EN55032 class B as well as EN55024. We offer the following types of this Mean Well series: NSD15-12S3, NSD15-12S5, NSD15-12S12, NSD15-12S15, NSD15-48S3, NSD15-48S5, NSD15-48S12, NSD15-48S15, NSD15-12D5, NSD15-12D12, NSD15-12D15, NSD15-48D5, NSD15-48D12 and NSD15-48D15. single (NSD15-_S_) or dual output (NSD15-_D_) output: 12 to 15W overload protection: >105% withstand voltage: 1500V DC operating temperature: -25 to +70°C weight: 30g

Specifications

manufacturer
Manufacturer's name NSD15-12D15
GTIN 4711287466323
Input [V DC] 9,4...36
Output current range [mA] 20...500
Output current tolerance [%] ±2,5
Output [V] ±15
Efficiency [%] 80
Ripple [mVp-p] 100
Data Sheet

Unit price

13,09 €

Volume discounts

Quantity Unit price
50 + 12,19 €

Stock: 65
Further delivery:
CW 16/2025
