NSD10-12S15

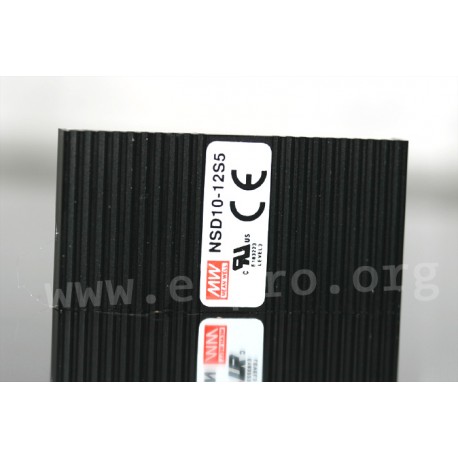

Mean Well DC/DC converter series NSD10

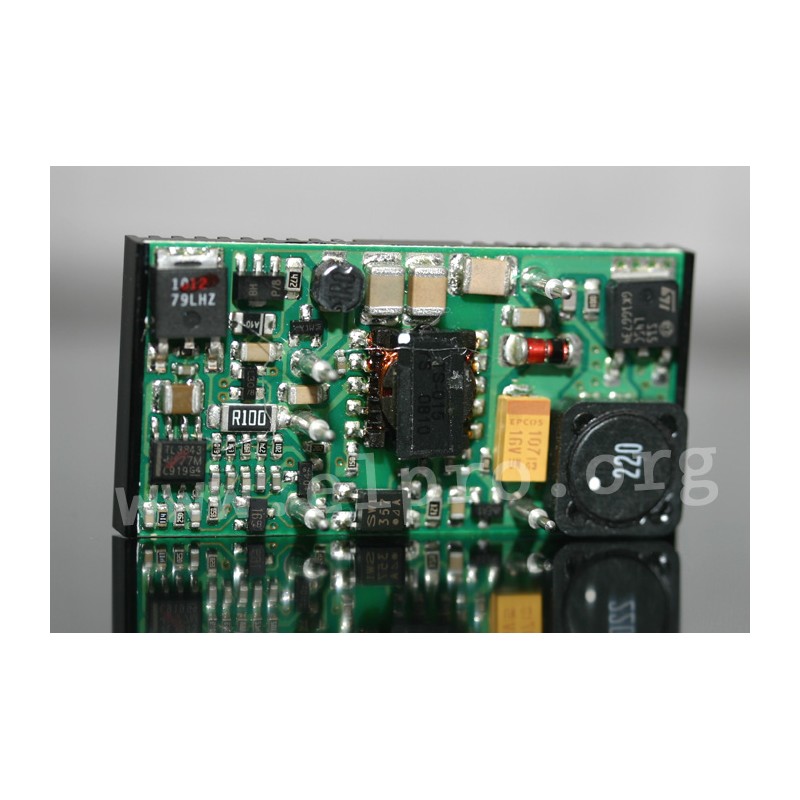

DC/DC converters with an integrated heatsink, a regulated output voltage, a remote ON/OFF control and a built-in EMI filter. These devices are suitable for PCB mounting and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a galvanic isolation of input/output and comply with EN62368-1, EN55032 class B as well as EN55024. We offer the following types of this Mean Well series: NSD10-12S3, NSD10-12S5, NSD10-12S9, NSD10-12S12, NSD10-12S15, NSD10-48S3, NSD10-48S5, NSD10-48S9 and NSD10-48S12.

  • single output
  • output: 8,25 to 10,05W
  • overload protection: >105%
  • withstand voltage: 1000V DC
  • operating temperature: -25 to +70°C
  • weight: 20g
Meanwell NSD10 series

NSD10-12S15

33460 NSD10-12S15 NSD10-12S15 4711287466088 Mean Well DC/DC converter series NSD10. DC/DC converters with an integrated heatsink, a regulated output voltage, a remote ON/OFF control and a built-in EMI filter. These devices are suitable for PCB mounting and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a galvanic isolation of input/output and comply with EN62368-1, EN55032 class B as well as EN55024. We offer the following types of this Mean Well series: NSD10-12S3, NSD10-12S5, NSD10-12S9, NSD10-12S12, NSD10-12S15, NSD10-48S3, NSD10-48S5, NSD10-48S9 and NSD10-48S12. single output output: 8,25 to 10,05W overload protection: >105% withstand voltage: 1000V DC operating temperature: -25 to +70°C weight: 20g

Specifications

manufacturer
Manufacturer's name NSD10-12S15
GTIN 4711287466088
Input [V DC] 9,8...36
Output [V] 15
Efficiency [%] 80
Output current range [A] 0,03...0,67
Ripple [mV] 75
Data Sheet

Unit price

9,69 €

Volume discounts

Quantity Unit price
50 + 9,09 €

Stock: 25
Further delivery:
CW 18/2025
