NSD10-48S15

DC/DC-converter-modules NSD10 by Meanwell

• output: 10.05 W

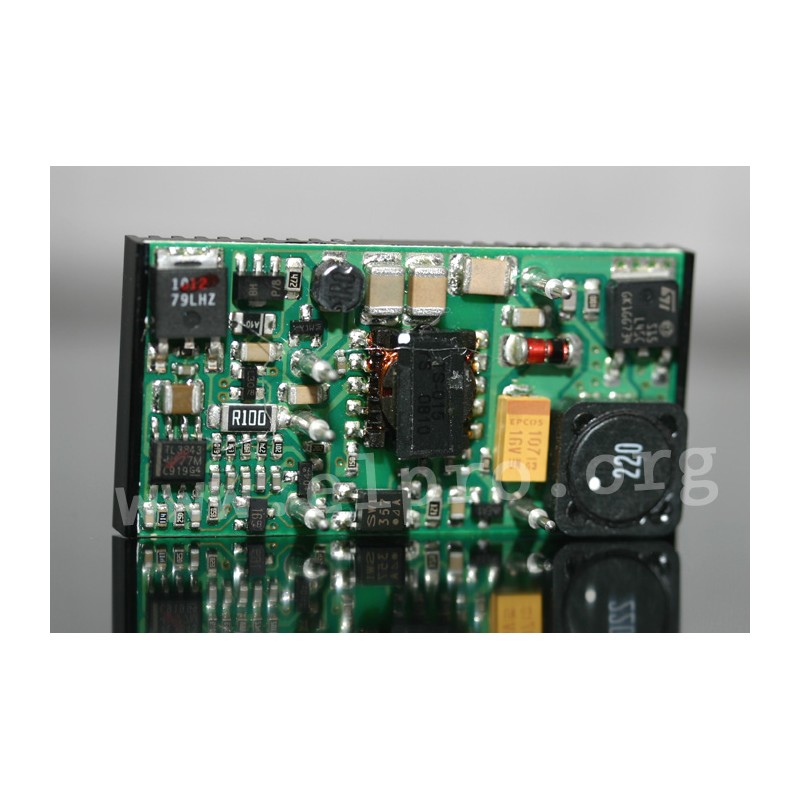

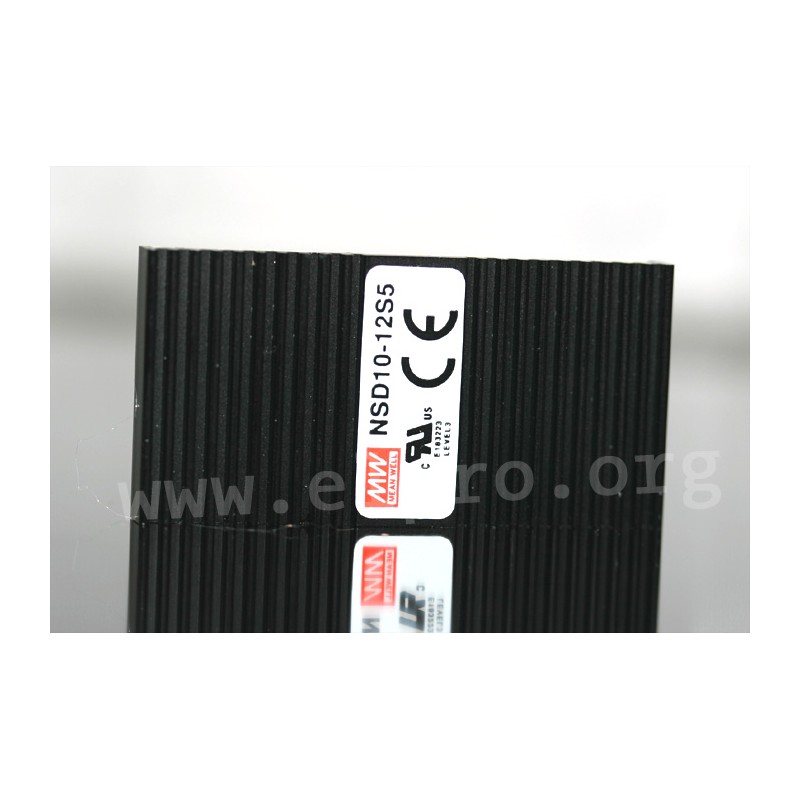

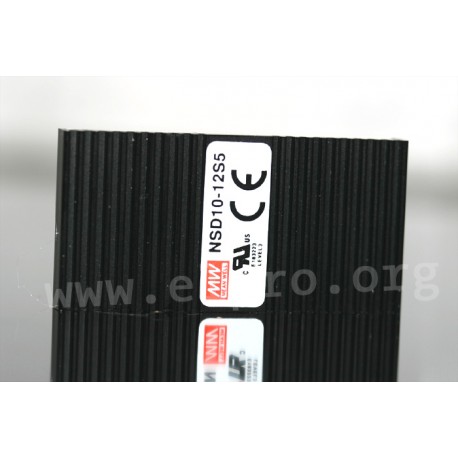

• open frame housing with integrated heatsink
• single output
• for direct PCB mounting
• wide input voltage range 4:1
• overload protection by power limiting, auto recovery
• built-in remote on/off control
• DC decoupling of input and output
• regulated output voltage
• short-circuit proof
• >105% over load protection
• 2% output voltage tolerance
• ripple & noise: 75 mVp-p
• withstand voltage: 1000V DC
• operating temperature: -25 to +70°C
• by Mean Well
• weight: 20g

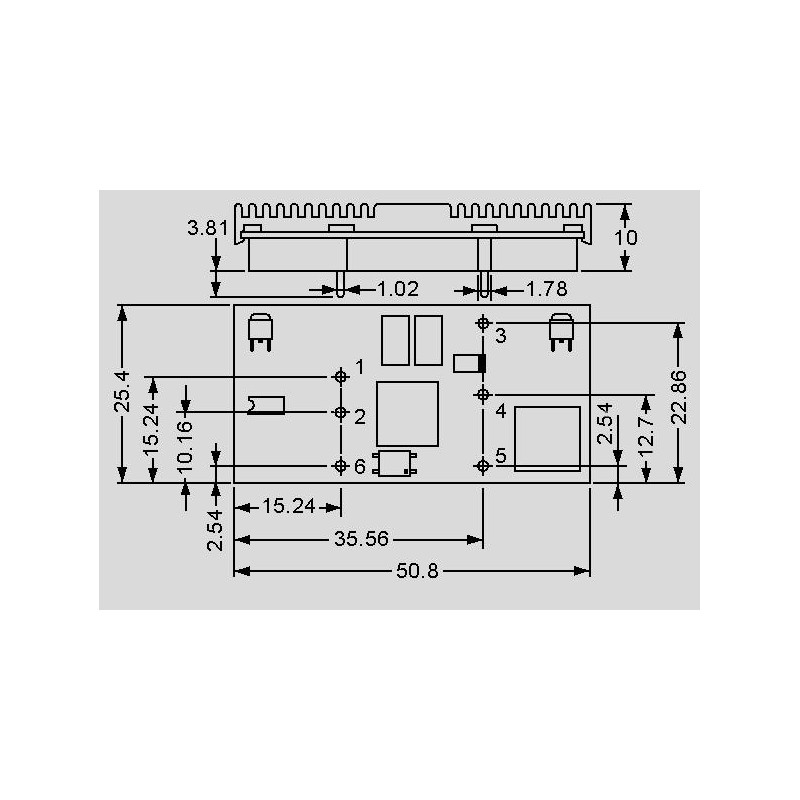

• pin assignment:
pin 1: +UIN
pin 2: -UIN
pin 3: +UOUT
pin 4: not connected
pin 5: -UOUT
pin 6: CTRL

Meanwell NSD10 series

NSD10-48S15

33457 NSD10-48S15 NSD10-48S15 4711287466132 DC/DC-converter-modules NSD10 by Meanwell. • output: 10.05 W• open frame housing with integrated heatsink• single output• for direct PCB mounting• wide input voltage range 4:1• overload protection by power limiting, auto recovery• built-in remote on/off control• DC decoupling of input and output• regulated output voltage• short-circuit proof• >105% over load protection• 2% output voltage tolerance• ripple & noise: 75 mVp-p• withstand voltage: 1000V DC• operating temperature: -25 to +70°C• by Mean Well• weight: 20g • pin assignment:pin 1: +UINpin 2: -UINpin 3: +UOUTpin 4: not connectedpin 5: -UOUTpin 6: CTRL

Specifications

manufacturer
Manufacturer's name NSD10-48S15
GTIN 4711287466132
Input [V DC] 22...72
Output [V] 15
Efficiency [%] 80
Output current range [A] 0,03...0,67
Ripple [mV] 75
Data Sheet

Unit price

9,99 €

Stock: 0
Further delivery:
CW 22/2025
