NPP-1700-24

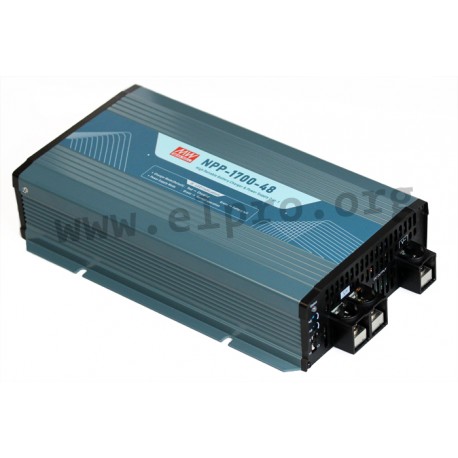

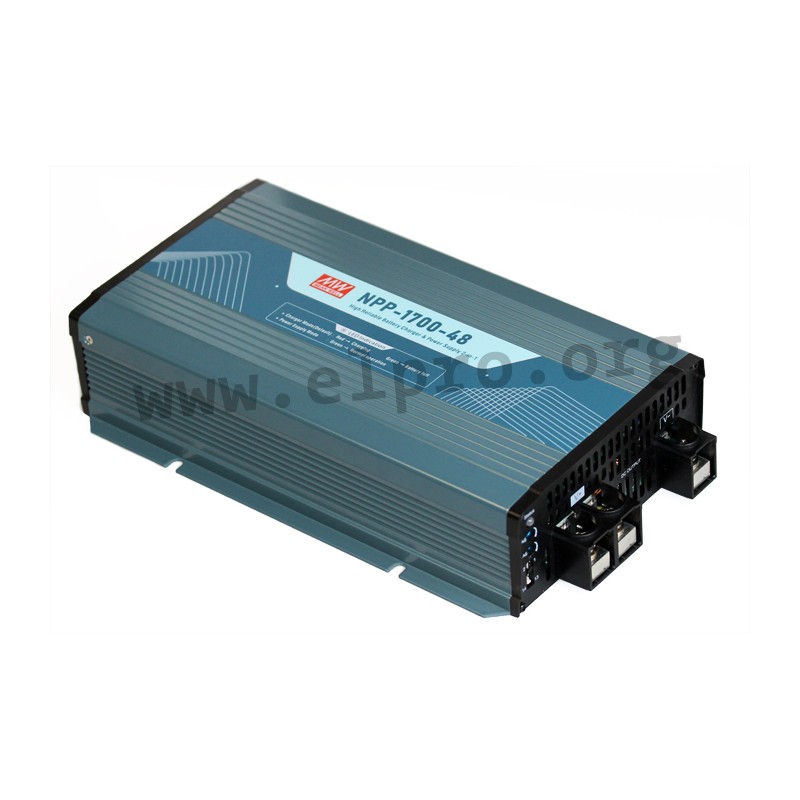

Mean Well battery charger series NPP-1700

External battery chargers with 1700W, a 3-stage charging curve, a remote ON/OFF control and a built-in fan. These devices are suitable for lead-acid batteries, can be used as power supplies as well as battery chargers and are protected against overload, overtemperature, short circuit as well as overvoltage. They have a potentiometer for adjusting the output voltage / output current and comply with EN62368-1 as well as EN60335-1/2-29. We offer the following types of this Mean Well series: NPP-1700-12, NPP-1700-24 and NPP-1700-48.

  • output: 1428 to 1680W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • AC current: 9,3A
  • maximal input inrush current: 50A
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • dimensions: 300x184x70mm
  • weight: 2960g
NPP-1700-24, Mean Well external battery chargers, 1700W, for lead-acid batteries, NPP-1700 series

NPP-1700-24

241306 NPP-1700-24 NPP-1700-24 4711287421599 Mean Well battery charger series NPP-1700. External battery chargers with 1700W, a 3-stage charging curve, a remote ON/OFF control and a built-in fan. These devices are suitable for lead-acid batteries, can be used as power supplies as well as battery chargers and are protected against overload, overtemperature, short circuit as well as overvoltage. They have a potentiometer for adjusting the output voltage / output current and comply with EN62368-1 as well as EN60335-1/2-29. We offer the following types of this Mean Well series: NPP-1700-12, NPP-1700-24 and NPP-1700-48. output: 1428 to 1680W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC AC current: 9,3A maximal input inrush current: 50A withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +70°C dimensions: 300x184x70mm weight: 2960g

Specifications

manufacturer
Manufacturer's name NPP-1700-24
GTIN 4711287421599
Charging voltage [V] 28,8
Float charge voltage [V] 27,6
Recommended accu capacity [Ah] 200...640
Efficiency [%] 93
Output current [A] 50
Data Sheet

Unit price

287,39 €

Volume discounts

Quantity Unit price
50 + 282,49 €

Stock: 16
Next incoming goods:
CW 05/2025
52 units

Further delivery:
CW 16/2025
