NPF-90D-15

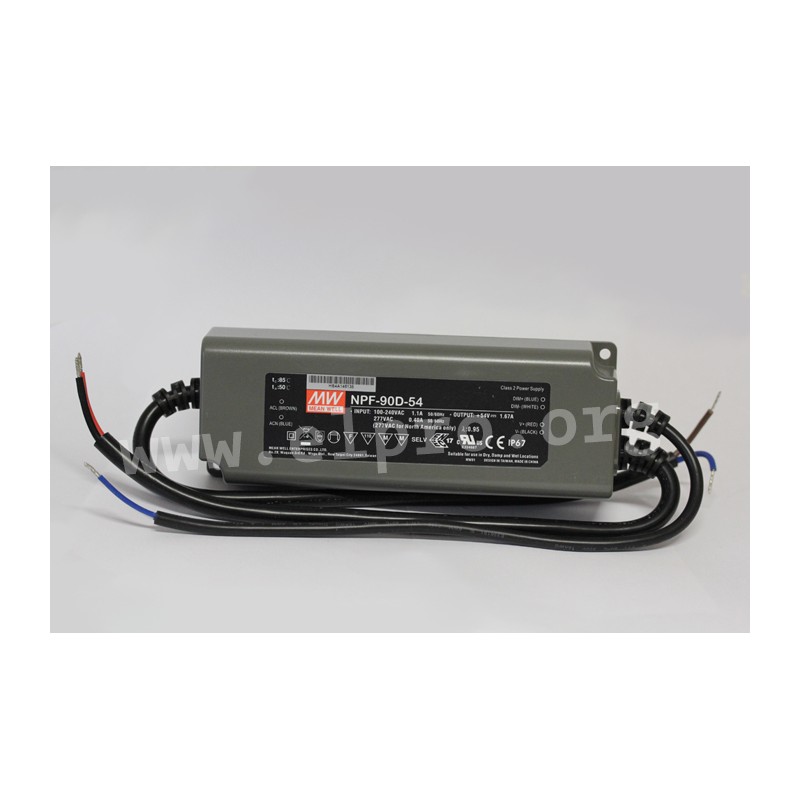

Mean Well LED driver series NPF-90D

LED drivers in a plastic housing (IP67) with a low no-load power, 90W and a 3 in 1 dimming function (external voltage 0 to 10V DC, PWM, potentiometer). These devices are protected against overload (auto recovery), short circuit as well as overvoltage and comply with EN61000-3-2 class C, EN55015, EN61347-1 as well as EN61347-2-13. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: NPF-90D-12, NPF-90D-12EU, NPF-90D-15, NPF-90D-20, NPF-90D-24, NPF-90D-30, NPF-90D-36, NPF-90D-42, NPF-90D-48 and NPF-90D-54.

  • single output
  • output: 90 to 90,3W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 60A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -40 to +85°C
  • dimensions: 171x63x37,5mm
  • weight: 770g
Meanwell NPF-90D series

NPF-90D-15

44948 NPF-90D-15 NPF-90D-15 4711287459660 Mean Well LED driver series NPF-90D. LED drivers in a plastic housing (IP67) with a low no-load power, 90W and a 3 in 1 dimming function (external voltage 0 to 10V DC, PWM, potentiometer). These devices are protected against overload (auto recovery), short circuit as well as overvoltage and comply with EN61000-3-2 class C, EN55015, EN61347-1 as well as EN61347-2-13. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: NPF-90D-12, NPF-90D-12EU, NPF-90D-15, NPF-90D-20, NPF-90D-24, NPF-90D-30, NPF-90D-36, NPF-90D-42, NPF-90D-48 and NPF-90D-54. single output output: 90 to 90,3W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 60A no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC operating temperature: -40 to +85&deg;C dimensions: 171x63x37,5mm weight: 770g

Specifications

manufacturer
Manufacturer's name NPF-90D-15
GTIN 4711287459660
Output voltage [V] 15
Phase 2 phase
Efficiency [%] 89,5
Output current range [A] 6
Output voltage tolerance: [%] 4
Output power [W] 90
Ripple [mVp-p] 150
Data Sheet

Unit price

34,89 €

Stock: 0
Further delivery:
CW 11/2025
