NPF-90-24

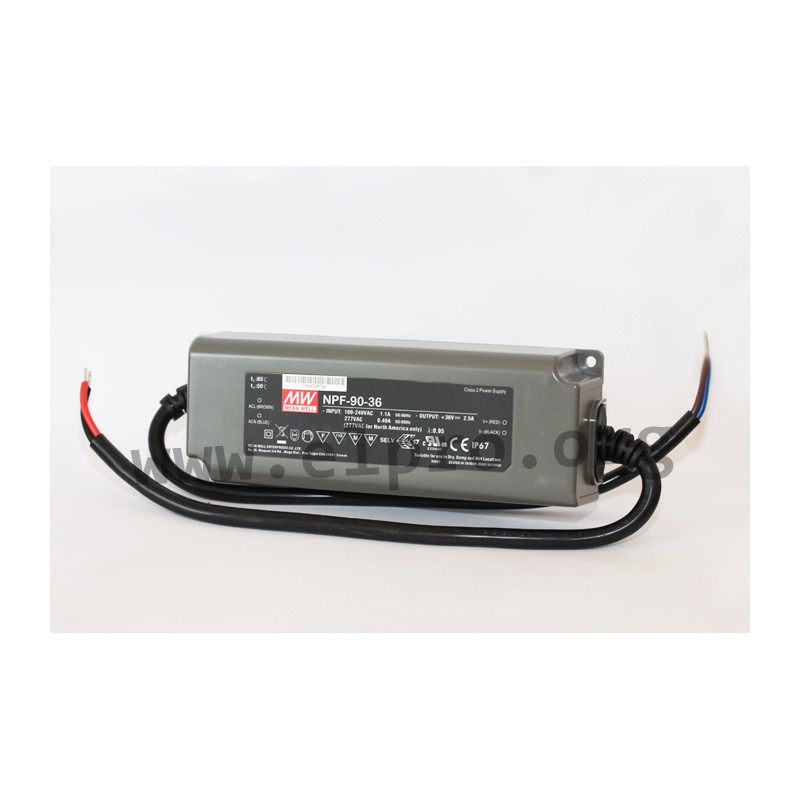

Mean Well LED driver series NPF-90

LED drivers in a plastic housing (IP67) with a constant voltage / constant current (mixed mode), a universal input, 90W and a low no-load power. These devices are suitable for LED lighting applications and comply with EN61000-3-2 class C, EN55015, EN61347-1 as well as EN61347-2-13. They are protected against overload (auto recovery), overvoltage as well as short circuit and have a built-in active PFC function. We offer the following types of this Mean Well series: NPF-90-12, NPF-90-15, NPF-90-20, NPF-90-24, NPF-90-30, NPF-90-36, NPF-90-42, NPF-90-48 and NPF-90-54.

  • single output
  • output: 90 to 90,3W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 60A
  • no-load power: <0,15W
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -40 to +85°C
  • dimensions: 171x63x37,5mm
  • weight: 770g

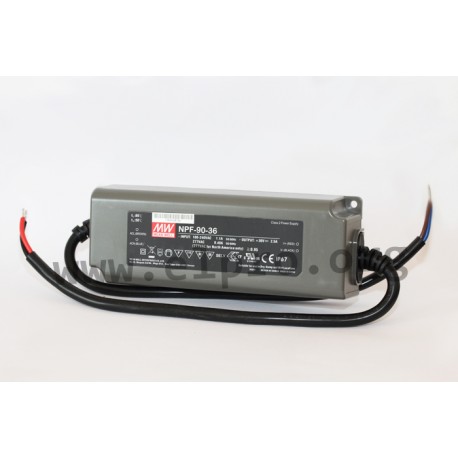

Meanwell NPF-90 series

NPF-90-24

44941 NPF-90-24 NPF-90-24 4711287459264 Mean Well LED driver series NPF-90. LED drivers in a plastic housing (IP67) with a constant voltage / constant current (mixed mode), a universal input, 90W and a low no-load power. These devices are suitable for LED lighting applications and comply with EN61000-3-2 class C, EN55015, EN61347-1 as well as EN61347-2-13. They are protected against overload (auto recovery), overvoltage as well as short circuit and have a built-in active PFC function. We offer the following types of this Mean Well series: NPF-90-12, NPF-90-15, NPF-90-20, NPF-90-24, NPF-90-30, NPF-90-36, NPF-90-42, NPF-90-48 and NPF-90-54. single output output: 90 to 90,3W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 60A no-load power: &lt;0,15W withstand voltage I/P-O/P: 3750V AC operating temperature: -40 to +85&deg;C dimensions: 171x63x37,5mm weight: 770g

Specifications

manufacturer
Manufacturer's name NPF-90-24
GTIN 4711287459264
Output voltage [V] 24
Phase 2 phase
Efficiency [%] 91
Output current range [A] 3,75
Output voltage tolerance: [%] 3
Output power [W] 90
Ripple [mVp-p] 150
Data Sheet

Unit price

30,59 €

Volume discounts

Quantity Unit price
50 + 28,69 €

Stock: 0
Next incoming goods:
CW 04/2025
164 units

Further delivery:
CW 16/2025
