NPF-40-30

Mean Well LED driver series NPF-40

LED drivers in a plastic housing (IP67) with a universal input, a low no-load power, 40W and a constant voltage / constant current (mixed mode). These devices comply with EN61000-3-2, class C, EN55015, EN61347-1 as well as EN61347-2-13 and are protected against overload (auto recovery), short circuit as well as overvoltage. They are suitable for LED lighting applications, are not dimmable and have a built-in active PFC function. We offer the following types of this Mean Well series: NPF-40-12, NPF-40-15, NPF-40-20, NPF-40-24, NPF-40-30, NPF-40-36, NPF-40-42, NPF-40-48 and NPF-40-54.

  • single output
  • output: 40 to 41,04W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • output constant current range: 60 to 100%
  • maximal input inrush current: 50A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -40 to +80°C

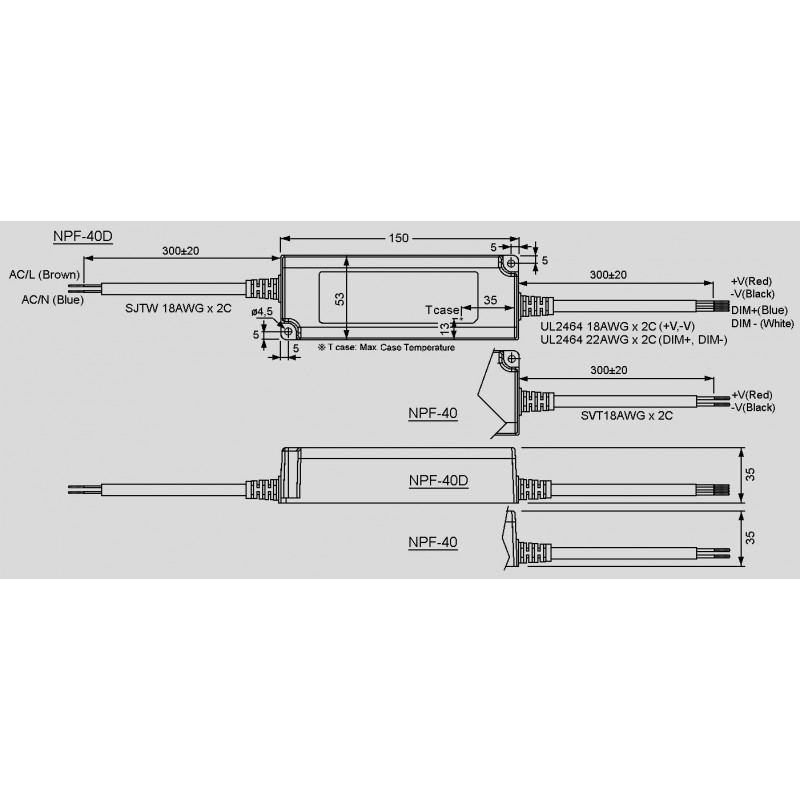

  • dimensions: 150x53x35mm
  • weight: 490g
Meanwell NPF-40 series

NPF-40-30

45579 NPF-40-30 NPF-40-30 4711287459097 Mean Well LED driver series NPF-40. LED drivers in a plastic housing (IP67) with a universal input, a low no-load power, 40W and a constant voltage / constant current (mixed mode). These devices comply with EN61000-3-2, class C, EN55015, EN61347-1 as well as EN61347-2-13 and are protected against overload (auto recovery), short circuit as well as overvoltage. They are suitable for LED lighting applications, are not dimmable and have a built-in active PFC function. We offer the following types of this Mean Well series: NPF-40-12, NPF-40-15, NPF-40-20, NPF-40-24, NPF-40-30, NPF-40-36, NPF-40-42, NPF-40-48 and NPF-40-54. single output output: 40 to 41,04W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC output constant current range: 60 to 100% maximal input inrush current: 50A no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC operating temperature: -40 to +80°C dimensions: 150x53x35mm weight: 490g

Specifications

manufacturer
Manufacturer's name NPF-40-30
GTIN 4711287459097
Output voltage [V] 30
Efficiency [%] 89
Output current range [A] 1,34
Output voltage tolerance: [%] 3
Output power [W] 40,2
Ripple [mVp-p] 200
Data Sheet

Unit price

21,09 €

Volume discounts

Quantity Unit price
50 + 19,59 €

Stock: 55
Further delivery:
CW 16/2025
