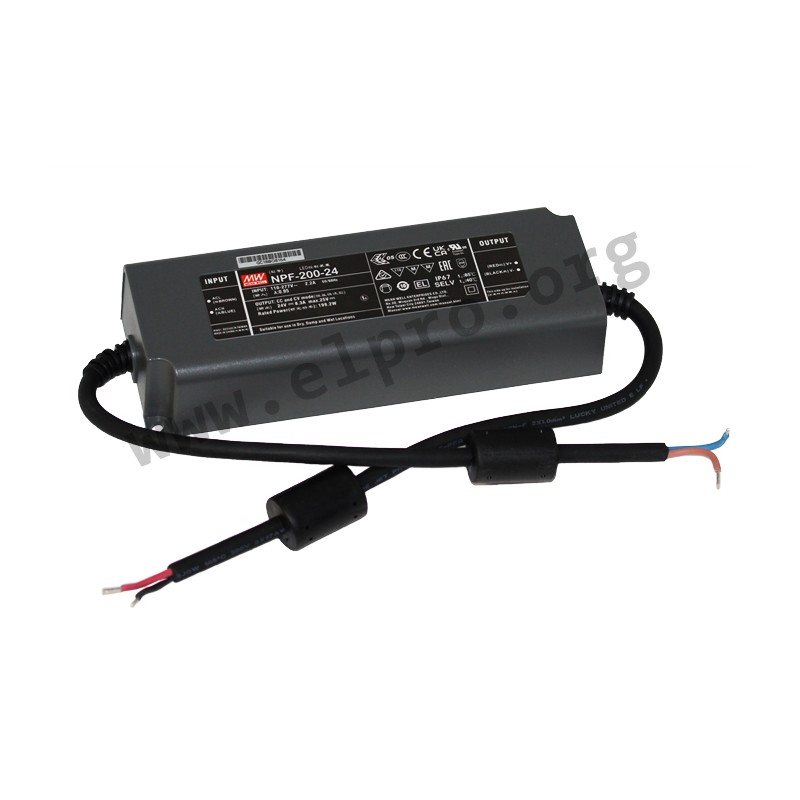

NPF-200-48

Mean Well LED driver series NPF-200

LED drivers in a plastic housing (IP67) with a low no-load power consumption, a constant voltage/constant current (CV/CC) and 200W. These flicker-free devices are suitable for use as an emergency lighting control as well as for LED lighting applications and are protected against overvoltage, overload, overtemperature as well as short circuit. They comply with UL8750, EN61347-2-13, EN61347-1, IEC61347-2-13, IEC61347-1 as well as EN55015 and have a built-in active PFC function. We offer the following types of this Mean Well series: NPF-200-12, NPF-200-24, NPF-200-36, NPF-200-42, NPF-200-48 and NPF-200-54.

  • single output
  • output: 180 to 200,3W
  • input voltage: 100 to 350V AC (47 to 63Hz), 142 to 431V DC
  • input current: 1,1A
  • maximal input inrush current: 65A
  • leakage current: 0,25mA
  • connection type: Litze
  • cable length: 30cm
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -40 to +85°C
  • dimensions: 195x68x39,5mm
  • weight: 1030g

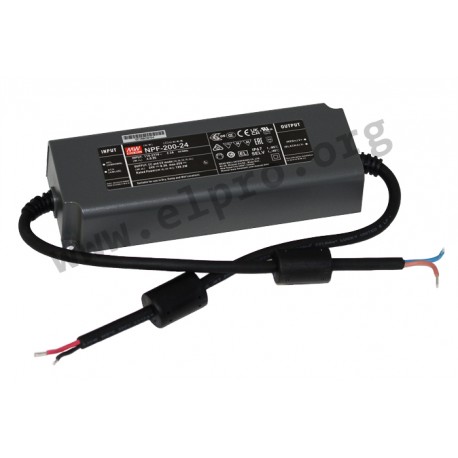

NPF-200-48, Mean Well LED drivers, 200W, IP67, constant voltage, NPF-200 series

NPF-200-48

237636 NPF-200-48 NPF-200-48 4711287459455 Mean Well LED driver series NPF-200. LED drivers in a plastic housing (IP67) with a low no-load power consumption, a constant voltage/constant current (CV/CC) and 200W. These flicker-free devices are suitable for use as an emergency lighting control as well as for LED lighting applications and are protected against overvoltage, overload, overtemperature as well as short circuit. They comply with UL8750, EN61347-2-13, EN61347-1, IEC61347-2-13, IEC61347-1 as well as EN55015 and have a built-in active PFC function. We offer the following types of this Mean Well series: NPF-200-12, NPF-200-24, NPF-200-36, NPF-200-42, NPF-200-48 and NPF-200-54. single output output: 180 to 200,3W input voltage: 100 to 350V AC (47 to 63Hz), 142 to 431V DC input current: 1,1A maximal input inrush current: 65A leakage current: 0,25mA connection type: Litze cable length: 30cm withstand voltage I/P-O/P: 3750V AC operating temperature: -40 to +85°C dimensions: 195x68x39,5mm weight: 1030g

Specifications

manufacturer
Manufacturer's name NPF-200-48
GTIN 4711287459455
Output voltage [V] 48
Efficiency [%] 94
Output current [A] 4,17
Output voltage tolerance: [%] ±2
Output power [W] 200,1
Ripple [mVp-p] 250
Data Sheet

Unit price

39,29 €

Volume discounts

Quantity Unit price
50 + 37,99 €

Stock: 41
Further delivery:
CW 16/2025
