NPF-120D-30

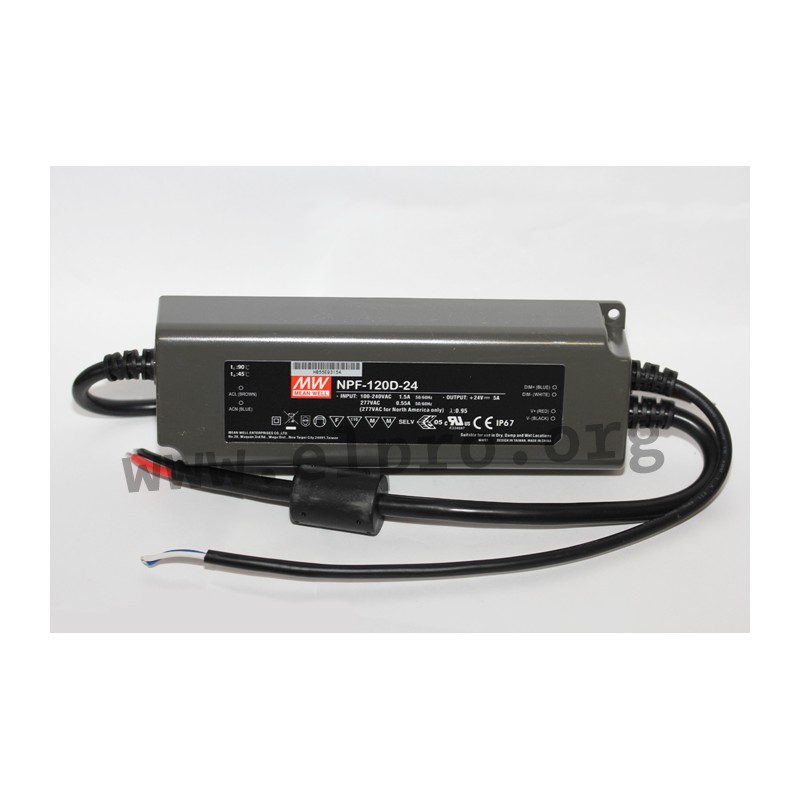

Mean Well LED driver series NPF-120D

LED drivers in a plastic housing (IP67) with a constant current, 120W, a 3 in 1 dimming function (external voltage 0 to 10V DC, PWM, potentiometer) and a low no-load power. These devices comply with EN61000-3-2, class C, EN55015, EN61347-1 as well as EN61347-2-13 and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: NPF-120D-12, NPF-120D-15, NPF-120D-20, NPF-120D-24, NPF-120D-30, NPF-120D-36, NPF-120D-42, NPF-120D-48 and NPFD-120-54.

  • single output
  • output: 120 to 124,2W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 60A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -40 to +90°C

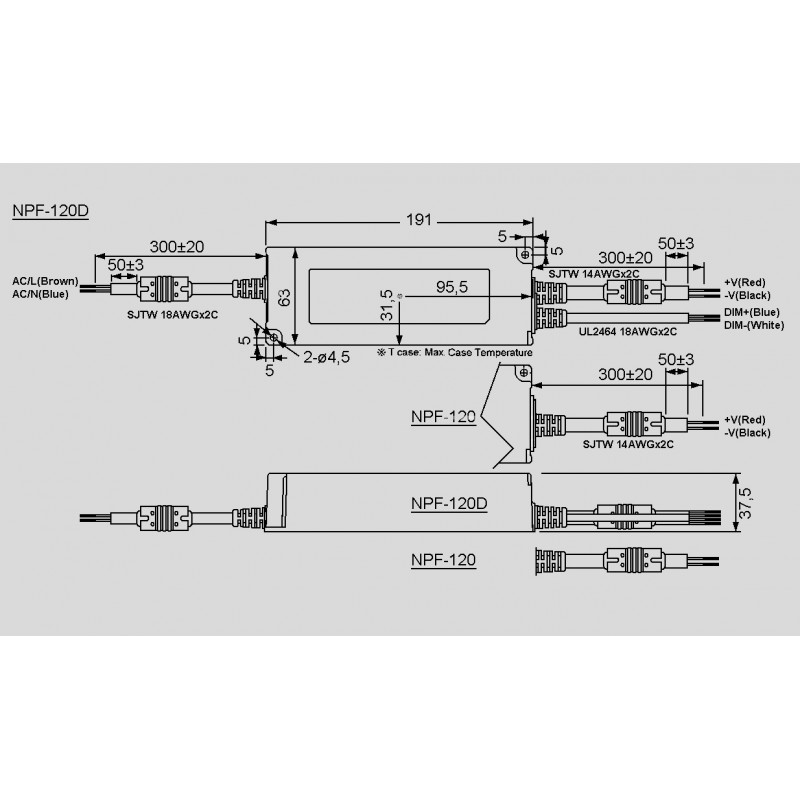

  • dimensions: 191x63x37,5mm
  • weight: 970g
Mean Well NPF-120D series

NPF-120D-30

104639 NPF-120D-30 NPF-120D-30 4711287459783 Mean Well LED driver series NPF-120D. LED drivers in a plastic housing (IP67) with a constant current, 120W, a 3 in 1 dimming function (external voltage 0 to 10V DC, PWM, potentiometer) and a low no-load power. These devices comply with EN61000-3-2, class C, EN55015, EN61347-1 as well as EN61347-2-13 and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: NPF-120D-12, NPF-120D-15, NPF-120D-20, NPF-120D-24, NPF-120D-30, NPF-120D-36, NPF-120D-42, NPF-120D-48 and NPFD-120-54. single output output: 120 to 124,2W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 60A no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC operating temperature: -40 to +90°C dimensions: 191x63x37,5mm weight: 970g

Specifications

manufacturer
Manufacturer's name NPF-120D-30
GTIN 4711287459783
Output voltage [V] 30
Efficiency [%] 89
Output current [A] 4
Output voltage tolerance: [%] 3
Output power [W] 120
Ripple [mVp-p] 200
Data Sheet

Unit price

40,09 €

Volume discounts

Quantity Unit price
50 + 39,19 €

Stock: 46
Further delivery:
CW 16/2025
