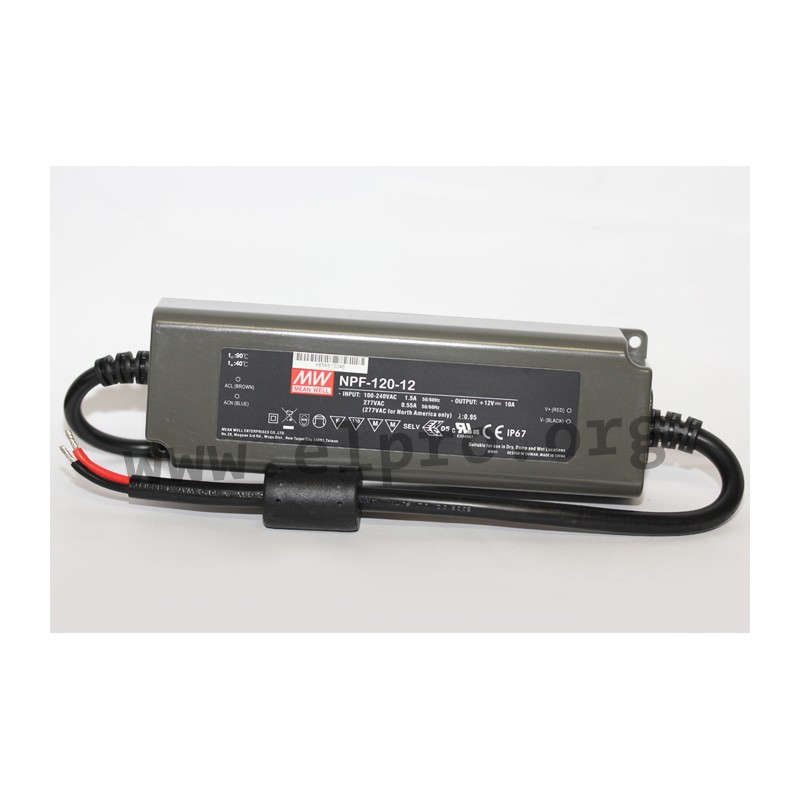

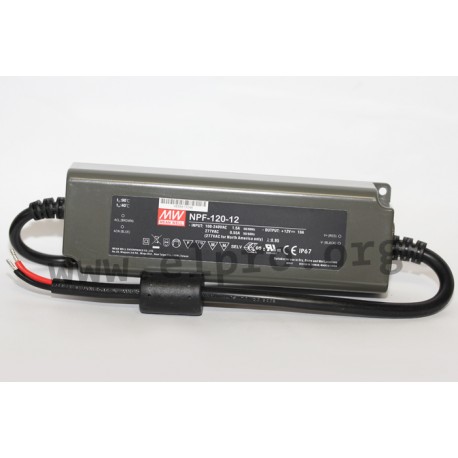

NPF-120-12

Mean Well LED driver series NPF-120

LED drivers in a plastic housing (IP67) with a fixed output voltage, 120W and a low no-load power. These devices comply with EN61000-3-2, class C, EN55015, EN61347-1 as well as EN61347-2-13 and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: NPF-120-12, NPF-120-15, NPF-120-20, NPF-120-24, NPF-120-30, NPF-120-36, NPF-120-42, NPF-120-48 and NPF-120-54.

  • single output
  • output: 120 to 124,2W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 60A
  • no-load power: <0,15W
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -40 to +90°C

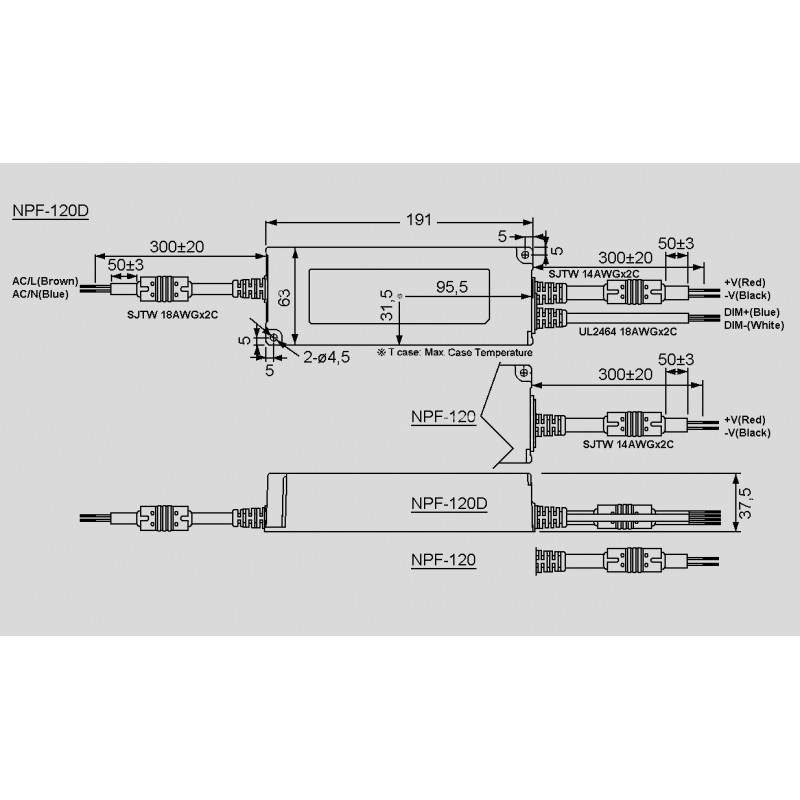

  • dimensions: 191x63x37,5mm
  • weight: 970g
Mean Well NPF-120 series

NPF-120-12

104626 NPF-120-12 NPF-120-12 4711287459325 Mean Well LED driver series NPF-120. LED drivers in a plastic housing (IP67) with a fixed output voltage, 120W and a low no-load power. These devices comply with EN61000-3-2, class C, EN55015, EN61347-1 as well as EN61347-2-13 and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: NPF-120-12, NPF-120-15, NPF-120-20, NPF-120-24, NPF-120-30, NPF-120-36, NPF-120-42, NPF-120-48 and NPF-120-54. single output output: 120 to 124,2W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 60A no-load power: &lt;0,15W withstand voltage I/P-O/P: 3750V AC operating temperature: -40 to +90°C dimensions: 191x63x37,5mm weight: 970g

Specifications

manufacturer
Manufacturer's name NPF-120-12
GTIN 4711287459325
Output voltage [V] 12
Efficiency [%] 89
Output current [A] 10
Output voltage tolerance: [%] 4
Output power [W] 120
Ripple [mVp-p] 150
Data Sheet

Unit price

33,89 €

Volume discounts

Quantity Unit price
50 + 32,99 €

Stock: 314
Further delivery:
CW 16/2025
