NPB-360-48TB

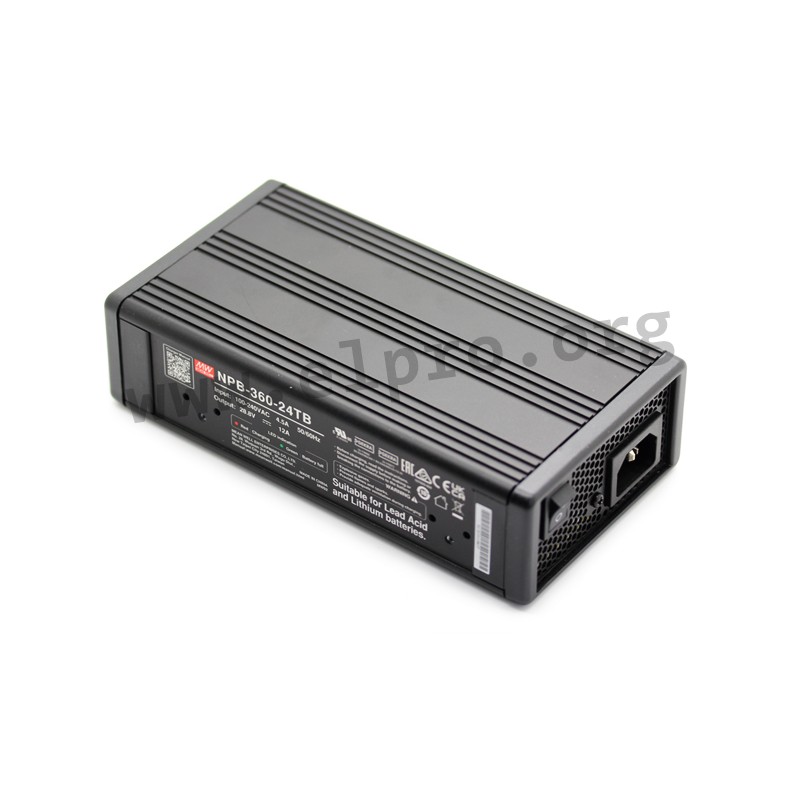

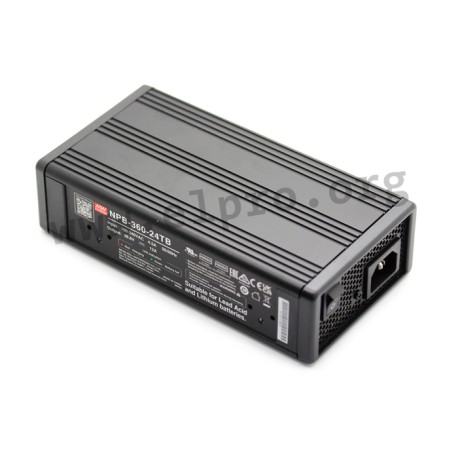

Mean Well battery charger series NPB-360

External battery chargers with 360W, a universal input and a DIL switch for selecting the charging stage (2/3). These devices have a built-in active PFC function, are suitable for Li-ion as well as lead-acid batteries and are protected against overvoltage, voltage reversal, short circuit as well as overtemperature. They have an adjustable charging voltage as well as current and comply with EN62368-1, EN60335-1/2-29, EN55032 class B, EN61000-3-2 class A as well as EN61000-3-3. We offer the following types of this Mean Well series: NPB-360-12TB, NPB-360-24TB and NPB-360-48TB with terminal blocks, NPB-360-12XLR, NPB-360-24XLR and NPB-360-48XLR with an XLR connector as well as NPB-360-12AD1, NPB-360-24AD1 and NPB-360-48AD1 with an Anderson connector.

  • output: 304 to 364,8W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • AC current: 2,2A
  • maximal input inrush current: 50A
  • operating temperature: -30 to +70°C
  • storage temperature: -40 to +85°C
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • dimensions: 180x96x49mm
  • weight: 1300g
NPB-360-48TB, Mean Well external battery chargers, 360W, for lead-acid and Li-ion batteries, NPB-360 series

NPB-360-48TB

241284 NPB-360-48TB NPB-360-48TB 4711287421292 Mean Well battery charger series NPB-360. External battery chargers with 360W, a universal input and a DIL switch for selecting the charging stage (2/3). These devices have a built-in active PFC function, are suitable for Li-ion as well as lead-acid batteries and are protected against overvoltage, voltage reversal, short circuit as well as overtemperature. They have an adjustable charging voltage as well as current and comply with EN62368-1, EN60335-1/2-29, EN55032 class B, EN61000-3-2 class A as well as EN61000-3-3. We offer the following types of this Mean Well series: NPB-360-12TB, NPB-360-24TB and NPB-360-48TB with terminal blocks, NPB-360-12XLR, NPB-360-24XLR and NPB-360-48XLR with an XLR connector as well as NPB-360-12AD1, NPB-360-24AD1 and NPB-360-48AD1 with an Anderson connector. output: 304 to 364,8W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC AC current: 2,2A maximal input inrush current: 50A operating temperature: -30 to +70°C storage temperature: -40 to +85°C withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC dimensions: 180x96x49mm weight: 1300g

Specifications

manufacturer
Manufacturer's name NPB-360-48TB
GTIN 4711287421292
Charging voltage [V] 57,6
Float charge voltage [V] 55,2
Recommended accu capacity [Ah] 20...65
Efficiency [%] 92,5
Output current [A] 6
Data Sheet

Unit price

73,29 €

Volume discounts

Quantity Unit price
50 + 71,69 €

Stock: 0
Next incoming goods:
CW 05/2025
25 units

Further delivery:
CW 12/2025
