NPB-240-24XLR

Mean Well battery charger series NPB-240

External battery chargers with 240W, a universal input, an adjustable charging voltage/current, an LED status indicator and a low no-load power (<0,15W). These devices are suitable for Li-ion as well as lead-acid batteries and are protected against overvoltage, voltage reversal, short circuit as well as overtemperature. They have a DIL switch for selecting the charging stage (2/3) and comply with EN62368-1, EN60335-1/2-29, EN55032 class B, EN61000-3-2 class A as well as EN61000-3-3. We offer the following types of this Mean Well series: NPB-240-12TB, NPB-240-24TB and NPB-240-48TB as well as the versions NPB-240-12XLR, NPB-240-24XLR and NPB-240-48XLR with an XLR connector and the types NPB-240-12AD1, NPB-240-24AD1 and NPB-240-48AD1 with an Anderson connector.

  • output: 205,2 to 243,2W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • AC current: 1,5A
  • maximal input inrush current: 50A
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • storage temperature: -40 to +85°C
  • dimensions: 180x96x49mm
  • weight: 1300g

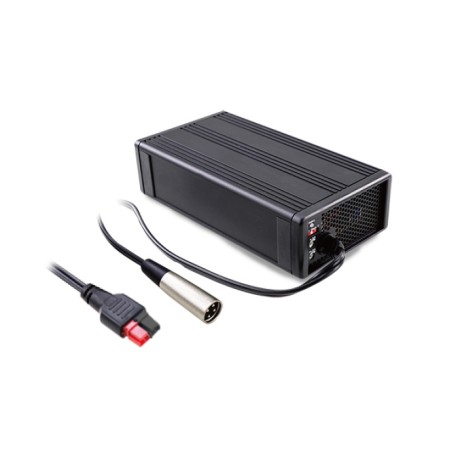

NPB-240-24XLR, Mean Well external battery chargers, 240W, for lead-acid and Li-ion batteries, NPB-240 series

NPB-240-24XLR

245027 NPB-240-24XLR NPB-240-24XLR 4711287421186 Mean Well battery charger series NPB-240. External battery chargers with 240W, a universal input, an adjustable charging voltage/current, an LED status indicator and a low no-load power (&lt;0,15W). These devices are suitable for Li-ion as well as lead-acid batteries and are protected against overvoltage, voltage reversal, short circuit as well as overtemperature. They have a DIL switch for selecting the charging stage (2/3) and comply with EN62368-1, EN60335-1/2-29, EN55032 class B, EN61000-3-2 class A as well as EN61000-3-3. We offer the following types of this Mean Well series: NPB-240-12TB, NPB-240-24TB and NPB-240-48TB as well as the versions NPB-240-12XLR, NPB-240-24XLR and NPB-240-48XLR with an XLR connector and the types NPB-240-12AD1, NPB-240-24AD1 and NPB-240-48AD1 with an Anderson connector. output: 205,2 to 243,2W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC AC current: 1,5A maximal input inrush current: 50A withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +70°C storage temperature: -40 to +85°C dimensions: 180x96x49mm weight: 1300g

Specifications

manufacturer
Manufacturer's name NPB-240-24XLR
GTIN 4711287421186
Charging voltage [V] 28,8
Float charge voltage [V] 27,6
Recommended accu capacity [Ah] 30...100
Efficiency [%] 92
Output current [A] 8
Data Sheet

Unit price

58,19 €

Stock: 0
Further delivery:
CW 17/2025
