NPB-120-12XLR

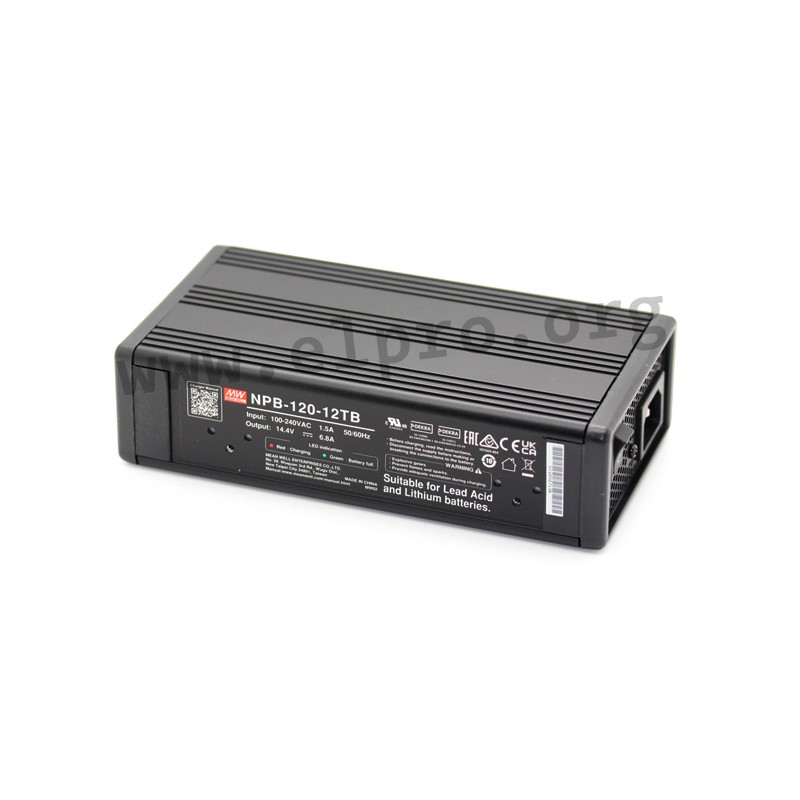

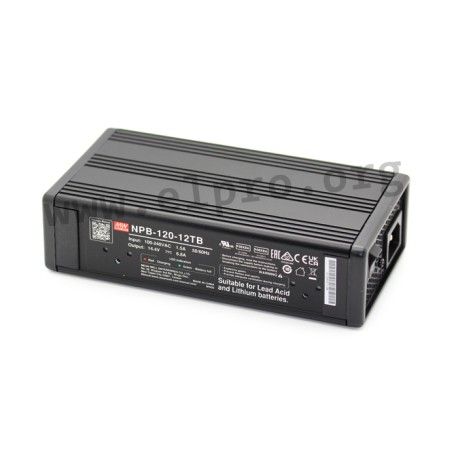

Mean Well battery charger series NPB-120

External battery chargers in a compact housing with 120W, a universal input, an LED indicator for charging status, an adjustable charging voltage / charging current, a low no-load power (<0,15W) and terminal blocks. These devices have a built-in active PFC function and are protected against voltage reversal, overvoltage, short circuit as well as overtemperature. They are suitable for lead-acid as well as Li-ion batteries and comply with EN60335-1/2-29, EN55032 class B, EN55015-1 class B, EN61000-3-2 class A as well as EN61000-3-3. We offer the following types of this Mean Well series: NPB-120-12TB, NPB-120-24TB and NPB-120-48TB as well as the versions NPB-120-12AD1, NPB-120-24AD1 and NPB-120-48AD1 with an Anderson connector and the types NPB-120-12XLR, NPB-120-24XLR and NPB-120-48XLR with an XLR connector.

  • output: 103,4 to 121,6W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • input AC current: 0,8A
  • maximal input inrush current: 55A
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • dimensions: 180x96x49mm
  • weight: 1300g
NPB-120-12XLR, Mean Well external battery chargers, 120W, for lead-acid and Li-ion batteries, NPB-120 series

NPB-120-12XLR

245019 NPB-120-12XLR NPB-120-12XLR 4711287421063 Mean Well battery charger series NPB-120. External battery chargers in a compact housing with 120W, a universal input, an LED indicator for charging status, an adjustable charging voltage / charging current, a low no-load power (&lt;0,15W) and terminal blocks. These devices have a built-in active PFC function and are protected against voltage reversal, overvoltage, short circuit as well as overtemperature. They are suitable for lead-acid as well as Li-ion batteries and comply with EN60335-1/2-29, EN55032 class B, EN55015-1 class B, EN61000-3-2 class A as well as EN61000-3-3. We offer the following types of this Mean Well series: NPB-120-12TB, NPB-120-24TB and NPB-120-48TB as well as the versions NPB-120-12AD1, NPB-120-24AD1 and NPB-120-48AD1 with an Anderson connector and the types NPB-120-12XLR, NPB-120-24XLR and NPB-120-48XLR with an XLR connector. output: 103,4 to 121,6W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC input AC current: 0,8A maximal input inrush current: 55A withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +70°C dimensions: 180x96x49mm weight: 1300g

Specifications

manufacturer
Manufacturer's name NPB-120-12XLR
GTIN 4711287421063
Charging voltage [V] 14,4
Float charge voltage [V] 13,8
Recommended accu capacity [Ah] 20...90
Efficiency [%] 86,5
Output current [A] 6,8
Data Sheet

Unit price

46,79 €

Stock: 0
Further delivery:
CW 12/2025
