NMS-240-12

Mean Well power supply series NMP

Output modules for frontends. These devices have a parallel function, a DC-OK signal, are protected against overload, overtemperature, overvoltage as well as short circuit and have a auxiliary DC power of 5V/10mA. The oputput current and voltage are programmable and can be switched ON and OFF via a remote signal. These DC/DC output modules are only operable in combination with a frontend (NMP650/NMP1K2). We offer the following types of this Mean Well series: NMP650, NMP1K2, NMS-240-5, NMS-240-12, NMS-240-24 and NMS-240-48.

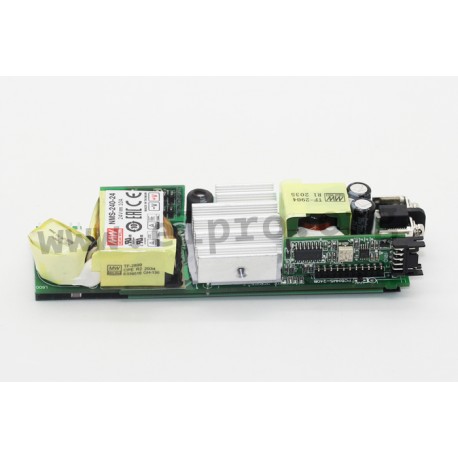

NMS-240-12, Mean Well modular switching power supplies, 650 and 1200W, NMP series

NMS-240-12

236173 NMS-240-12 NMS-240-12 4711287463995 Mean Well power supply series NMP. Output modules for frontends. These devices have a parallel function, a DC-OK signal, are protected against overload, overtemperature, overvoltage as well as short circuit and have a auxiliary DC power of 5V/10mA. The oputput current and voltage are programmable and can be switched ON and OFF via a remote signal. These DC/DC output modules are only operable in combination with a frontend (NMP650/NMP1K2). We offer the following types of this Mean Well series: NMP650, NMP1K2, NMS-240-5, NMS-240-12, NMS-240-24 and NMS-240-48.

Specifications

manufacturer
Manufacturer's name NMS-240-12
GTIN 4711287463995
Output voltage [V] 12
Output current [A] 20
Output voltage tolerance: [%] ±1
Output power [W] 240
Ripple [mVp-p] 150
Output voltage adjustment [V] 6...15
Data Sheet

Unit price

68,39 €

Volume discounts

Quantity Unit price
50 + 66,09 €

Stock: 85
Further delivery:
CW 12/2025
