NMP1K2

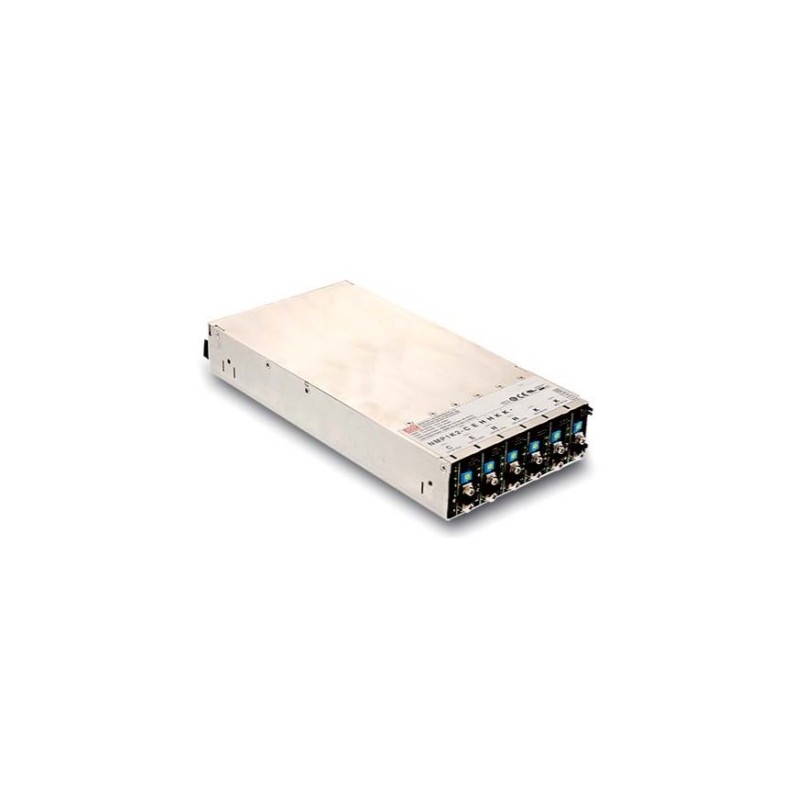

Mean Well power supply series NMP

Modular switching power supplies with 650W (NMP650) resp. 1200W (NMP1K2), a universal input, a parallel function, a low profile (1U), screw terminals and a fan. These devices are individually configurable and consist of a front panel with 4 (NMP650) resp. 6 slots (NMP1K2) as well as a separately available DC/DC output module (NMS_/NMD_). The power supplies are only operable in combination with an output module. They have a built-in auxiliary power of 5V/1,5A (NMP650) or 5V/2A (NMP1K2) as well as a built-in active PFC function, are protected against overload, overvoltage as well as short circuit and comply with EN60601-1 as well as EN62368-1. Furthermore, they are suitable for medical technology applications (2xMOPP) and the output voltage can be switched ON and OFF by a remote signal.
The output modules are also protected against overtemperature and have a built-in auxiliary DC output of 5V/10mA, a single (NMS_) or dual output (NMD_) as well as a programmable output voltage/current. We offer the following types of this Mean Well series: NMP650, NMP1K2, NMS-240-5, NMS-240-12, NMS-240-24, NMS-240-48 and NMD-240.

  • single or dual output (NMD_)
  • output: 650 and 1200W
  • input voltage: 90 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 40A
  • leakage current earth: <400µA
  • leakage current touch: <100µA
  • withstand voltage I/P-O/P: 4000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • weight NMP650: 1450g
  • weight NMP1K2: 2000g

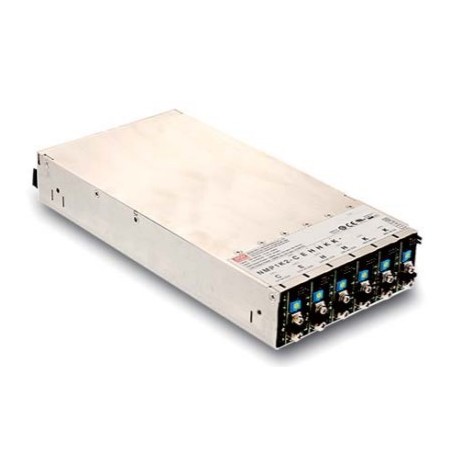

NMP1K2, Mean Well modular switching power supplies, 650 and 1200W, NMP series

NMP1K2

236170 NMP1K2 NMP1K2 4711232769615 Mean Well power supply series NMP. Modular switching power supplies with&nbsp;650W (NMP650) resp. 1200W (NMP1K2), a universal input, a parallel function, a low&nbsp;profile (1U), screw terminals and a fan. These devices are&nbsp;individually configurable and consist of a front panel with 4 (NMP650) resp. 6 slots (NMP1K2) as well as a separately available DC/DC output module (NMS_/NMD_). The power supplies are only operable in combination with an output module. They have a built-in auxiliary power of 5V/1,5A (NMP650) or 5V/2A (NMP1K2) as well as a&nbsp;built-in active PFC function, are protected against overload, overvoltage as well as short circuit and comply with EN60601-1 as well as EN62368-1. Furthermore, they are suitable for medical technology applications (2xMOPP) and the output voltage can be switched&nbsp;ON and OFF by a remote signal.The output modules are also protected against overtemperature and have a&nbsp;built-in auxiliary&nbsp;DC output of 5V/10mA, a single (NMS_) or dual output (NMD_) as well as a programmable output voltage/current. We offer the following types of this Mean Well series:&nbsp;NMP650, NMP1K2, NMS-240-5,&nbsp;NMS-240-12,&nbsp;NMS-240-24, NMS-240-48 and NMD-240. single or dual output (NMD_) output: 650 and 1200W input voltage: 90 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 40A leakage current earth: &lt;400&micro;A leakage current touch: &lt;100&micro;A withstand voltage I/P-O/P: 4000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +70&deg;C weight NMP650: 1450g weight NMP1K2: 2000g

Specifications

manufacturer
Manufacturer's name NMP1K2
GTIN 4711232769615
Output power [W] 1200
Data Sheet

Unit price

204,59 €

Volume discounts

Quantity Unit price
50 + 197,79 €

Stock: 87
Further delivery:
CW 16/2025
