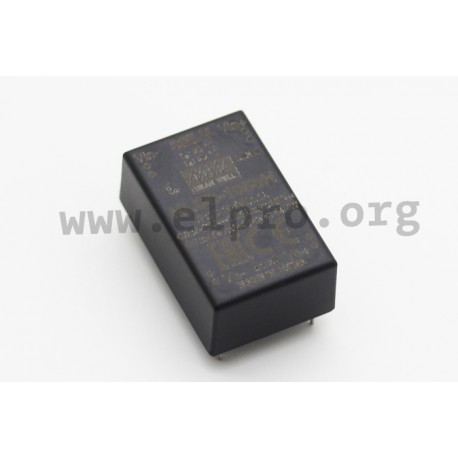

NLDD-500H

Mean Well DC/DC converter module series NLDD-H

DC/DC Step-Down LED drivers in a plastic housing (UL94V-0) with a constant current output, a wide input voltage range and a remote ON/OFF control. These devices are suitable for LED lightning applications and are protected against overtemperature as well as short circuit. They have a dimming function (PWM) and comply with IEC61547 as well as EN55015. Our product range comprises converters for direct PCB mounting (NLDD-_H) as well as models with stranded wires (NLDD-_HW). We offer the following types of this Mean Well series: NLDD-350H, NLDD-500H, NLDD-700H, NLDD-1050H, NLDD-1200H, NLDD-1400H, NLDD-350HW, NLDD-500HW, NLDD-700HW, NLDD-1050HW, NLDD-1200HW and NLDD-1400HW.

  • output current tolerance: ±5%
  • cable length NLDD-_HW: 10cm
  • operating temperature: -40 to +50°C
  • dimensions: 32,1x20,5x12,5mm
  • weight NLDD-_H: 15,6g
  • weight NLDD-_HW: 18g
NLDD-500H, Mean Well DC/DC step-down LED drivers, dimmable, NLDD-H series

NLDD-500H

237676 NLDD-500H NLDD-500H 4711287456539 Mean Well DC/DC converter module series NLDD-H. DC/DC Step-Down LED drivers in a plastic housing (UL94V-0) with a constant current output, a wide input voltage range and a remote ON/OFF control. These devices are suitable for LED lightning applications and are protected against overtemperature as well as short circuit. They have a dimming function (PWM) and comply with IEC61547 as well as EN55015. Our product range comprises converters for direct PCB mounting (NLDD-_H) as well as models with stranded wires (NLDD-_HW). We offer the following types of this Mean Well series: NLDD-350H, NLDD-500H, NLDD-700H, NLDD-1050H, NLDD-1200H, NLDD-1400H, NLDD-350HW, NLDD-500HW, NLDD-700HW, NLDD-1050HW, NLDD-1200HW and NLDD-1400HW. output current tolerance: ±5% cable length NLDD-_HW: 10cm operating temperature: -40 to +50°C dimensions: 32,1x20,5x12,5mm weight NLDD-_H: 15,6g weight NLDD-_HW: 18g

Specifications

manufacturer
Manufacturer's name NLDD-500H
GTIN 4711287456539
Input voltage range [V] 10...56
Efficiency [%] 96
Output current [A] 0,5
Ripple [mVp-p] 150
Output voltage range [V] 6...52
Data Sheet

Unit price

3,89 €

Volume discounts

Quantity Unit price
50 + 3,59 €

Stock: 64
Next incoming goods:
CW 04/2025
255 units

Further delivery:
CW 16/2025
