NID100-15

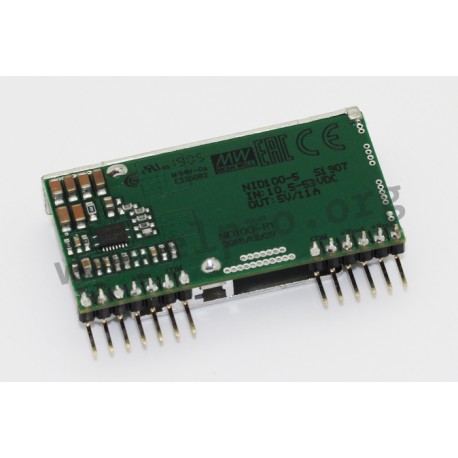

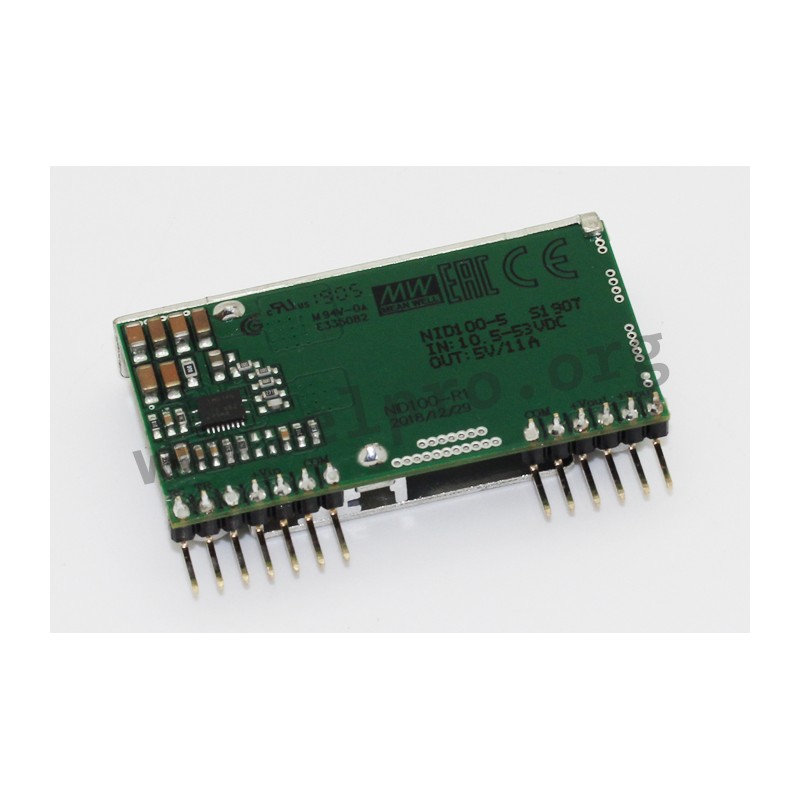

Mean Well DC/DC converter series NID100

Non-isolated DC/DC converters in an open frame SIL housing with 100W, a regulated output voltage and a remote ON/OFF control. These devices are suitable for PCB mounting and are protected against overload, overvoltage as well as short circuit. They have a fanless design and comply with EN62368-1, EN55032 class A as well as EN55032 class B. We offer the following types of this Mean Well series: NID100-5, NID100-12, NID100-15 and NID100-24.

  • single output
  • output: 55 to 100,8W
  • overload protection: 120 to 150%
  • operating temperature: -30 to +85°C
  • weight: 35g
NID100-15

NID100-15

113290 NID100-15 NID100-15 4711287465975 Mean Well DC/DC converter series NID100. Non-isolated DC/DC converters in an open frame SIL housing with 100W, a regulated output voltage and a remote ON/OFF control. These devices are suitable for PCB mounting and are protected against overload, overvoltage as well as short circuit. They have a fanless design and comply with EN62368-1, EN55032 class A as well as EN55032 class B. We offer the following types of this Mean Well series: NID100-5, NID100-12, NID100-15 and NID100-24. single output output: 55 to 100,8W overload protection: 120 to 150% operating temperature: -30 to +85°C weight: 35g

Specifications

manufacturer
Manufacturer's name NID100-15
GTIN 4711287465975
Input voltage [V] 20...53
Output voltage [V] 15
Efficiency [%] 97
Output current range [A] 6,5
Output voltage tolerance: [%] ±2
Ripple [mVp-p] 150
Data Sheet

Unit price

13,09 €

Volume discounts

Quantity Unit price
50 + 12,19 €

Stock: 275
Further delivery:
CW 18/2025
