NGE18I15-P1J

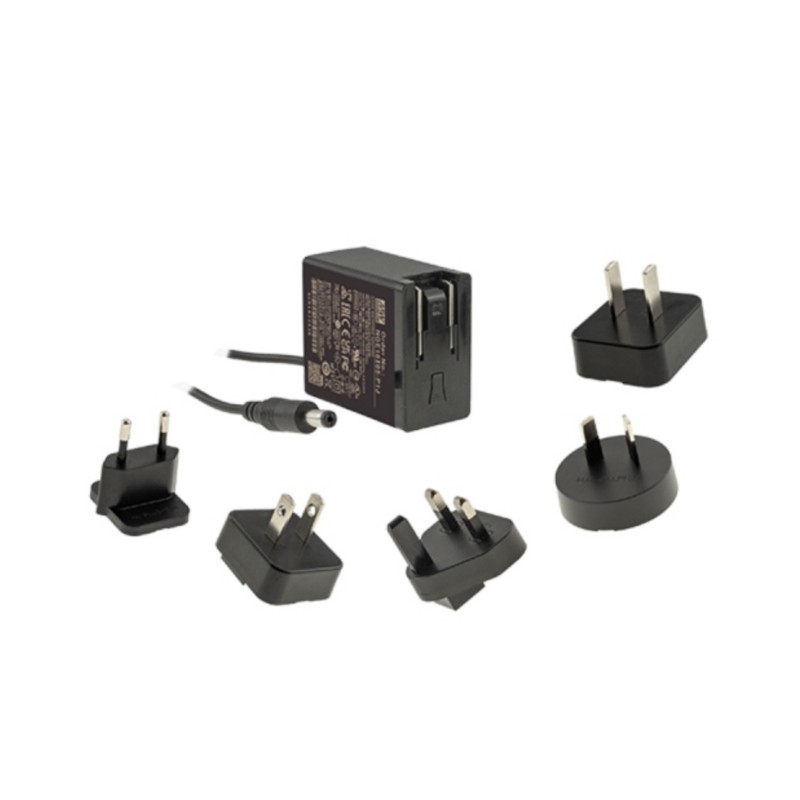

Mean Well plug-in power supply series NGE18

Plug-in switching power supplies in a plastic housing (IP21) with 18W, a universal input, a low no-load power (<0,075W), energy efficiency Level VI, protection class II and a low leakage current (<100µA). These devices are suitable for medical technology applications (2xMOPP) and are protected against overload, overvoltage as well as short circuit. They have a Europlug (NGE18E_) resp. interchangeable AC plugs (NGE18I_) and comply with EN60601-1, EN62368-1, EN61558-1, EN60335-1, EN61558-2-16, EN55032 class B as well as EN55011 class A. We offer the following types of this Mean Well series: NGE18E05-P1J, NGE18E09-P1J, NGE18E12-P1J, NGE18E15-P1J, NGE18E18-P1J, NGE18E24-P1J, NGE18I05-P1J, NGE18I09-P1J, NGE18I12-P1J, NGE18I15-P1J, NGE18I18-P1J and NGE18I24-P1J.

  • single output
  • output: 15 to 18W
  • input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
  • maximal input inrush current: 80A
  • input current: 0,25A
  • output plug: 5,5x2,1mm coaxial connector
  • operating temperature: -30 to +70°C
  • dimensions: 48x28x55mm

Matching input plugs

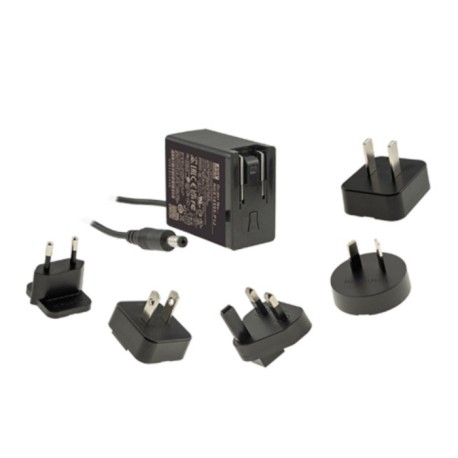

NGE18I15-P1J, Mean Well plug-in switching power supplies, 18W, for medical technology, energy efficiency Level VI, NGE18 series

NGE18I15-P1J

245511 NGE18I15-P1J NGE18I15-P1J Mean Well plug-in power supply series NGE18. Plug-in switching power supplies in a plastic housing (IP21) with 18W, a universal input, a low no-load power (&lt;0,075W), energy efficiency Level VI, protection class II and a low leakage current (&lt;100µA). These devices are suitable for medical technology applications (2xMOPP) and are protected against overload, overvoltage as well as short circuit. They have a Europlug (NGE18E_) resp. interchangeable AC plugs (NGE18I_) and comply with EN60601-1, EN62368-1, EN61558-1, EN60335-1, EN61558-2-16, EN55032 class B as well as EN55011 class A. We offer the following types of this Mean Well series: NGE18E05-P1J, NGE18E09-P1J, NGE18E12-P1J, NGE18E15-P1J, NGE18E18-P1J, NGE18E24-P1J, NGE18I05-P1J, NGE18I09-P1J, NGE18I12-P1J, NGE18I15-P1J, NGE18I18-P1J and NGE18I24-P1J. single output output: 15 to 18W input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC maximal input inrush current: 80A input current: 0,25A output plug: 5,5x2,1mm coaxial connector operating temperature: -30 to +70°C dimensions: 48x28x55mm Matching input plugs

Specifications

manufacturer
Manufacturer's name NGE18I15-P1J
Output voltage [V] 15
Efficiency [%] 87
Output current [A] 1,2
Output power [W] 18
Ripple [mVp-p] 150
Data Sheet

Unit price

9,69 €

Volume discounts

Quantity Unit price
50 + 8,99 €

Stock: 6
Further delivery:
CW 12/2025
