NDR-75-24

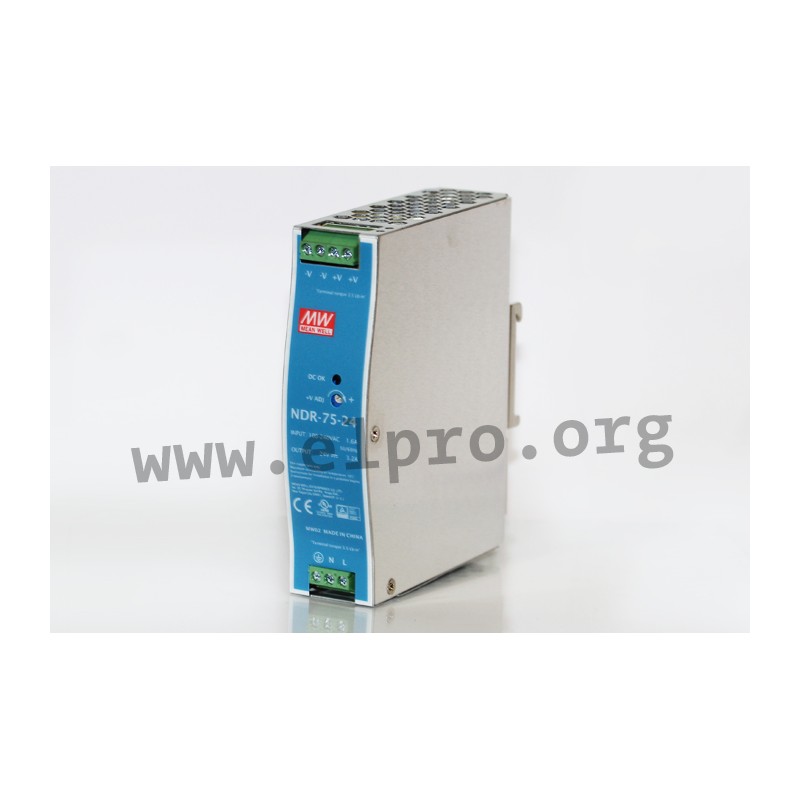

Mean Well DIN rail power supply series NDR-75

Switching power supplies in an enclosed housing with 75W, a universal input, an LED indicator and screw terminals (touch guard). These devices are suitable for DIN rail mounting and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fanless design and comply with EN62368-1, EN61000-6-2, EN50082-2, EN55032 class B, EN61204-3 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: NDR-75-12, NDR-75-24 and NDR-75-48.

  • single output
  • output: 75,6 to 76,8W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 35A
  • leakage current: <1mA
  • output voltage adjustment: +12%
  • overload protection: 105 to 130%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -20 to +70°C
  • weight: 510g

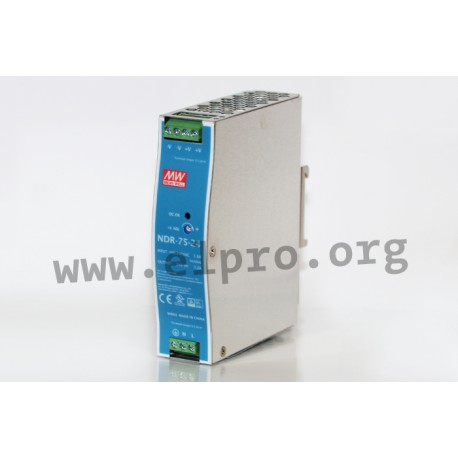

Meanwell NDR-75 series

NDR-75-24

44932 NDR-75-24 NDR-75-24 4711287422237 Mean Well DIN rail power supply series NDR-75. Switching power supplies in an enclosed housing with 75W, a universal input, an LED indicator and screw terminals (touch guard). These devices are suitable for DIN rail mounting and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fanless design and comply with EN62368-1, EN61000-6-2, EN50082-2, EN55032 class B, EN61204-3 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: NDR-75-12, NDR-75-24 and NDR-75-48. single output output: 75,6 to 76,8W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 35A leakage current: &lt;1mA output voltage adjustment: +12% overload protection: 105 to 130% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -20 to +70°C weight: 510g

Specifications

manufacturer
Manufacturer's name NDR-75-24
GTIN 4711287422237
Output voltage [V] 24
Phase 2 phase
Efficiency [%] 88
Output current range [A] 0...3,2
Output voltage tolerance: [%] 1
Output power [W] 76,8
Ripple [mVp-p] 120
