NDR-480-48

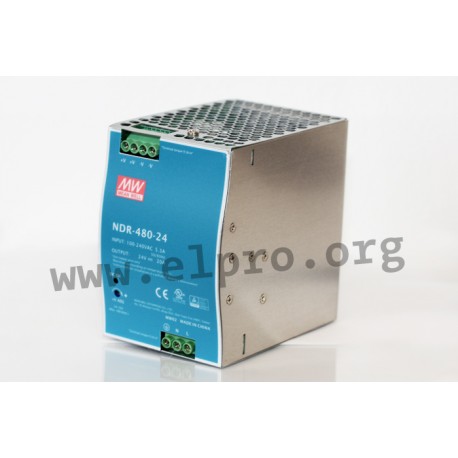

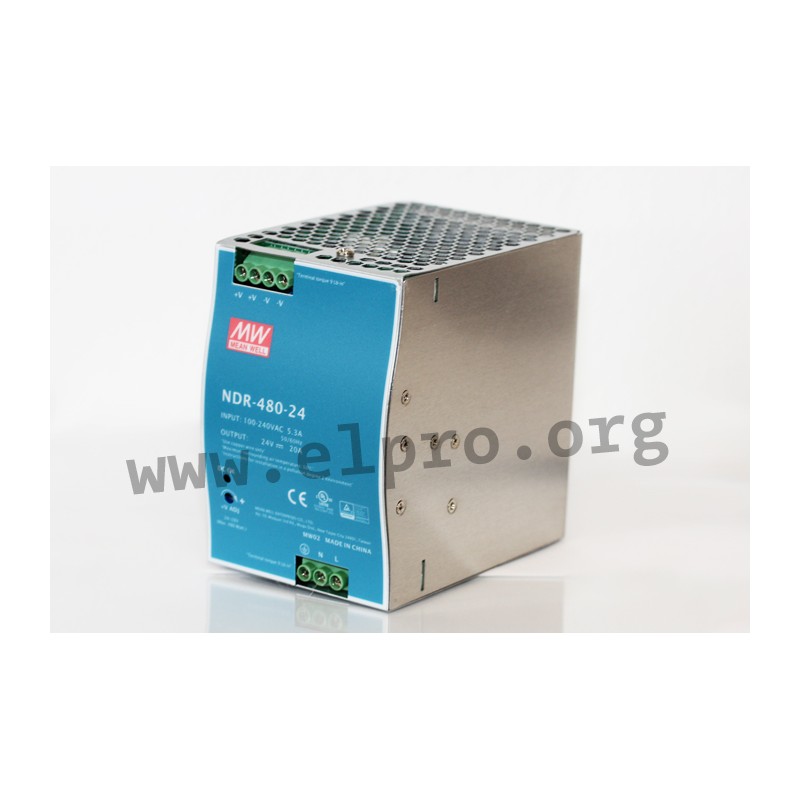

Mean Well DIN rail power supply series NDR-480

Switching power supplies with a capacity of 480W, screw terminals (touch guard), universal input and an LED indicator are available for DIN rail mounting from Mean Well. These devices feature overload, overvoltage and short circuit protection features as well as a fanless design. They comply with EN50082-2, EN61000-6-2, EN62368-1, EN55032 standards along with class B of both EN61204-3 and EN61000-3-2/EN61000/-33 standards. The Mean Well DIN rail switching power supplies provide reliable performance in various applications while ensuring compliance to safety standards such as the aforementioned ones. We offer the following types of this Mean Well series: NDR-480-24 and NDR-480-48.
  • single output
  • output: 480W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 35A
  • leakage current: <2mA
  • output voltage adjustment: +15%
  • overload protection: 105 to 130%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -20 to +70°C
  • weight: 1500g
Mean Well NDR-480 series

NDR-480-48

104821 NDR-480-48 NDR-480-48 4711287422312 Mean Well DIN rail power supply series NDR-480. Switching power supplies with a capacity of 480W, screw terminals (touch guard), universal input and an LED indicator are available for DIN rail mounting from Mean Well. These devices feature overload, overvoltage and short circuit protection features as well as a fanless design. They comply with EN50082-2, EN61000-6-2, EN62368-1, EN55032 standards along with class B of both EN61204-3 and EN61000-3-2/EN61000/-33 standards. The Mean Well DIN rail switching power supplies provide reliable performance in various applications while ensuring compliance to safety standards such as the aforementioned ones. We offer the following types of this Mean Well series: NDR-480-24 and NDR-480-48. single output output: 480W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 35A leakage current: &lt;2mA output voltage adjustment: +15% overload protection: 105 to 130% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -20 to +70°C weight: 1500g

Specifications

manufacturer
Manufacturer's name NDR-480-48
GTIN 4711287422312
Output voltage [V] 48
Efficiency [%] 92,5
Output current [A] 0...10
Output voltage tolerance: [%] 1
Output power [W] 480
Ripple [mVp-p] 150
Data Sheet

Unit price

77,69 €

Volume discounts

Quantity Unit price
50 + 75,69 €

Stock: 897
Next incoming goods:
CW 03/2025
504 units

Further delivery:
CW 09/2025
