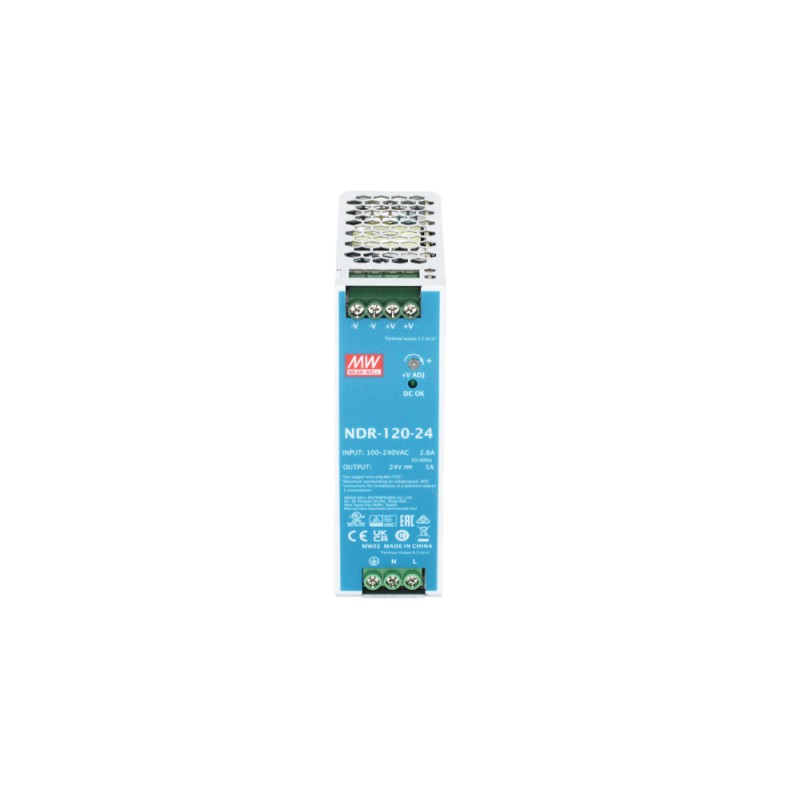

NDR-120-24

Mean Well DIN rail power supply series NDR-120

Switching power supplies with 120W, a universal input and an LED indicator for DC OK. These devices are suitable for DIN rail mounting and are protected against overload (auto recovery), overvoltage as well as short circuit. They have touch-protected screw terminals and comply with UL508, EN61000-6-2, EN50082-2, EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: NDR-120-12, NDR-120-24 and NDR-120-48.

  • single output
  • output: 120W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 35A
  • leakage current: <1mA
  • output voltage adjustment: +15%
  • overload protection: 105 to 130%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -20 to +70°C
  • weight: 600g
Mean Well NDR-120 series

NDR-120-24

45035 NDR-120-24 NDR-120-24 4711287422268 Mean Well DIN rail power supply series&nbsp;NDR-120. Switching power supplies with 120W, a universal input and an LED indicator for DC OK. These&nbsp;devices are suitable for DIN rail mounting and are protected against overload (auto recovery), overvoltage as well as short circuit. They have touch-protected screw terminals and comply with&nbsp;UL508, EN61000-6-2, EN50082-2,&nbsp;EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series:&nbsp;NDR-120-12, NDR-120-24 and NDR-120-48. single output output: 120W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 35A leakage current: &lt;1mA output voltage adjustment: +15% overload protection: 105 to 130% withstand voltage I/P-O/P: 3000V AC withstand voltage&nbsp;I/P-FG: 2000V AC withstand voltage&nbsp;O/P-FG: 500V AC operating temperature: -20 to +70&deg;C weight: 600g

Specifications

manufacturer
Manufacturer's name NDR-120-24
GTIN 4711287422268
Output voltage [V] 24
Efficiency [%] 88
Output current range [A] 0...5
Output voltage tolerance: [%] 1
Output power [W] 120
Ripple [mVp-p] 120
Data Sheet

Unit price

22,29 €

Volume discounts

Quantity Unit price
50 + 20,89 €

Stock: 14034
Next incoming goods:
CW 46/2024
5700 units

Further delivery:
CW 09/2025
