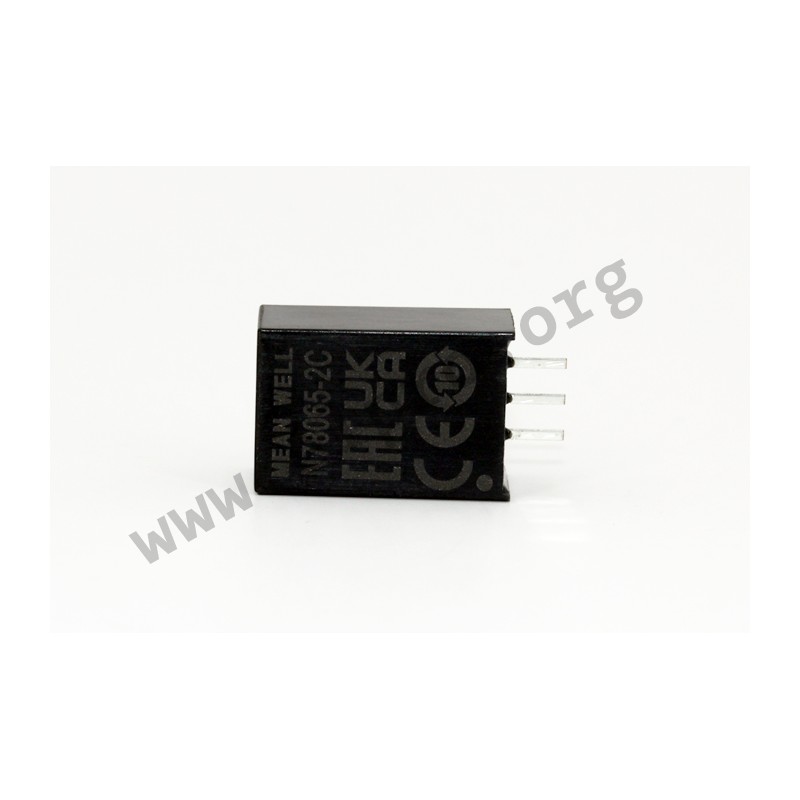

N7803-2C

Mean Well DC/DC converters series N78-2

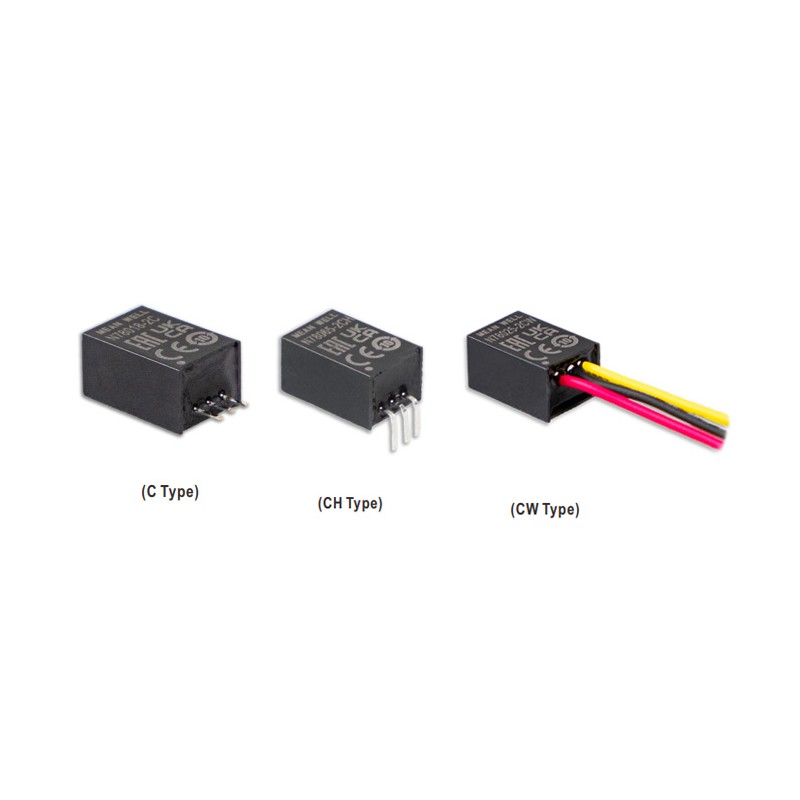

DC/DC switching regulations in a SIP3 housing with 2A. These devices are suitable for negative outputs, the pin-out is compatible with LM78xx/LM79xx regulators, and they do not need a seperate cooling body. They have a wide input voltage range of up to 32V, as well as they have a low ripple quality and make minimal noise. These converters are available in the following types: N78_-2C: THT, with a vertical application; N78_-2CH: THT, with a horizontal application; and N78_-2CW: housing type with wires. We offer various types of this Mean Well series.

  • single output
  • output current: 2A
  • maximal ripple quality: 100mVpp
  • operating temperature: -40 to +85°C
  • weight: 4g, respectively. 5.5g (N78_-2CW)

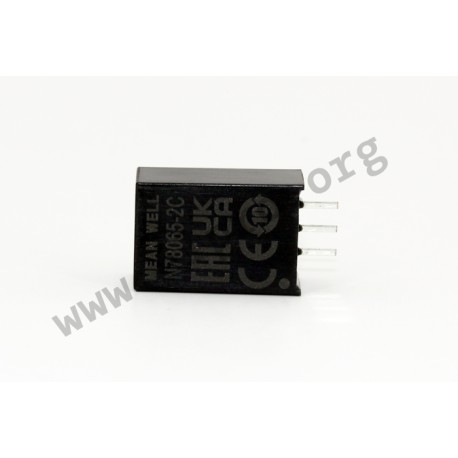

N7803-2C, Mean Well DC/DC converter modules, 2A, SIP3, N78-2 series

N7803-2C

248564 N7803-2C N7803-2C Mean Well DC/DC converters series N78-2. DC/DC switching regulations in a SIP3 housing with 2A. These devices are suitable for negative outputs, the pin-out is compatible with LM78xx/LM79xx regulators, and they do not need a seperate cooling body. They have a wide input voltage range of up to 32V, as well as they have a low ripple quality and make minimal noise. These converters are available in the following types: N78_-2C: THT, with a vertical application; N78_-2CH: THT, with a horizontal application; and N78_-2CW: housing type with wires. We offer various types of this Mean Well series. single output output current: 2A maximal ripple quality: 100mVpp operating temperature: -40 to +85°C weight: 4g, respectively. 5.5g (N78_-2CW)

Specifications

manufacturer
Manufacturer's name N7803-2C
Output voltage [V] 3,3
Input voltage range [V] 6...32
Efficiency [%] 89
Output current [A] 2
Data Sheet

Unit price

4,59 €

Stock: 0
Next incoming goods:
CW 05/2025
69 units

Further delivery:
CW 12/2025
