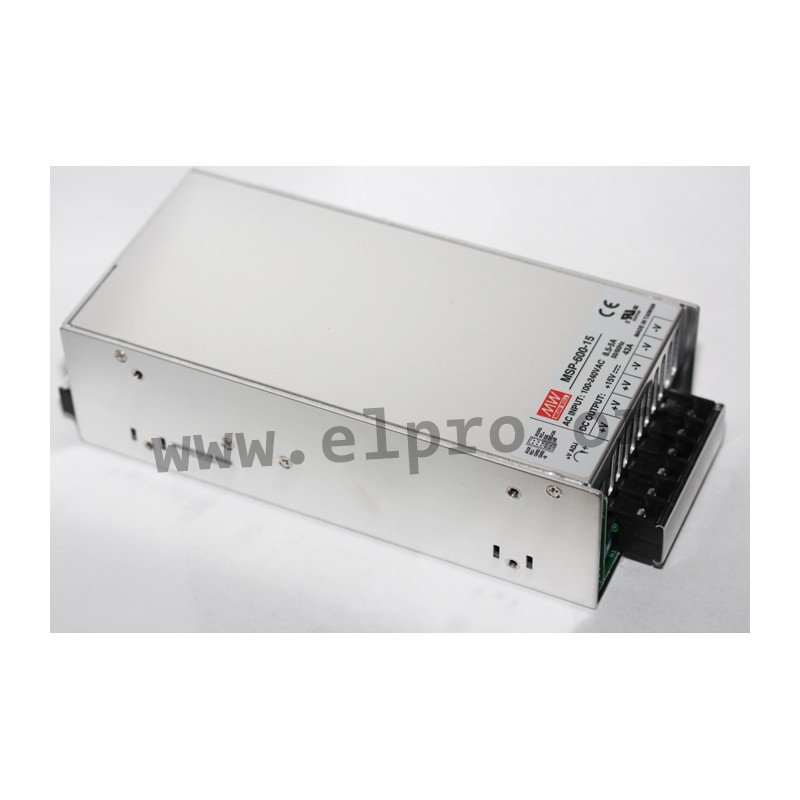

MSP-600-12

Mean Well power supply series MSP-600

Switching power supplies in an enclosed housing with 600W, screw terminals, a fan, a parallel function (3+1), a built-in auxiliary power (standby 5V/0,3A), a built-in remote sense function, a DC OK signal, a built-in remote ON/OFF control and a universal input. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for medical applications (MOOP level) and comply with EN60601-1, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: MSP-600-3.3, MSP-600-5, MSP-600-7.5, MSP-600-12, MSP-600-15, MSP-600-24, MSP-600-36 and MSP-600-48.

  • single output
  • output: 396 to 648W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 80A
  • leakage current: <300µA (earth) / <100µA (touch)
  • output voltage adjustment: ±15%
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 4000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +70°C
  • weight: 1570g

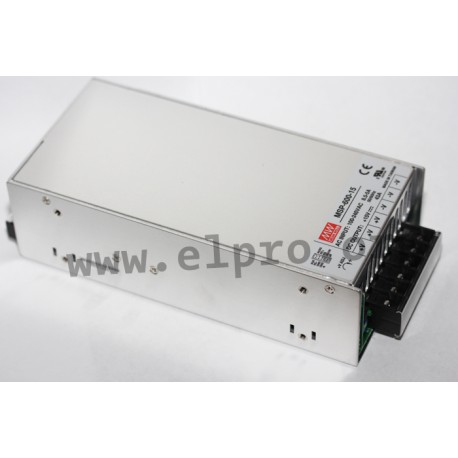

series MSP-600 by Meanwell

MSP-600-12

43741 MSP-600-12 MSP-600-12 4711287437606 Mean Well power supply series&nbsp;MSP-600. Switching power supplies in an enclosed housing with 600W, screw terminals, a fan, a parallel function (3+1), a&nbsp;built-in auxiliary power (standby 5V/0,3A), a built-in remote&nbsp;sense function, a DC OK signal, a built-in remote ON/OFF control and a universal input. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for medical applications (MOOP level) and comply with&nbsp;EN60601-1, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series:&nbsp;MSP-600-3.3, MSP-600-5, MSP-600-7.5, MSP-600-12, MSP-600-15, MSP-600-24, MSP-600-36 and MSP-600-48. single output output: 396 to 648W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 80A leakage current: &lt;300&micro;A (earth) / &lt;100&micro;A (touch) output voltage adjustment:&nbsp;&plusmn;15% overload protection: 105 to 135% withstand voltage I/P-O/P: 4000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -40 to +70&deg;C weight: 1570g

Specifications

manufacturer
Manufacturer's name MSP-600-12
GTIN 4711287437606
Output voltage [V] 12
Phase 2 phase
Efficiency [%] 88
Output current range [A] 0...53
Output voltage tolerance: [%] 1
Output power [W] 636
Ripple [mVp-p] 120
Data Sheet

Unit price

160,69 €

Volume discounts

Quantity Unit price
50 + 157,99 €

Stock: 4
Further delivery:
CW 12/2025
